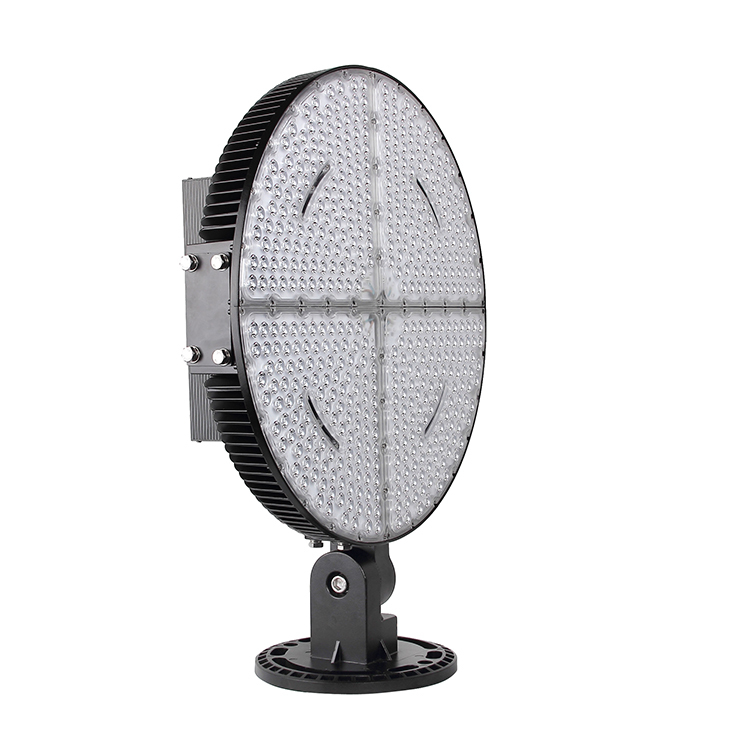

high power led flood light for stadium lighting football stadium miniature led boxing stadium light
Product Overviews
Using high-brightness LED integrated light source, with high-efficiency constant current drive power; LED components are all sealed, waterproof and dustproof, without internal cleaning and maintenance; specially designed light distribution elements for each type of lamp, give full play to the performance of the lamp;
Applicable stadiums: basketball courts, football courts, badminton courts, tennis courts, etc.;
Specifications
| Wattage | 400W | 500W | 600W | 750W | 800W | 1000W | 1200W |
| Luminous Flux | 64000lm | 80000lm | 96000lm | 120000lm | 128000lm | 160000lm | 192000lm |
| Color Temperature | 2700K~6500K | ||||||
| Beam Angle | 10°/25°/45°/60° | ||||||
| Input Voltage | AC100-277V,AC200-480,50/60Hz | ||||||
| LED Brand | LUMILEDS 5050/CREE XTE | ||||||
| Power Supply | Meanwell | ||||||
| Life Hours | 50,000 | ||||||
| CRI | Ra>70 | ||||||
| PF | >0.9 | ||||||
| IP Rating | IP67 | ||||||
| Net weight | 16KG | ||||||
Details
LED Type: CREE 5050 LEDs
LED Efficacy: >170lm/W
Lamp Efficacy: >150lm/W
CCT Options: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K
CRI: ≥75Ra
LED Life: >125,000hrs
Beam Angle: 30°/60°/90°
PF: >0.97
Power Supply Efficiency: >92%
THDi: ≤10%
Surge Protection: 10KV
Control: 0-10V Dimming , Photocell, Dali Dimming , Intellectual Control Optional
Material: Aluminum and PC Optical Lens
Color / Finish: Black/ Light Grey (Power Coating)
Protection Grade: IP66
IK Grade: IK10
Warranty: 5 years
Applications
LED stadium light Widely use in airport, seaport, sports lighting and other high mast lighting. It have professional lighting distribution, easy to install.
