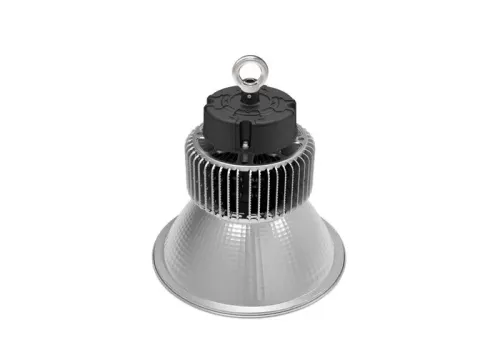

High Power LED Industrial High Bay Lights 3030SMD Chips ETL TUV SAA Approved

LED Industrial High Bay Lights 3030SMD Chips ETL TUV SAA Approved
  • Specification:
    Item Type: LED High Bay Lights
    Watt: 100W 150W 200W
    Luminous Efficiency: 130-150Lm/W
    Power: Meanwell Or SOSEN
Description
Description

High Power LED Industrial High Bay Lights 3030SMD Chips ETL TUV SAA Approved





Featurs



1. Using high power ceramic multi-chip LED.
2. High quality aluminium body,patented cooling body design,anodizing tensile reflector ,acrylic light source enclosure.
3. The unique thermal design and the power supply box is a perfect combination,reasonably using movement of air from all directions, effectively improving heat conduation, thereby reducing the lamp body temperature, so that LED could be in the best working environment in order to ensure light and power supply life.
4. With constant current constant voltage control circuit,applied voltage width(AC90V-305V),
overcome the light instability because of no using ballast (Using ballast create generation grid and noise pollution which make the light instability),avoiding bringing stimulus and fatigue to eyes in working.
5. Green light source, do not contain lead, mercury and other pollution elements,
6. Pure aluminum reflector sharply improve the reflect rate, and ensure the output lumen flux.
7. Comparing with traditional HPS or Mercury high bay lights, our LED high bay lights save 50% - 65% electricity cost.





Specification



Series name H series High bay LED light
Product name LED high bay light
Electrical Voltage/V AC 85-305V
parameter Rated power/W 100W 150W 200W
  Frequency/HZ 50/60HZ
  Power factor/PF >0.9
Optical Rated lumen/LM 130lm/W
parameter Colour temperature/K 2700-3000K,6000-6400K
  Beam angle/γ 25° 60° 90° 100° 110°
  CRI/Ra 80
  luminous flux maintenance factor at the end of normal life 90%
  1 standard Light color warm white/cool white
Material LED type integrated
specification Driver type Input voltage:AC85-265V,Output voltage:30-36V
  Radiator Fins
  Lamp base Suspension or E40
Others IP grade 54
Lifespan 50000H
Work temperature -25°-45°
Storage temperature -45°-65°
Energy conservation grade A++





Details



Fins thermal design








25° 60° 90° 100° 110° Reflector



Application



Factory, Warehouse, Coliseum, Shops, Supermarket, Shopping mall,Gas station and other illumination at buildings and public area





Package



Standard packing, Contains shockproof foam.

Finished product size than ordinary high bay lamps to reduce 64%, saving transportation costs.
