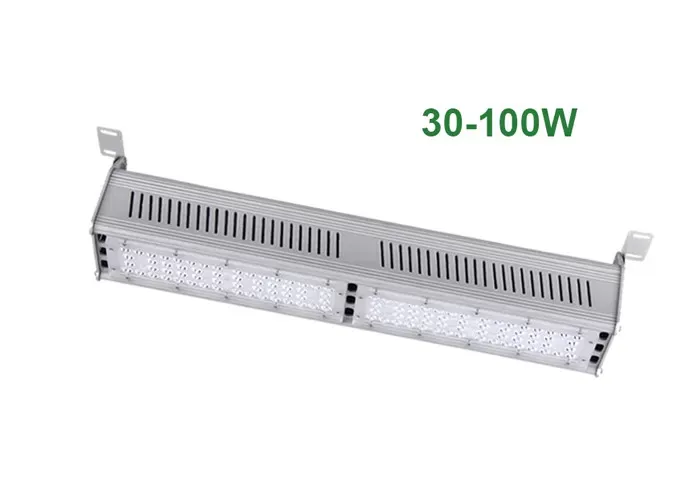

Indoor And Outdoor 100w 150w LED Linear High Bay Light For Workshop Meanwell Driver

LED Linear High Bay Light For Workshop Meanwell Driver
  • Specification:
    Watt: 100W 150W
    Input Voltage: AC100-277V
    Lumens: 12000lm 17000lm
    LED Source: 3030 Chips
    Driver: Meanwell HLG
    Application: Warehouse Industrial Lighting
Description
Description

Indoor And Outdoor 100w 150w LED Linear High Bay Light For Workshop Meanwell Driver







Features



1, Innovative design with good looking.
2, The rugged housing, special surface treatment to resist Pressure/ wear/ corrosion, always
like new.
3, High thermal conductive extruded aluminum has a good heat dissipation and prolong the
lifespan of whole light.
4, 60° X 60° , 90° x 90°, 62° x 144° generating rectangular lighting pattern. It's suitable for
height ceiling and warehouse, Shelves and aisles have adequate illumination.
5, Adopt high quality Mean Well Driver and Edison LED Chip, small light decay, long
service life.
6, CRI>80Ra, PF>0.95. High performance.
7, IP65 design, suitable for indoor and outdoor.
8, One pair of 1M Suspension Cable and a 1.5M AC power cord are included for easy installation.Adjustable ceiling mount brackets are also available as accessories.
9, 0~10v dimming is availabe.
10, Ideal to replacement for 800W MH /400W HPS/ML lamp.





Specification



Brand MINSENS
Key Words LED industrial Linear High Bay Light
Power 100W 150W
Driver Supply Meanwell driver
Voltage AC90~277V
PF >0.95
Lumen(LM) 12000lm 17000lm
CRI >80Ra
CCT 2700k~6500k
LED type SMD3030
IP rate IP65
Beam angle 60° X 60° , 90° X 90°, 62° X 144°
Working Temperature -20℃~+55℃
Unit Size L1140*W122*H90mm
Weight 6.64 kgs





Details



1. Alluminum die-cast housing with efficient heat dissipation design.
2. Powder coating grey,anti ageing,corrosion resistant,electrostatic and spray processing.
3. High efficiency LED chips- 3030,CRI>80Ra,130lumen per wattage.
4. PC lens with multiple beam angles 30°/60°/90°/120*60°/30*70°/80*140°
5. Built-in replaceable water-proof LED driver with APFC,THD<20%,output short circuit protection.
6. Surge voltage protection and over voltage protection,IP65 water-proof light
7. Five years warranty for the whole lamp,dust-proof, moisture-proof.
8. Versatile, trouble-free installation: linkable, rotating, suspended, ceiling.










Applications



1. Workshop, Warehouse,Industrial place, Grocery and Storeroom
2. Bus Station, Airport, Railway Station, Hospital and Gymnasiums
3. Parking Lot, Garage, Gas Station
4. Greenhouse Cultivation and other Canopy





Installation



1.To fix the sleeve nuts to ceiling by stainless steel screw;
2.Hanging Linear LED High Bay lights ready with stainless steel rope and sleeve screw;
3.Sleeve nuts and sleeve screw tightened;
4.The installation is complete.



Packaging



Standard export packaging or customized according to customer requirements
