Industrial LED Linear High Bay Lighting Waterproof IP65 50W 100W 150W 200w PIR Sensor Dimmable

Industrial LED Linear High Bay
  • Specification:
    Input Voltage: AC100-240/100-277V
    LED Source: 3030 Chips
    Watt: 140Lm/W
    Power Range: 50W 100W 150W 200W
    Control Method: PIR Sensor Or Microwave Sensor
    Warranty: 5 Years Warranty
Description
Description

Industrial LED Linear High Bay Lighting Waterproof IP65 50W 100W 150W 200w PIR Sensor Dimmable





Product Description



1. 30° /90°/120°/30*70°/135*70°/150*70° beam angle, meet different using enviornment.
2. Self-assembly possible, easy inventory and cost effective maintenance.

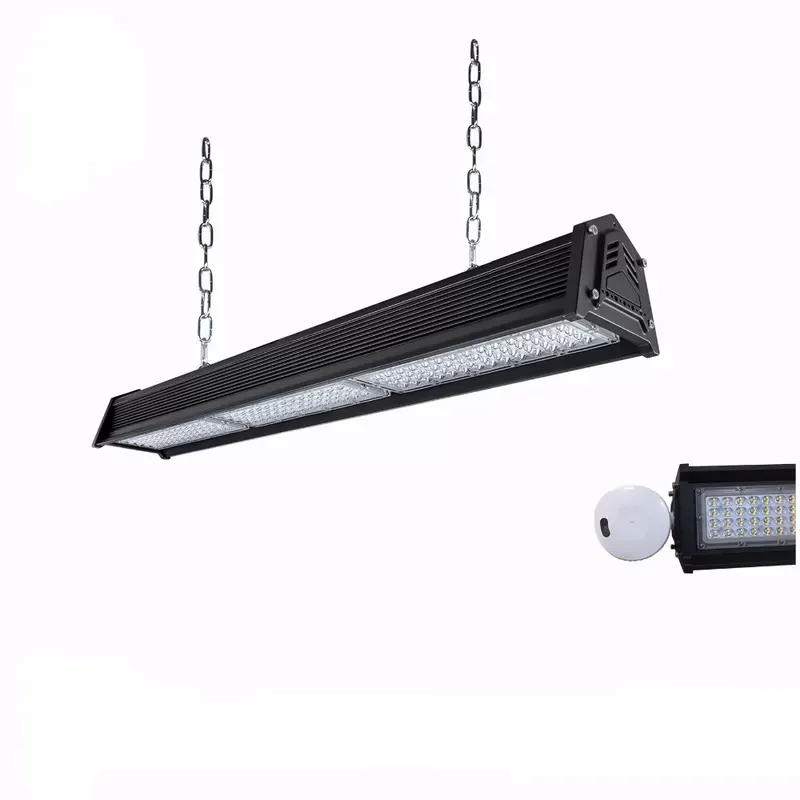

3. Different installation solution, such as Chain installation / wall mounted.
4. MEANWELL brand power supply, 5 to 7 Years warranty.
5. Dirver inside design, IP65 protection, suitable for any installation environment.
6. Module design, different length and wideth, from 60W to 900W is okay.
7. Using BrandLED with LM80, LED efficacy above 135Lm/w.





Specification



Model MS-LHA-50 MS-LHA-100 MS-LHA-150 MS-LHA-200
Input Voltage 100V-277V
Frequency 50-60Hz
Power Rating 50W 100W 150W 200W
Power Factor >0.95
Operation Current 0.25A 0.237A 0.5A 0.63A
Working Temp -30-50℃
Total Harmonic Distortion <15%
Lamp Luminous 140LM/W
Luminous Flux 7000LM 14000LM 21000LM 28000LM
Power Efficiency >93%
CRI Ra>80
Color Temp 3000k/4000k/5000k
Driver source Mean well/SOSEN
LED source Nichia/OSRAM
Dimension 90*285mm 90*543mm 90*801mm 90*1060mm
Luminaire Net Weight 3.3kg 4.7kg 5.7kg 6.9kg
Ingress Protection IP65
Beam Angle 30X70 60X90 40X130 120
Fixture Color Black/ Red
Material Aluminum Alloy and PC/Glass
Lifespan LM80 >50000hrs
Energy Saving >60% saving From Conventional lighting
Intelligent control Non Dimmable/Dimmable/Microwave/PIR
Certification CE.LVD, EMC, ROHS
Warranty 5 years





Details



LED Chip and Lens
LED: SMD3030 led, LM-80 standard, High lumen 110-140lm/w
Lens: PC material, 90/ 40*70/ 70*145 degree beam angle

Driver
Original Taiwan Meanwell HLG series driver,5 years warranty,IP65 waterproof

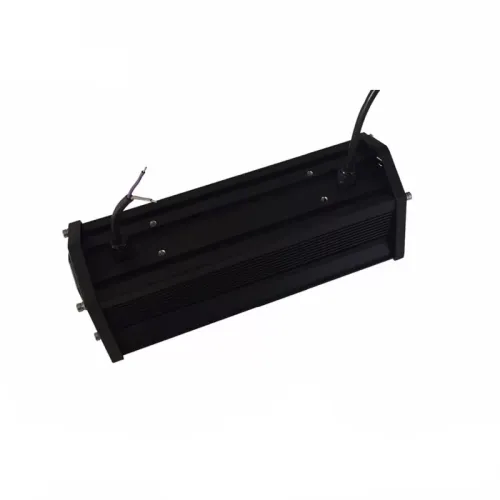

Heatsink
The housing is extrusion aluminum production process,better heat dissipating performance,and more slim,more light,more design popular,much more LED chip quantity to make make light higher lumen effeciency. slim and light design housing could save your shipping space and cost.

Perfect lighting cover
1, This is lighting distribution for your kindly reference
2, Our Linear high bay light with 90°/145*70°/100*65°
beam angles, meet different using enviornment.









Installation





Applications



Led Linear High Bay Light can be widely used in industrial places, such as warehouse / supermarket / Stadium / Shopping mall and so on.




Factory







Packaging



Standard export packaging or customized according to customer requirements
