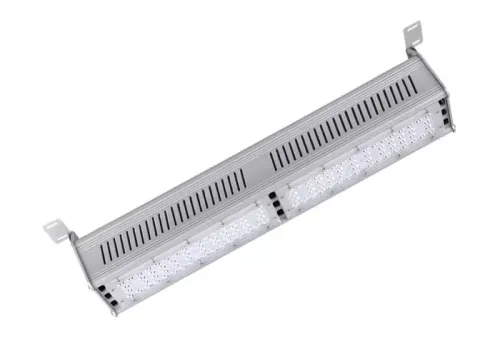

Industrial Low Bay Lighting Design Fixtures 50w LED Linear High Bay Light For Warehouse

LED Linear High Bay Light For Warehouse
  • Specification:
    Watt: 50W
    Input Voltage: AC100-277V
    Lumens: 5200Lm
    LED Source: 3030 Chips
    Power: 30-500W Optional
    Beam Angle: 30*70 Degree
    CRI: 70-80 Ra
Description
Description

Industrial Low Bay Lighting Design Fixtures 50w LED Linear High Bay Light For Warehouse





Features



1. 30°,60°, 90°, 70°*30°,90°*60°,140°*80° beam angle, meet different using enviornment.
2. Patent Design, different installation solution, such as Lifting & Surface Mounted.
3. MEANWELL brand power supply, global 3 to 5 Years warranty
4. Dirver inside design, IP65 protection, suitable for any installation environment
5. Module design, different length and wideth, from 50W to 500W is okay.
6. Using NICHIA LED, with LM80 and TM21 Passed, LED efficacy above 115Lm/w

7. IP65 water-proof.
8. Just a few screws, Very Easy Installation, help save much Labor Cost.
9. Very Light Weight, help save much freight cost.
10.Private tooling and compact design.
11.Various Housing colors:Black+Red, Black+White, All White.
12. Installation types: cable grippers hanging; mobile ceiling mount; fixed ceiling mount.





Specification



Wattage 50W
Lamp Luminous Flux (lm) 5000-5500lm
Item Type 50w LED Linear High Bay Light For Warehouse
Light Source 3030 chips
Beam angle 30°,60°, 90°, 70°*30°, 90°*60°,140°*80°
Warranty 5 Years
Power factor >0.95
Led driver Meanwell driver(Internal)
Installation Suspending / Surface mounted
Input Voltage 100-277/347VAC 50/60Hz
CRI >80
Working Lifetime 50000Hrs
Working Temperature -4-122℉(-20-50℃)
Lamp Body Material Pure Aluminum Housing
IP value IP65
CCT Warm White, Neutral White, Cool White, (2700-6500K)
Lamp Luminous Efficiency (lm/w) 130lm/w+10%
Certification DLC Premium UL/ETL/TUV /SAA





Details



Safety and Reliability
1. DLC Energy star ETL UL SAA TUV CE RoHS Approval.
2. Directly install with 100V, 120V,100-240V, 220V 230V 240V,100- 277V.
3. 100% High-Pot test of AC3500v for all tubes.
4. As long as 72h aging test with automatic switching before each shipment.
5. 100% vibratility test will make sure the fastness of the assembling.
6. 100% resist voltage test of AC85-305V.
7. More than 95% lumen maintenance based on the 6000h LM-80-08 test.
8. 40°C to 50°C(-40°F to 122°F) extreme environment compliant.









Applications



Led Linear High Bay Light can be widely used in industrial places, such as warehouse/supermarket/Stadium/Shopping mall and so on.







Packaging



Standard export packaging or customized according to customer requirements
