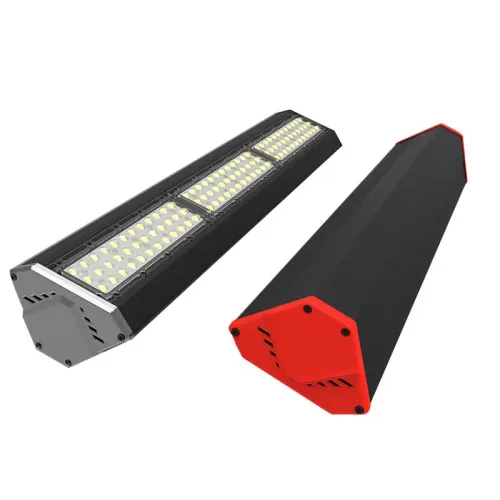

Industrial Warehouse Using 140Lm Per Watt 50w To 200w Led Linear High Bay Light Fixture

Led Linear High Bay Light Fixture
  • Specification:
    Item Type: High Bay Lights
    Input Voltage: AC90-305V
    Lumens: 140Lm/W
    LED Source: SMD3030 OSRAM
    Beam Angle: 30° 60° 90° 30*70°60*90° 60*120°70*140°
    Warranty: 5 Years Warranty
Description
Description

Industrial Warehouse Using 140Lm Per Watt 50w To 200w Led Linear High Bay Light Fixture





The 100W LED Linear High Bay fixture, 14000 lumens, DLC listed 3000K 4000K 5000K 5700K delivers a bright, natural daylight; essential for dome lighting applications where the brightest, cleanest light is necessary with a simple retrofit, replacing a 300W metal halide fixture.



MS 100W LED Linear High Bay, 3000-5700K, 14000 Lumen, 300W MH Equivalent Features



1. 5700K color temperature that provides a vibrant and alert cool white light that is ideal for commercial, industrial, and institutional applications
2. Aluminum structure prevents rust and corrosion longer than typical metal halide or incandescent bulbs
3. LED lighting will not flicker and turns on instantly
4. Eco-friendly with no mercury, UV, or IR radiation emission
5. Operating temperature ranges from -30°F to 60°F making it ideal for indoor or damp area use; even in extreme weather
6. IP65 rated for damp locations, dust-proof, and explosion-proof
7. Ideal uses are for: parking garages, warehouses, walkways, tunnel lighitng, gas station, advertisment, factory lighting, and more
8. Includes high quality Meanwell driver
9. 50,000 hour lifetime means 17+ years of operation at 12 hours a day, 7 days a week



Specification





Products Name 100W LED Warehouse Linear High Bay Light
Wattage 100/120/150/200W
Voltage Available 100-277VAC/347/480VAC
Lumens 14000 lumens
LED Driver Meanwell
LED Chip Lumileds SMD3030
Beam Angle 30/60/90° ; 30*70°; 60*90°
Color Temperature 3000-6500K
IP Rating IP65
Certificates ETL cETL DLC CE Rohs
Warranty 5 Years
Accessories 1. Microwave montion sensor;
2. Intergrated daylight & microwave sensor





Details



1. SMD3030 LED, high luminous flux, high and stable quality, energy saving obviously
2. Meanwell or Inventronics LED driver used, Working voltage: 90-305VAC
3. Use the most powerful and efficiency heat sink, the completed LED lamp can work up to 50,000 hours
4. Hollow design, convection cooling, promote to transfer the heat of LED chips to the massive fins, greatly lower down the temperature of light source, extending life span.
5. Aluminum alloy housing processed with painting, solid in structure and withstand the corrosion.
6. Heat sink of difference sizes from 50w-300w, according to varied lighting requirement.
7. Stable: High shock & vibration resistance, No flaring, no UV & IR
8. Protection rate: IP65
9. 13 flexible position makes project angle can be adjusted within 216°
10. Reflector with 60/90/120/70*140 degree optional, high transparent rate >90%.
11. Warranty: 3/5 years, CE&RoHS certificates





Applications



Commercial establishments
Factories / offices
super-markets
Residential / Institution buildings
Government lighting engineering, airport, subway, elevated overpass, billboard stadium
Building external walls landmarks such as the landscape lighting
Other area lighting




Factory





Packaging



Standard export packaging or customized according to customer requirements
