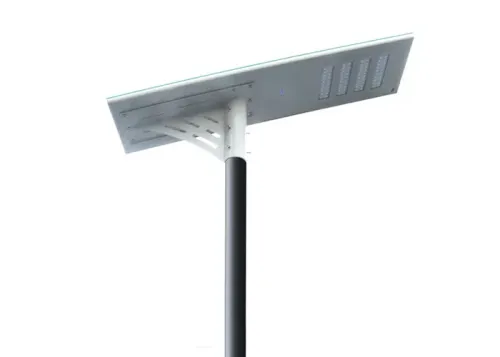

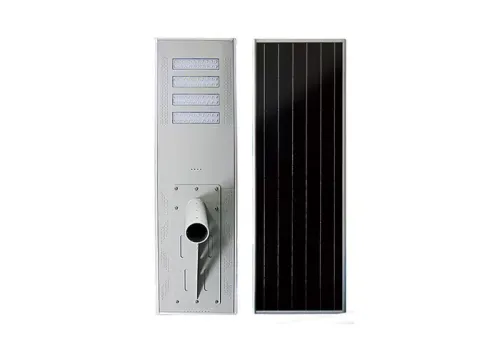

Integrated All In One Solar Street Light 100W With Built-In Lithium Battery

Integrated All In One Solar Street Light 100W, Lithium Battery
  • Product:
    Integrated Solar LED Street Light
Description
Description

Integrated All In One Solar Street Light 100W With Built-In Lithium Battery





Features



1. All in One solar steer light could not work without sunshine, please select the suitable model according to the local sunshine radiation and the annual total radiation. We suggest use the both AC and DC charging model in those places where lack of sunshine or have long-time rainy days.

2. All in One solar street light adopts the long life Lithium battery for storing energy, charging temperature at day time is between: 0℃~+60℃, when temperature goes lower than 0℃, the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0℃. Discharging temperature at night is between: -20℃~+60℃, any ambient beyond will take damage to the battery. So please check these factors while selecting the street light.

3. Battery of the All in One solar street light can be stored for 6 months long after fully charged.Therefore please examine and charge it periodically after long time transportation or storage to prevent damaging.

4. When install the lights in Northern Hemisphere, please adjust the solar panel to the South as much as possible to collect maximum sunshine radiation, while install them in Southern Hemisphere, By the same token, keep solar panel to north. At the same time please keep it away form any shadow of houses, trees etc.

5. Keep clear of the surface of the All in One solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.

6. All in One solar street light have got the standard of IP65. The vents on the surface is designed for radiating. The materials are made of aluminum alloy which can survive in the environment of seaside and desert.

7. The knob of the fuse is at the left rear end of the light, please insert the fuse while using. By the way, there is one piece of fuse more as backup(If not fuse, then it is switch, just turn the switch)LED status indicate





Specifications



Integrated Solar Street Light(100W) Model:100W
Solar panel Max Power 36V160W(polycrystal silicon)
Life Time 25 years
Battery Type lithium battery 12V52AH
Life Time 5 years
Led lamp(without sensor) Max Power 30V 100W
Led chip brand Bridgelux from USA with high brightness
Lumen(LM) 10000-11000lm
Life Time 50000 hours
Lamps material of main Aluminium Alloy
Charge time 6 hours(by sun)
Discharge time more than 10 hours(full power)
more than 24 hours (half power)
Certificate CE/ROHS/IP65
Warranty period 3years
Packing& Weight Product/Packing Size 1470*673*43mm,640*400*342mm
Product/Packing Weight 45KG/49KG
Carton Size 1570*740*120mm( lamp body)685*455*375mm(The base + accessories)
Quantity/Carton 1 sets/carton
GW.for Carton 49KG





Details






Applications



This product can be installed in the garden, residential area, courtyard, road, mine area, parking area, etc. the batteries provide energy for LED light, and the solar panel charges for batteries.





Packaging



Standard export packaging or customized according to customer requirements.
