Integrated Led Street Lights Solar Powered With Motion Sensor Outdoor Wall Lamp

Integrated Led Street Lights
  • Product:
    Integrated Led Street Lights
Description
Description


Integrated Led Street Lights Solar Powered With Motion Sensor Outdoor Wall Lamp

2019 new arrival Solar street Light is an integration of solar panel, LED light, Lithium battery, Controller, Constant current drives and lighting housing. Combined the tecnologies of potoelectric effect.constant current control, micro controller, infrared motion sensor, remote controller, and mutiple pratical con-trol technologies. Able to illuminate the environment with radiant light.




Features

The design of integrated solar street light/garden light absorbs the inspiration and energy from the the universe, and combines today's best green energy portflolio(solar energy, semiconductor LED light source,dedicated battery for street lights). It uses excellent practical control technology, such as micro controller, thermal infrared human body induction etc.,
combines with the simple integrated structure design, perfect implementation of low power consumption but high brightness (average 10w power consumption is 80w incandescent lamp's illumination), long life span and free maintenance, excellent waterproof and heat dissipation, at the same time with convenient installation. All the advantage above make it the best contributed and patent product of our company.



Specifications


solar powered outdoor lights
Integrated Solar Street /Garden Light (80W)
80W

Solar Panel
Max power
18V 80W(Imported High Efficiency Monocrystalline Silicon)
Life time
25 years

Type
Powerful LifePO4 Battery(12.8V 40AH)
Battery
Life time
6 years
LED Lamp(With Motion Sensor)
Type
12V 80W
Led chip brand
Bridgelux from USA with high Brightness
Lumen
8000LM
Life time
100000hours
Viewing angle
120°
Charge time
by sun
6-10hours (with enough strong shine)

full power
more 15hours
Discharge time
saving mode
more 30hours
Working tempreture
range(℃)
-25℃~+65℃
Color tempreture
range(K)
6000K-7000K
Mounting height
range(m)
6~8m
Space between light
range(m)
18m-24m
Lamps material of main
aluminium alloy
Certificate
CE/ROHS/IP65
Warranty period
5 years
Packing and Weight
Product szie
1933*420.5*234.5mm
Product weight
14KG
Packing box
2000*150*310MM
Carton size
2000*150*310MM
Q'ty/ctn
1set/ctn
GW for carton
15KG
Packs Containers
20'GP
233sets


40'GP
475sets




All in one solar panel turn sunlight into electricity. The controller save electricity in lithium battery through the charging and discharging.



Feature



1.High class Integrated die-casting Aluminum alloy case .
2.Lighting mode with motion senor
3.120° view angle
4.Over 3 nights lighting after full charge
5.Easy to install,Auto on/off



Litium battery



The lithiun battery is compressed and has three main characteristics:reduce size,hig-capacity and long life-span.up to 120lm/w(lumens per watt)light output and +95% driver efficiency.We provide 2 years warranty.



Infrared body sensor



With infrared body induction controlled technology,it can stroe energy during the daylight,and modulate the lamp's brightness when people pass through at night.During the night,the sensor will work automaticlly controlled by intelligent induction module.it will be 100% full bright mode when people pass through and on energy-saving mode when people pass leave away.

(Lightin mode canbe adjust accroding to clients demands.)

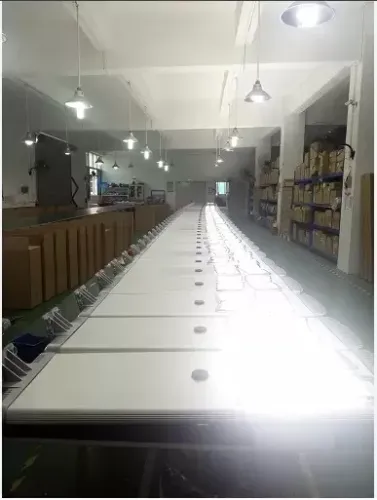

 Factory





Applications

The Solar Light Can Widely Application At:
Indoor / Outdoor / Barn / Road / Garden / Park / Square / Street / Pathway etc






Packaging

Standard export packaging or customized according to customer requirements



Product Packing




Packaging &Weight
Products size
1933*420.5*234.5mm
Product weight
14KG
Packaging box
2000*150*320MM
Carton size
2000*150*320mm

Qty/ctn
1set/ctn
GW for caton
15KG

Packs Containers
20'GP
233sets
40'GP
475sets
