Integrated Remote Control Ip65 Outdoor Waterproof 20w 40w 60w All In One Led Solar Street Light

street light with solar power, All In One Led Solar Street Light
  • Product:
    All In One Led Solar Street Light
Description
Description

Integrated Remote Control Ip65 Outdoor Waterproof 20w 40w 60w All In One Led Solar Street Light





Features



street light with solar power



The design of integrated solar street light/garden light absorbs the inspiration and energy from the the universe, and combines today's best green energy portflolio(solar energy, semiconductor LED light source,dedicated battery for street lights).

It uses excellent practical control technology, such as micro controller, thermal infrared human body induction etc.,
combines with the simple integrated structure design, perfect implementation of low power consumption but high brightness (average 5w power consumption is 100w incandescent lamp's illumination), long life span and free maintenance, excellent waterproof and heat dissipation, at the same time with convenient installation. All the advantage above make it the best contributed and patent product of our company.





Specifications



Model
MS-SSL-60W
Rated power 60W
Lumens 7800LM
Solar panel 90W/18V
Lithium battery 42AH
Install height 8-9M
Spacing 25-30M
Color temp. 6500K
Sensing distance 12M
Work temp. -20℃ ~ +60℃
Pole diameter 70-100mm
Water proof IP65
CRI >70
Charge time 6-8H
Lighting time Light on at dusk, Light off at dawn atuo.
12 hours lighting time per day, brightness and on&off time can be adjusted by mobilephone APP. Max 10 rainy days backup.







Details

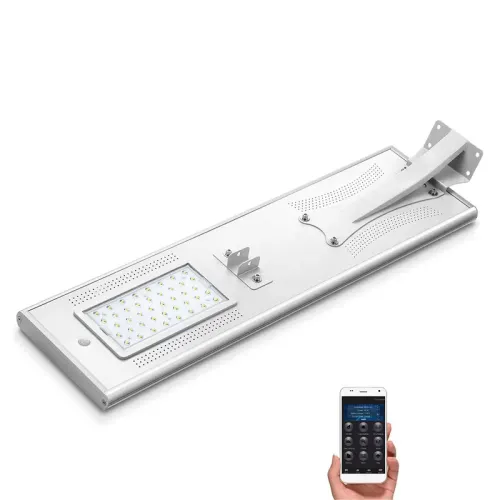

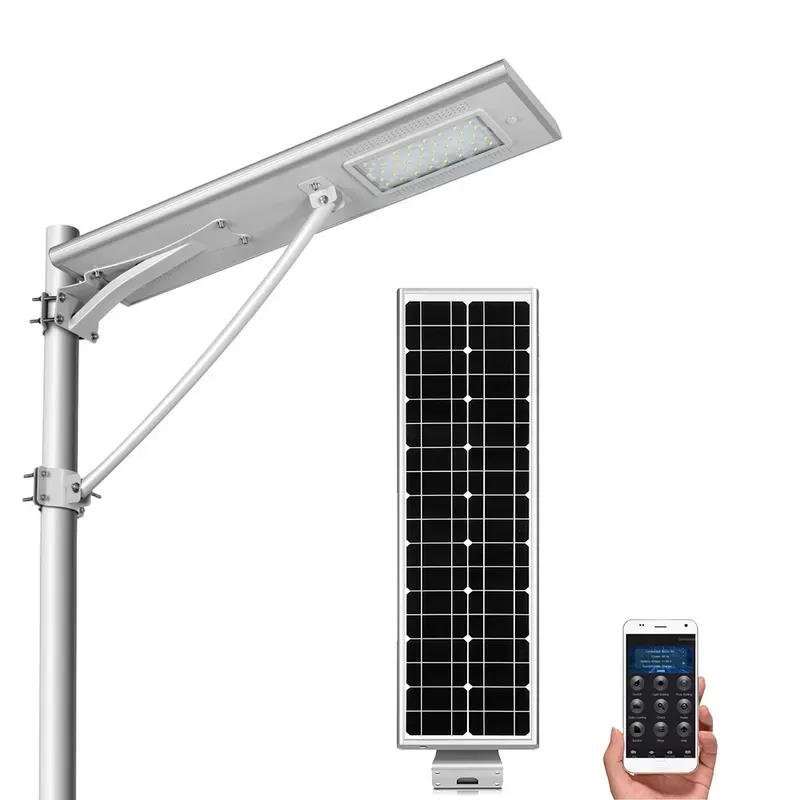

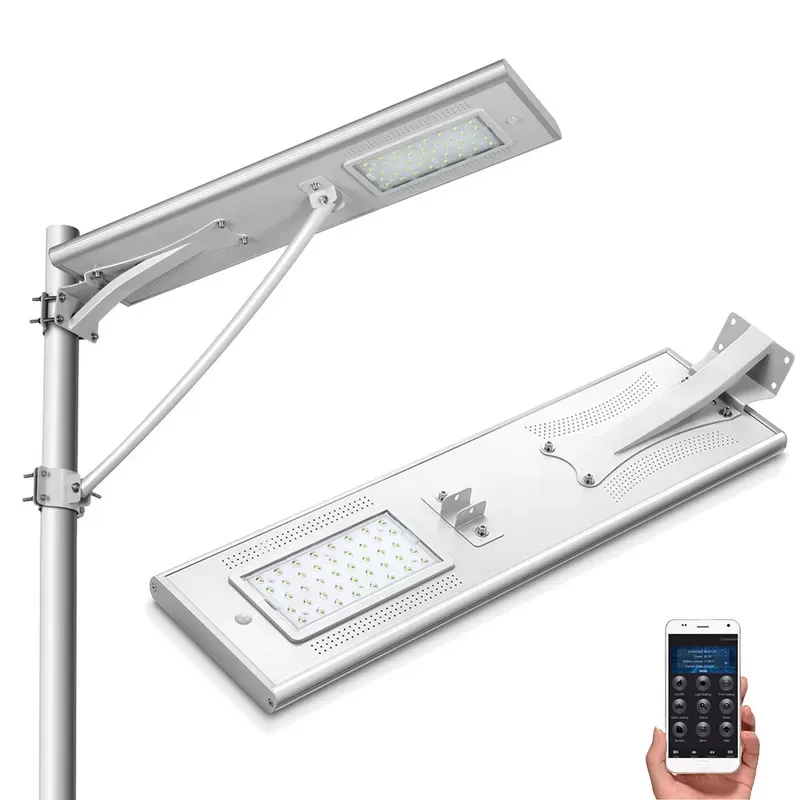

Solar street light all in one



LONG-LASTING PERFORMANCE
Anti-aging technology maintains optimum

Performance for 25years

High encapsulation performance



TESTED IN EXTREME CONDITIONS

Salt mist and Ammonia corrosion resistantUnique design to achieve 8000pa loading



MONO SOLAR CELL

Guarantees better performance in weak light

3-busbar cell technology reduces the series resistance and helps to boost power output in the module.



LED MODULE

A-CLASS LED bead: the advanced lighting technology brings a higher luminous intensity
lower thermal resistance and a greater lluminaire stability.
this in turn improves the longevity of the LED's promising
more long term system reliability.
Luminous Efficiency>160Lm/W.
Famous brand LED chip.



CORE TECHNOLOGY
Patent design MPPT controller by our R&D team

Charging efficiency >95%

Maximum Power Point Trackin

Multiple work mode function

Over-charge, over-discharge, over-heat protection.


EYES OF LIGHT
It detects movement within several meters of the unit and automatically

regulates the output of the LED lamp from a 'dim mode' to 'full-brightness,

depending upon whether motion is detected. This smart feature preserves battery power as well as increases.



LONG LIFETIME

Newsky uses new-generation Lithium batteries which offers 3 times more storage and power capacity versus conventional Lead Acid batteries.

Lithium batteries are also able to discharge to an incredible 90% without any damage.

Lifespan over 5years.

Comply with IEC61233.



TEMPERATURE MONITORING
Newsky lithium batteries and smart protection features are up for the challenge.

Working temperature is -20 degree Celsius to +60 degree Celsius.

Battery temperature can be read by APP mobilephone.



PRIVATE LED LENS
Newsky create a new LED lens that provides greater luminous uniformity and offers the ultimate in design flexibility.

The beam pattern is perfect for sidewalks, pedestrian promenades, bicycle paths, minor roads and parking lots.






FUNCTIONS

Light control/Time control switch,
Motion sensor/Programming mode,
Rainy days setting,
System status reading,
Power generation statistics,
ON/OFF,
Faulty checking.





Applications



Very suitable using in Government project, Courtyard, Roadway, Pathway, Public square, Campus, Remote Area, Hacienda, Pasture, Mongolian Yurt, Parking lot, Tennis Court street etc.





Our factory







Packaging



Solar led street light :
Solar panel:carton package and pallet
Battery:carton package and pallet
Controller:carton package and pallet
Pole:bubble wrap
Fixture:carton package and pallet
