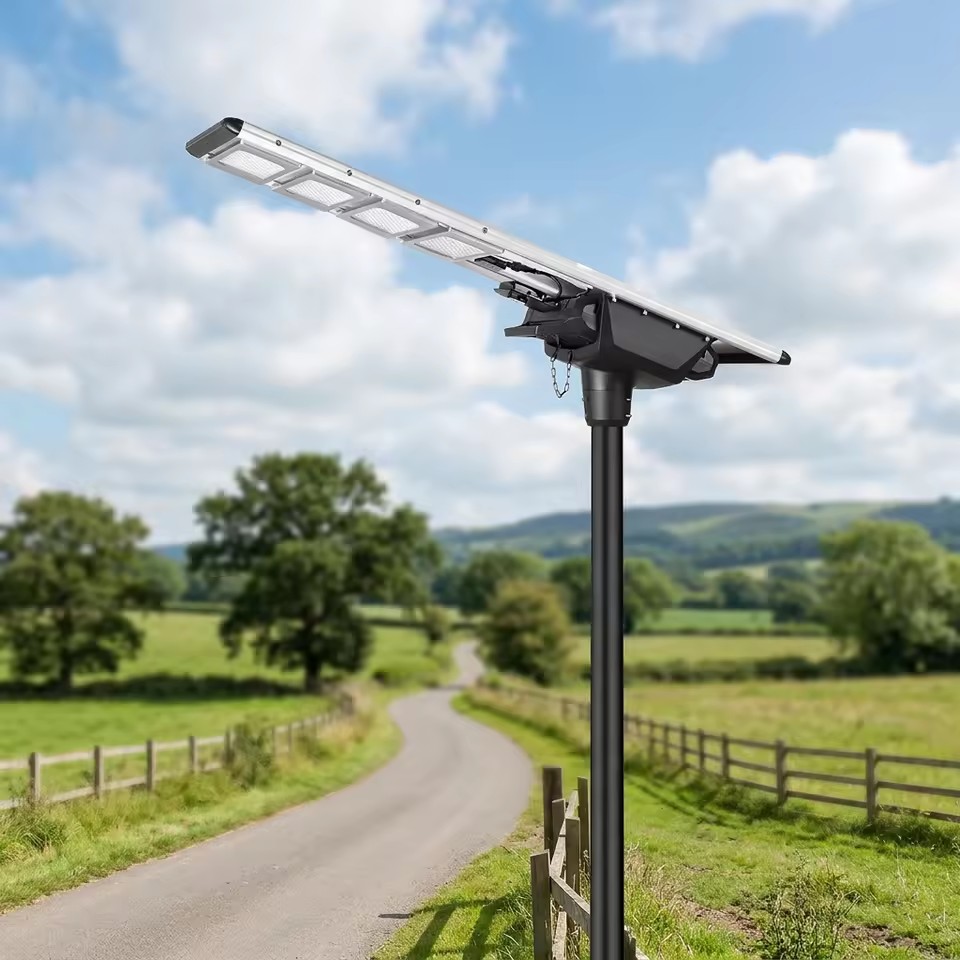

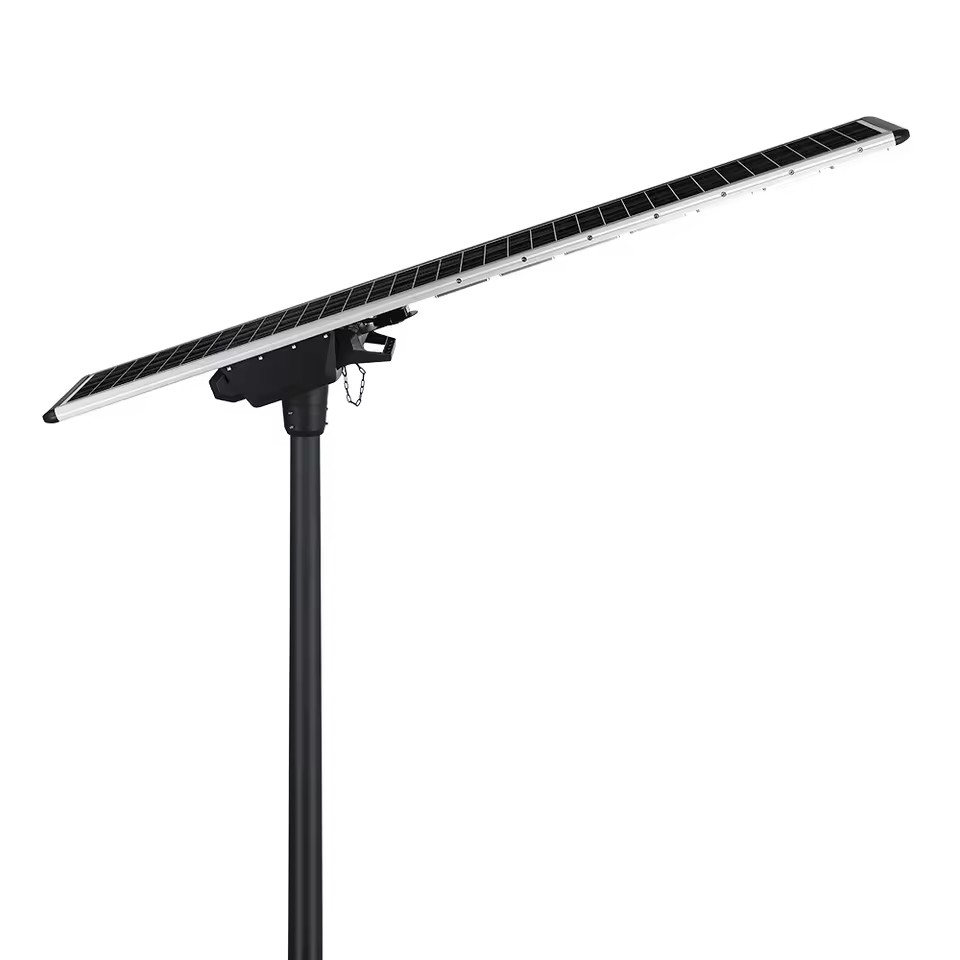

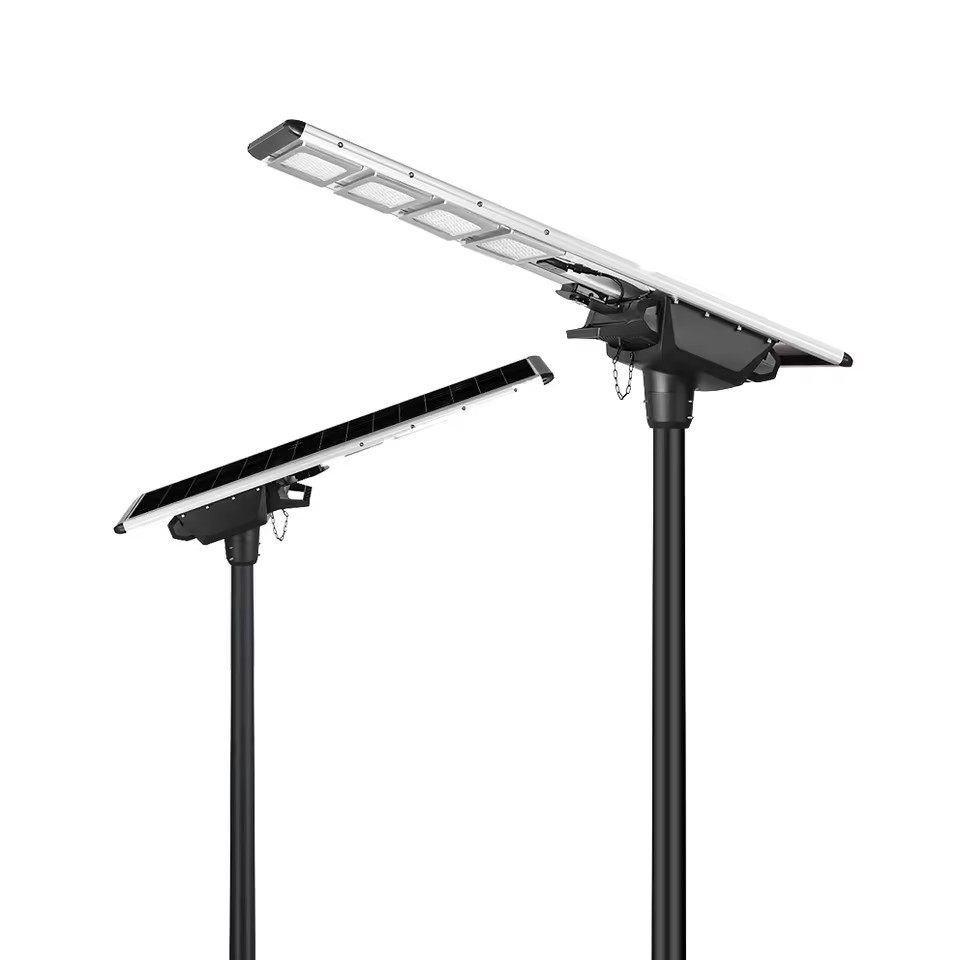

Intelligent Control High-Capacity Removable Battery All In One LED Solar Street LightProduct DescriptionThis is MINSENS TECHNOLOGY CO., LIMITED‘s latest-generation smart solar street light, Entirely independently developed. It features an exceptionally large battery capacity, reaching up to 60Ah at 25.6V (250W). The intelligent control system is equipped with a light sensor, enabling the unit to charge automatically during the day and begin operation automatically at night. It dynamically adjusts its power output in real-time based on the remaining battery capacity, ensuring continuous operation for over 12 hours daily—even during overcast or rainy weather.

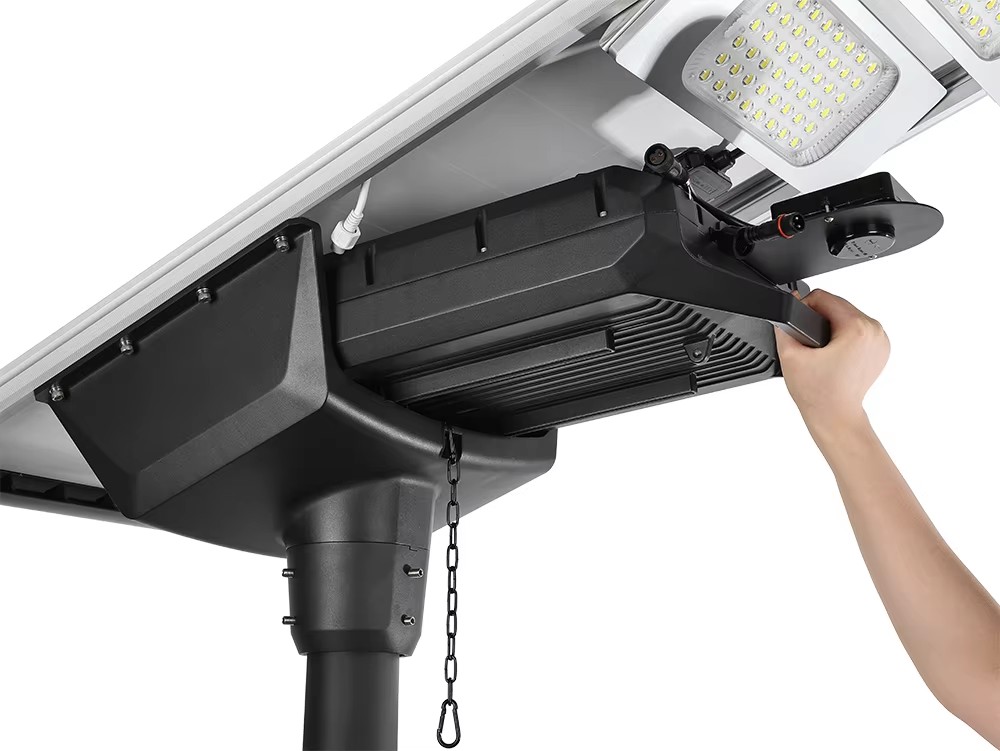

The battery compartment features a detachable design to facilitate easy maintenance. Additionally, the LED module is angle-adjustable, allowing users to fine-tune the illumination direction to achieve optimal lighting coverage based on specific site requirements.
FeaturesIP66 Waterproof: Protects against dust and water, ideal for outdoor use.
Super Brightness: Delivers up to 190lm/watt, ensuring optimal illumination.
Long Lifespan Battery: LifePO4 battery lasts over 2000 cycles and exceeds 100,000 hours.
MPPT Controller: Efficiently manages energy for stable performance regardless of weather conditions.
Motion Sensor + Remote Control: Flexible control options for convenience.
Removable Battery.

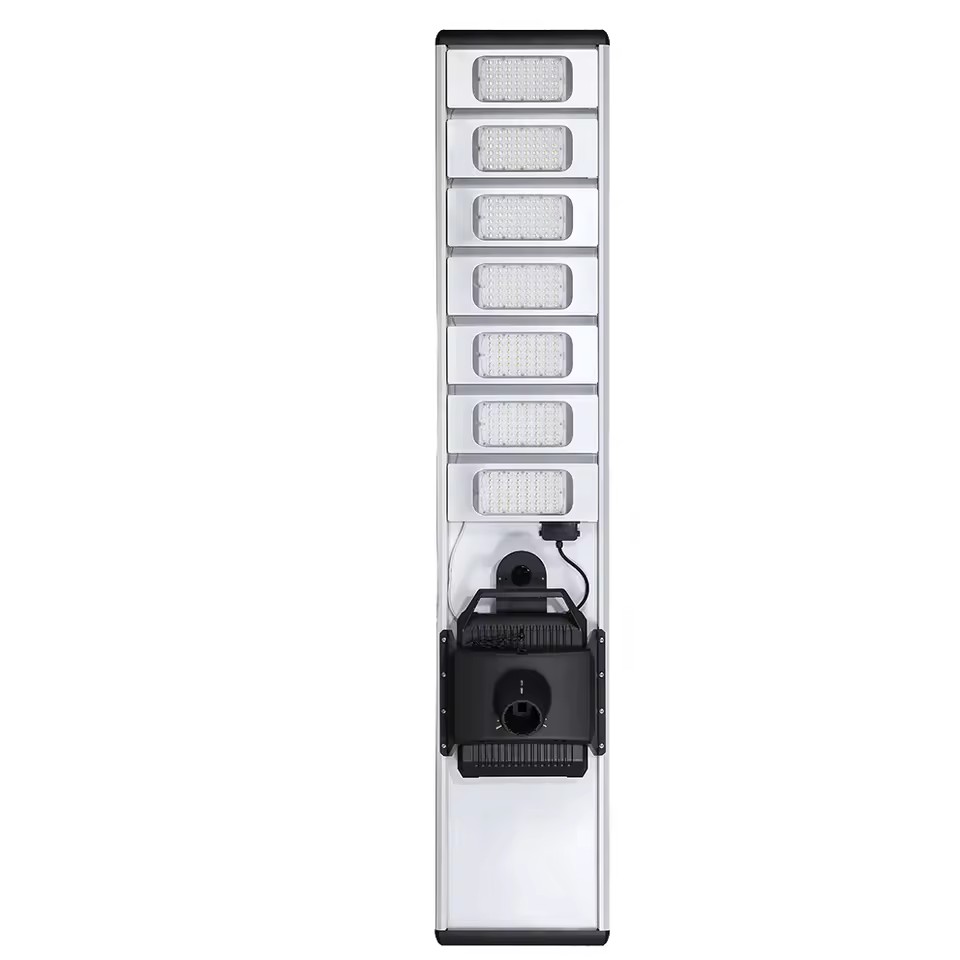

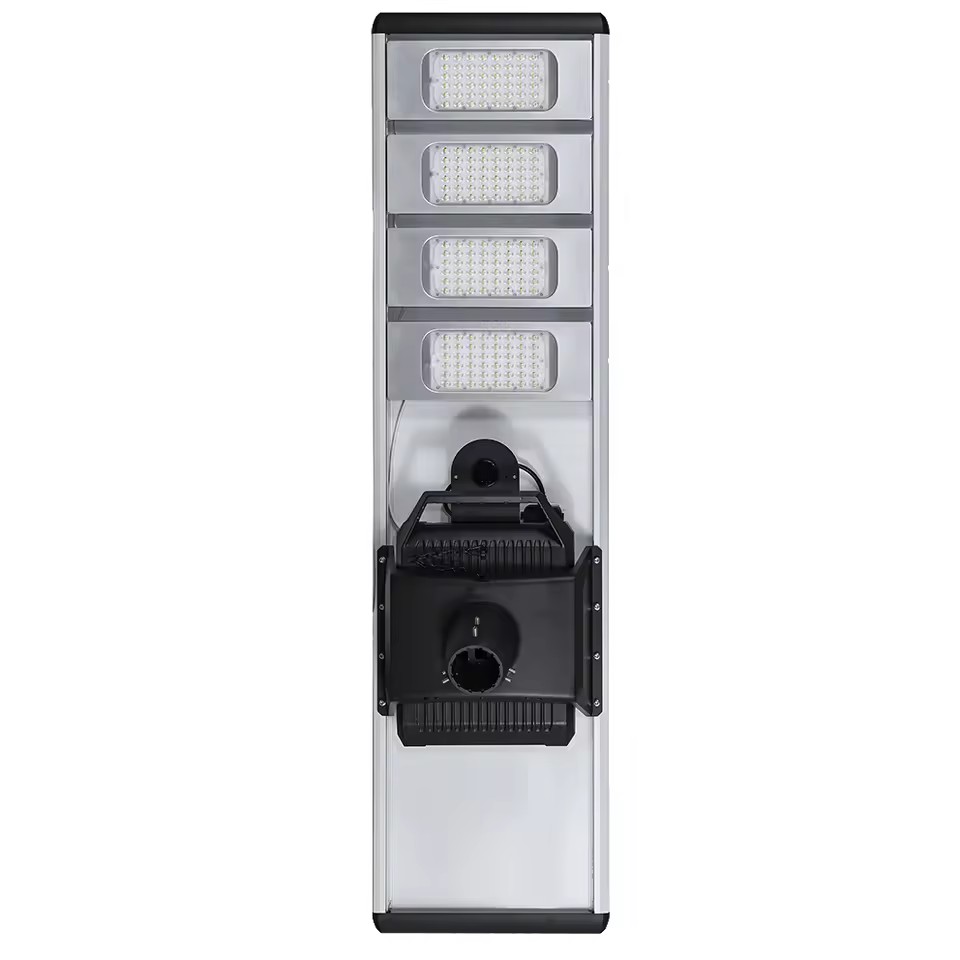

Adjustable LED Beam Angle.
All-Day Intelligent Control System.
Product Parameters
| Led Source |
QH-60W |
QH-80W |
QH-100W |
QH-120W |
QH-150W |
QH-200W |
QH-250W |

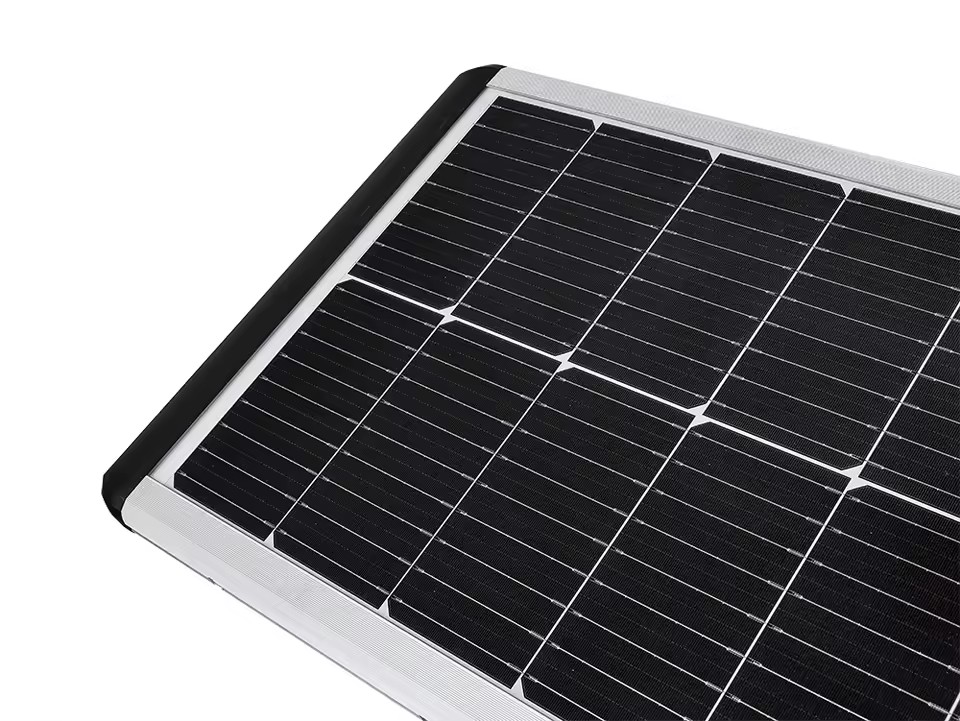

| Mono Solar Panel |
18V 80W |
18V 100W |
18V 130W |
18V 140W |
18V 150W |
36V 200W |
36V 250W |
| LifePO4 Battery |
30AH 12.8V |
45AH 12.8V |
45AH 12.8V |
60AH 12.8V |
75AH 12.8V |
45AH 25.6V |
60AH 25.6V |

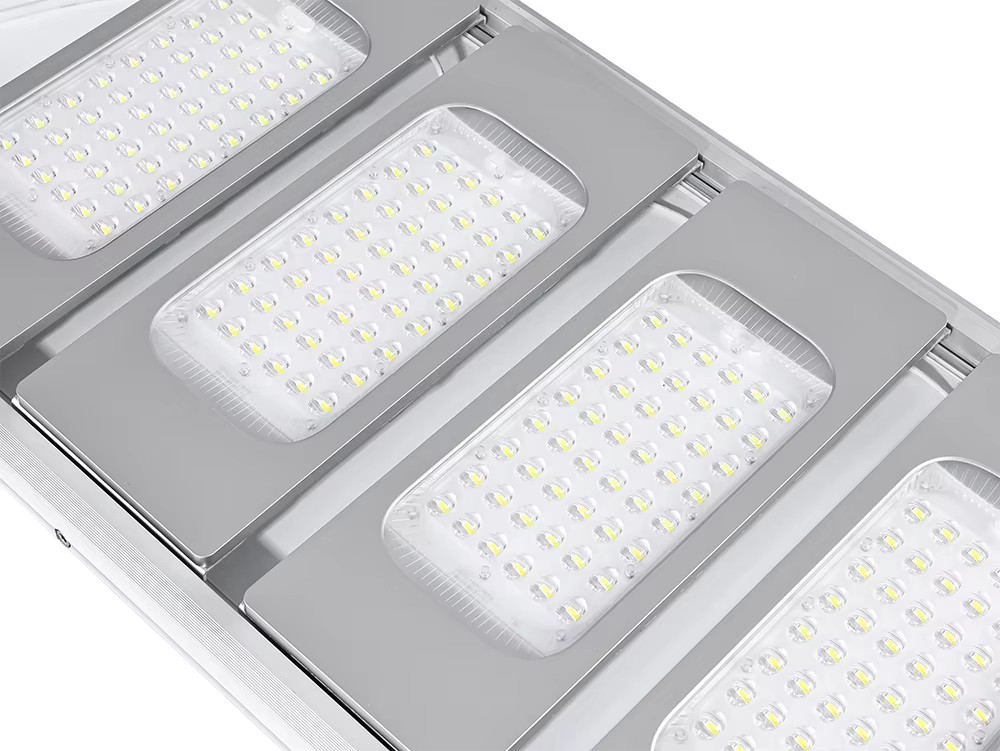

| LED（Bridgelux） |
5050/96PCS |
5050/144PCS |
5050/192PCS |
5050/192PCS |
5050/240PCS |
5050/288PCS |
5050/336PCS |
| Color Temperature |
2700K-6500K，RA>70 |
| Brightness |
190LM/W |
| Working Time |
12-15hours, 5-7 cloudy/ rainy days |
| Charging Time |
6-8hours |
| Mounting Caliber |
70-76mm（suggestion） |
| Working Temperature |
-25℃－+65℃ |
| Body Sensor |
160°，>9m , Activated by customer’s need |
| Battery Power Indicators |
100%-75%-50%-25% |
| Fault indicator |
RED/BLUE/GREEN |
| IP Rating/IK Class |
IP66/IK10 |
| Mounting Height |
6-8m |
8-9m |
9-10m |
10-11m |
10-12m |
10-12m |
10-12m |
| Space between 2 lamps |
20-25m |
25-30m |
30-35m |
35-40m |
35-40m |
35-40m |
35-40m |
| Warranty |
3 years / 5 years |

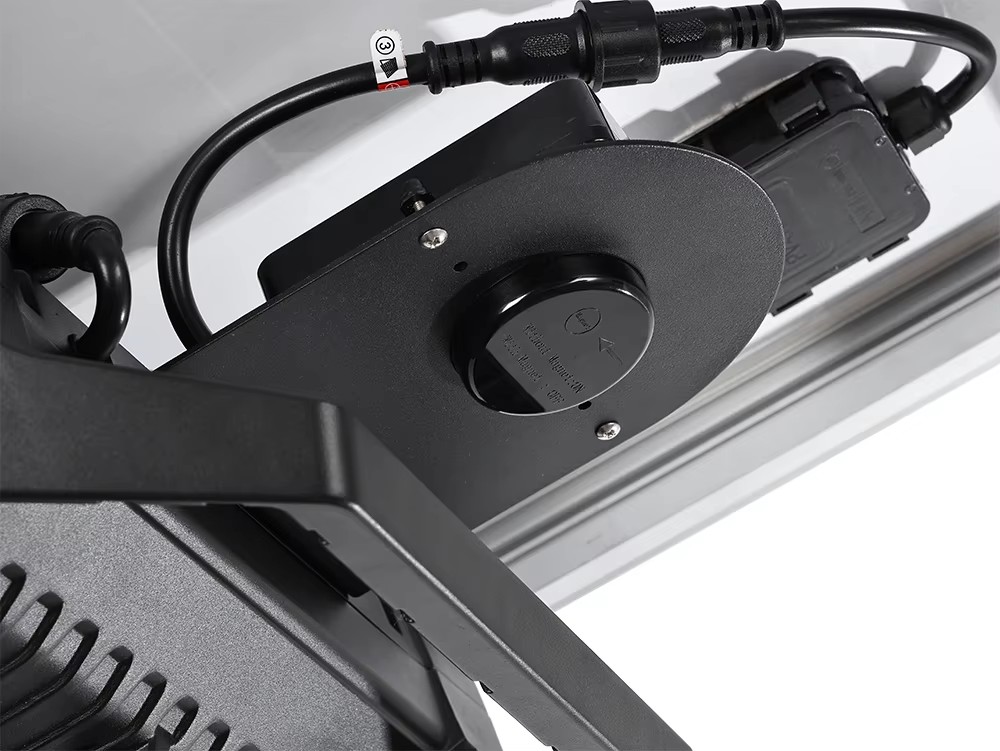

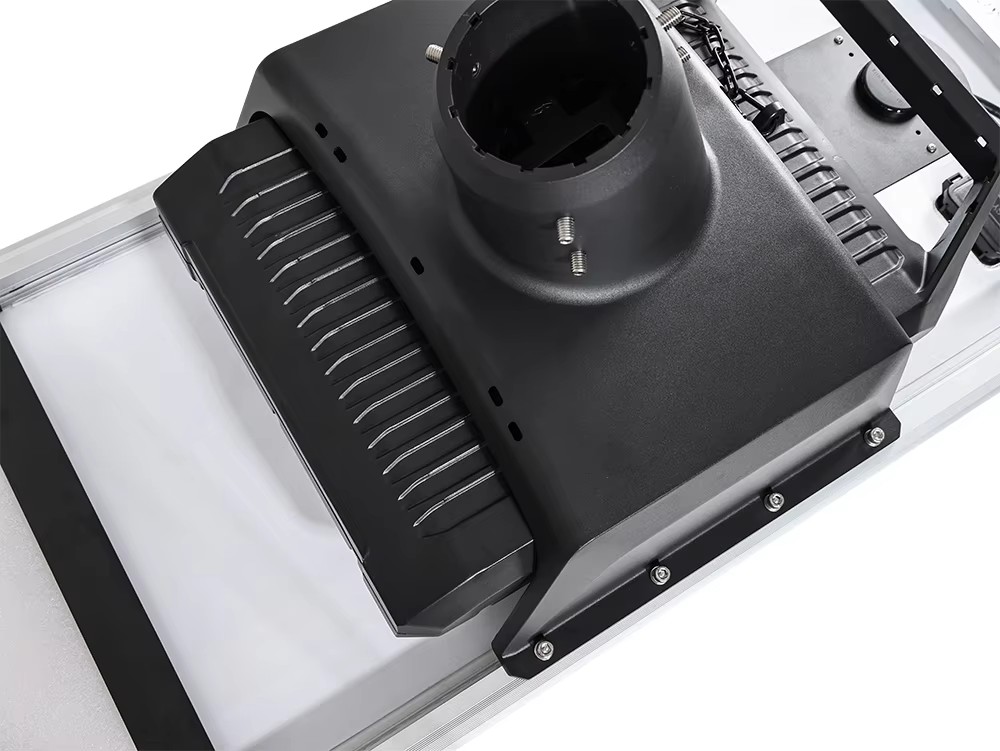

Detailed PhotosThe Controller of QH series adopts extremely simplified design, integrated controller, microwave induction, and magnetic switch in one, which makes the operation simple, the maintenance simple, and the stability is higher.

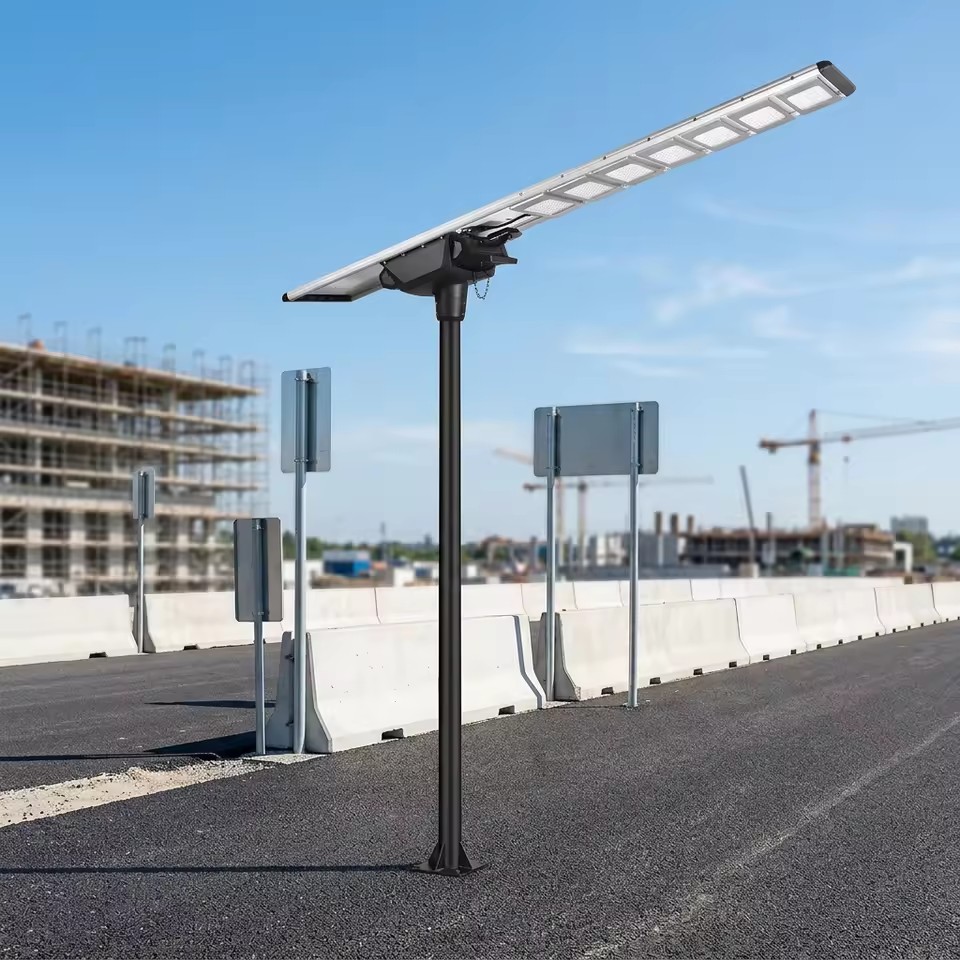

ApplicationsMINSENS All In One LED Solar Street Light Widely used in branch roads, streets, and factory roads, parks, villages, mountainous and remote areas, lighting projects, courtyards, schools, squares and other places that require outdoor lighting, helping domestic traditional lighting to upgrade to LED green new energy lighting Replace.
Certifications

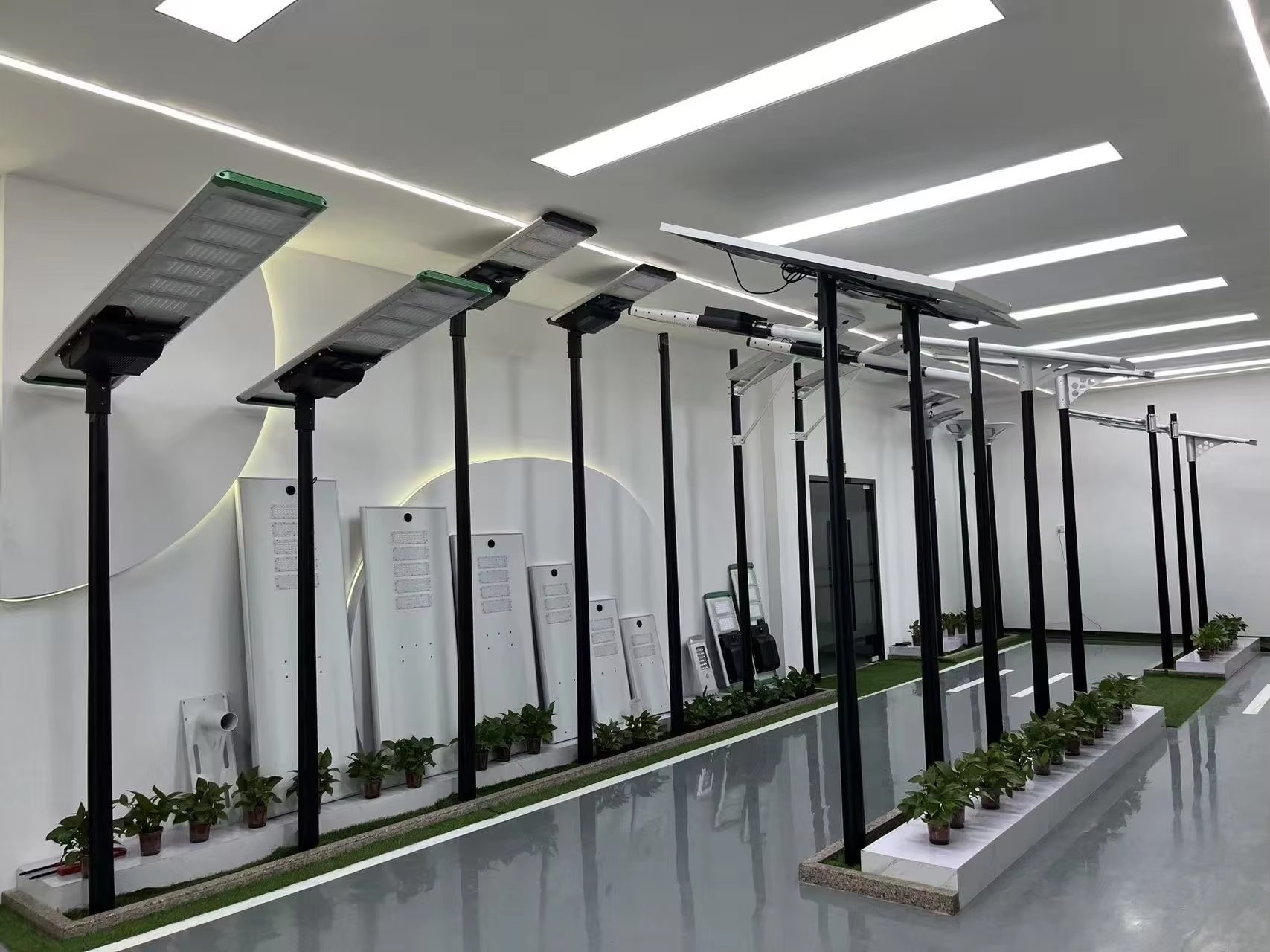

Exhibition Hall
Packing and shippingThe battery and the lamp body are packaged separately in cardboard cartons. Custom packaging is available upon request.
