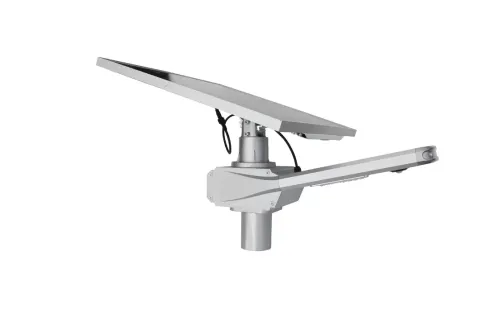

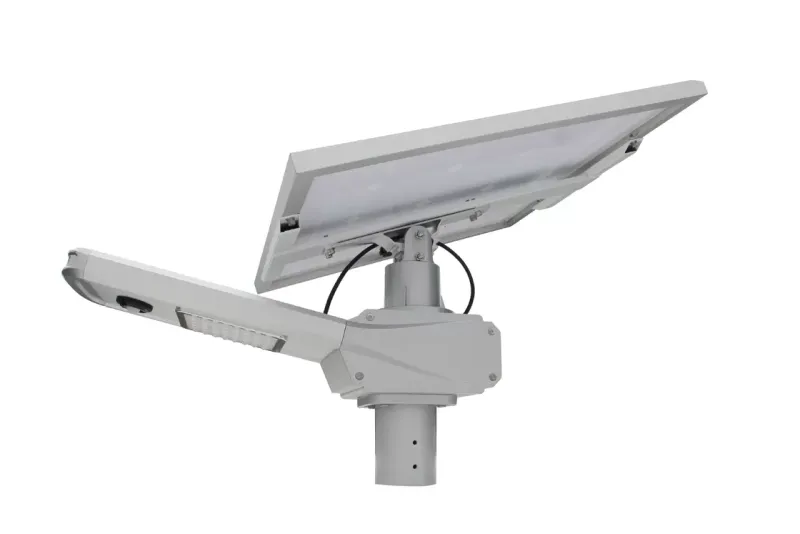

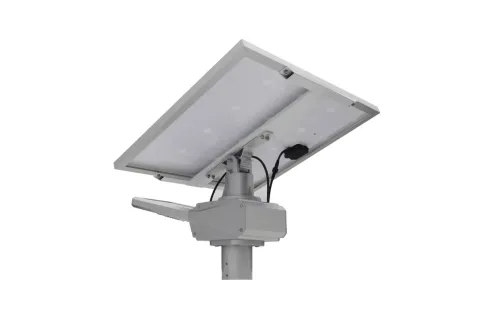

Intelligent High Power Lithium Battery 60W Integrated Solar LED Street Light

60W Integrated Solar LED Street Light
  • Product:
    integrated solar street light
    integrated solar led street light
    integrated solar light
    all in one integrated solar street light
Description
Description

Intelligent High Power Lithium Battery 60W Integrated Solar LED Street Light





Description



Integrated solar LED lights is designed for lighting up parking lots, pathway and sidewalk of residential areas, roads of remote places with limited access to grid power, widely installed on outer walls of factory and warehouse.

MINSENS launched new concept integrated solar LED lights in Q2 2019, the LED light source and battery pack is modularized, easy to eliminate the lights malfunctions, and replace new battery pack after the old one is ineffective; The smart indicator lights shows which lighting mode is working, users are free to switch different lighting modes either by pressing the botton on the lamp, or use remote.





Features



60W Integrated Solar LED Street Light



Integrated design:Solar Panel, LED, Lithium battery, Micro-controller in one system.
Advanced controlled system: Microwave sensor system, light control system and driver control system.
Integrated All in one Solar street lights output power from 5W to 100W.
Using PIR motion sensor, smart saving energy.
Using high power capacity and long life Lithium Iron Battery.
No external wires, easy for installation, transportation and replacement.
Main structure is made by alluminum alloy material for anti crossion.
Rain-proof structure.





Specifications



60W Integrated Solar LED Street Light



Solar Street Light Spec
Item Detail Spec Lifespan
Solar Panel 18.5% Efficiency;18V 80W Monocrystalline; High Efficiency;Adding Aluminum Frame, Tempered Glass. 60W 20~25 years
Battery High-efficiency lithium battery 12V 360WH 8-10 years
Intelligent Solar Controller Automatic Light and Time Control;Over-charging/discharging Protection;Reverse-connection Protection;Switch on Automatically with Light Sensor;;Switch off after 11-12 Hrs later. 10 / 15 / 20Ah 5-8 years
LED Light Source IP65,120 Degree Angle;High Power, High Brightness. 30W~80W 5-8 years
Lamp Housing Die-casted Aluminum, IP65;High transmittance & density toughened glass. 50cm~90cm > 30 years
Pole Steel, Hot-Dip Galvanized;With Arm, Bracket, Flange, Fittings, Cable, Etc;Plastic Coated, Rust Proof;Resistant to Wind: ≥150KM/H. 3m~15m > 30 years
Feature
1.First integrated design, simple, fashionable, light and practical.
2.Solar power is used to save energy and protect the earth's resources.
3.Adopt the infrared induction control technology of the human body, people come to light, people walk the lamp dark, extend the lighting time;
4.Adopt high capacity long life lithium battery to ensure the service life of the product.
5.No need to pull wires, installation is very convenient.
6.Waterproof structure, safe and reliable;
7.Extensible timing, voice control and other functions.
8.Adopt modular design concept to facilitate installation, maintenance and repair.
9.Alloy material is used as the main body of the structure. It has good functions of rust prevention and corrosion prevention







Details



Integration design


1. Integrate the solar panel, led body, battery and controller into whole system. Easy to transport, install and maintain.

2. Strong mechanical load capacity, entire module certified to withstand high wind and snow loads



Structure design


1. Solar panel can be adjustable manually in vertical and horizontal direction, ensure
the maximum efficiency of solar energy

2. Solar panel looks like an umbrella to protect battery from high temperature and
extend the lifetime. Perfectly solve heat dissipation


Industry design


Originating from the design of the horse nape, this solar street light adopts a streamlined structure and has the unique beauty to break the mold of sameness




Excellent LED chip


1. Color temperature: 3000-6000K
2. 180lm/w high luminous efficiency
3. Low light decay and long service life
4. More energy saving than competitors
5. Redeveloped based on USA Bridgelux chip
6. Works normally at high or low temperatures
7. Professional light distribution with patented lens



Durable lithium battery


1. Lifespan: 8-10 years
2. Fast charging speed
3. No pollution and stable
4. High temperature resistance
5. LiFePO4 battery with high capacity
6. >2000 times charge & discharge cycles
7. Fully sealed construction, maintenance free



Efficient solar panel


1. 20-25 years lifetime
2. tempered glass cover
3. 150W-240W panel power
4. Certified by TUV, CQC, etc
6. A grade high efficiency solar panel
5. Increase charging efficiency by 25%
7. Excellent performance under low light environments





Core technology



MPPT Technology
The conversion efficiency of solar system are fully increased, effictively shorten the 20% charge time


170lm/w high light efficiency
Consume less power to output higher lumen, which is very energy-saving. At the same time, it increase light brightness by 75% compared with competitors, which is very technological



Professional light distribution
Embedded with Road Smart self-developed patented lens, bat-wing & polarized lighting strategy, wider lighting area, more comfortable and uniform light brightness



Long Last lighting with Intelligent Power
With patented software algorithm, system automatically plan the discharge power based on local weather, and achieve the perfect balance of brightness and discharge time. The bright lighting can last for more than 15 rainy days



8 Years Lifespan with BMS
Patent software and hardware technology to average the charge and discharge current on each battery cell, improve charge cycle times, extend the service life for more than 8 years


Motion sensor control
Embedded with microwave motion sensor, which is the latest generation sensor technology, automatically and accurately adjust light luminance according to ambient movement



Multiple working modes with dimmer
Remote control and reset different modes for street lighting. Light control, time control, motion sensor and light control, motion sensor and time control, demo mode, off mode


Three light indicator
Fast status diagnosis, through charging indication,Battery indication and Load indication, quickly judge the light status without any tools







Applications



60W Integrated Solar LED Street Light have been successfully applied in 120 countries' projects, which are projects for parking lot, ferry, square, road, street, avenue, plaza, square, boulevard, freeway, highway, motorway, etc





Factory









Packaging



Solar led street light :
Solar panel:carton package and pallet
Battery:carton package and pallet
Controller:carton package and pallet
Pole:bubble wrap
Fixture:carton package and pallet





FAQ



Q:Are you a factory?

A:Yes! we are a factory of led solar street lights for 8 years.



Q:It does not light on in rainy days, the lamp has short light on time

A:We increase the battery and solar panel capacity,smart mode for time brightness,1 day full charged,2-3 working



Q:The lamp enter water,not waterproof.

A:the whole lamp is IP65,controller:IP67,use electric glue



Q:will the lamp is so dark?
