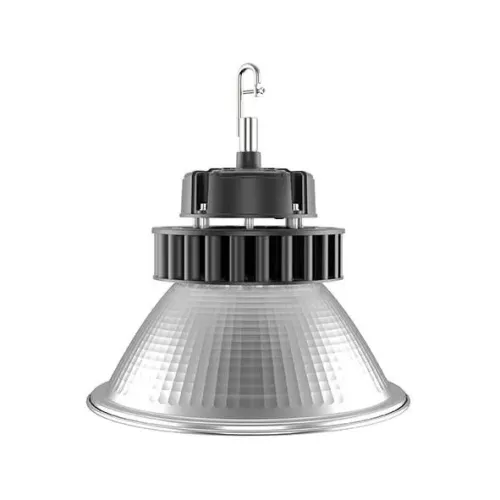

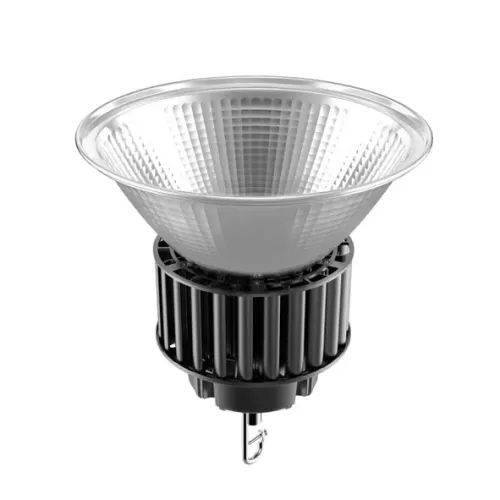

IP54 60w 100w 150w 200w Industrial LED High Bay Light Warehouse Lighting

Industrial LED High Bay Light Warehouse Lighting
  • Specification:
    200w Led High Bay
    OSRAM Or 3030
    Luminous Efficiency: 120LM/W
    PF>0.95
    5 Degree
    60 Degree
    120 Degree
Description
Description

IP54 60w 100w 150w 200w Industrial LED High Bay Light Warehouse Lighting

Description

1. Copper heat pipes directly heat bonding distance, quick heat-ventilation;
2. Optional 90°/110° reflector,effectively improve the light utilization efficiency;
3. Alternatively tubes, lifting, frame, 3 kinds of installation, convenient and flexible.
4. Shade rotary buckle, tool-free installation, milky/transparent PC cover optional;
5. High lumen LED chips and constant-current driver, good performance, high efficiency, longer lifetime;
6. Fine thermal structure, fast heat dissipation, light body temperature does not exceed 30℃, to ensure long-life light source.

Featurs

high power led high bay lights

1. Heat Sink: This housing is provided by "PC Cooler", (a reputable heat-sink supplier in Shenzhen by their high quality.). Innovative structure design, used of large-area fins for heat-dissipation, by special pressing and inserting technology.
150w Led High Bay Lights CE RoHS 5 years warranty led industrial high bay lighting
2. Material: using 1060 aluminum, the aluminum content is 99.6%, good thermal conductivity, corrosion resistance:
150w Led High Bay Lights CE RoHS 5 years warranty led industrial high bay lighting
3. Beam Angle: 25 degree,60 degree,100 degree Optional, different beam angle by lampshade, can meet customers' professional needs on light distribution.
150w Led High Bay Lights CE RoHS 5 years warranty led industrial high bay lighting
4. Easy installation for lampshade: The lampshade is installed by rotary buckle, without need of any tools.



Specification
industrial high bay led light fixtures



Power 60W 100W 150W 200W
LED type SMD 3030 SMD 3030 SMD 3030 SMD 3030
LED Qty 112 PCS 112 PCS 182 PCS 238 PCS
Connection 7S16P 7S16P 7S26P 7S34P
LED Volt 42V 42V 42V 42V
Driver type MW / SOSEN MW / SOSEN MW / SOSEN MW / SOSEN
Input Volt 100-277V 100-277V 100-277V 100-277V
Dimming 0-10V/ PMW/ Timer/ Dali,optional
Power Factor >0.95 >0.95 >0.95 >0.95
Lumen >120LM/W >120LM/W >120LM/W >120LM/W
Color temp 3000K /4000K /5000K /6000K
Protection degree IP54 IP54 IP54 IP54
Coler Render >70
Beam Angle 90°/110°
Light material Die-casting lamp body + transparent or opalescent PC cover
Work Temp -15℃~+50℃
Work Humidity 10%~90%
Life/Warranty 50,000hrs / 5Years



Product Details Show

led high bay factory lights

1, The light source adopts the integration of imported single high power LED, with the special design of integrating many chips into one lighting source.
2, The high purity aluminum from Germany as the reflector is at high reflecting efficiency, which improves the efficiency of light uniformity and utilization, and shows the LED advantage of energy saving.
4, Wide range of input voltage: AC85-265V. New high efficiency constant current driver.
5, No delay start. It can reach normal lighting as soon as it is turned on. No noise.
6, Use powerful LED light source and high efficiency imported LED driver. Compare with sodium lights, it can save electricity around 60%.
7,Beam Angle: both 120 and 80are available.













1. Ambient temperature: less than 50°C
2. Working humidity: 10 to 95%
3. Protection rate: IP65
4. Lifespan: more than 50,000 hours
5. NO UV or IR radiation
6. Safety standard: CE & RoHS UL(E481495) DLC4.0, SAA(122371)
7. Over current/voltage protection
8. Optical grade glass lens system good at light distribution.
9. Light source: high power led
10.Optical efficiency: 120-150lm/watts





Application

led high bay lights 200w Widely used in factories,warehouses,logistics centers,retail stores,indoor gymnasium and etc, replacing traditional HID and CFL lamps, energy-saving up to 60%.





Package

Packaging materia:GKH-1 and gkl-2 share packaging.
The big carton:560x330x495mm , 4 Small carton
Small carton:310 x265x230mm, A product




Why choose MINSENS

1. Strict QC system
Material
1). Inspect lamp shell with out any defective item, good heat dissipation
2). LED chips with Correct color temperature, CRI, lumen efficiency etc.
3). Driver with strict &long time test before application
Assembling
1). Strict QC system.5 tests/checks during their assembly in the lamps production and all product
2). Inspect again when the product be package
Ageing testing
1). Over 48 hours before shipment, confirm all quality well.
Shipping
1). Strong and professional package for safety transportation
2). Clear label Item show what is product in the cartons, include watts, CCT,
Dimming or not and quantity.
2. Professional service
1). Dialux solution for project with in 24hours(5 engineer for this job)
2). professional document and datasheet, nice picture for your market activities
3). Short leadtime, for you to get the lamps and show it to your clients easily
4).Excellent logistics service include the Strong package, fast delivery time, clear label. update tracking news in time
3. 5 years& 3 years warranty
1).long exact warranty, not just a word, it is from our quality confidence and responsibility to our customers,
2). the warranty is base on proof-document, don't need return the product
