IP65 Factory Warehouse Industrial 100w 150w 200w 240w UFO LED High Bay Light

Industrial 100w 150w 200w 240w UFO LED High Bay Light
  • Product:
    led ufo high bay light
    ufo high bay light
    led ufo high bay
    high bay ufo lights
Description
Description

IP65 Factory Warehouse Industrial 100w 150w 200w 240w UFO LED High Bay Light


Description

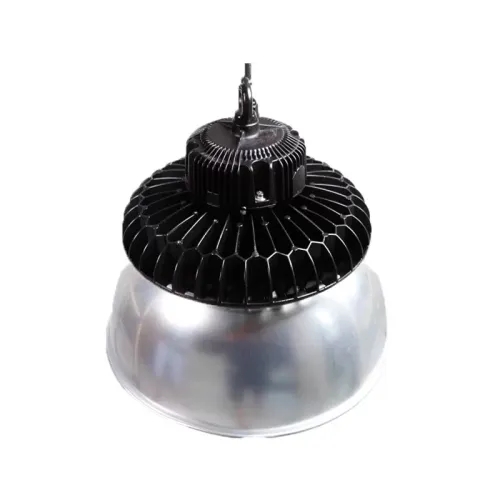

MINSENS Lighting’s HBI series of LED commercial low-profile highbay fixture provides a quick and easy solution for warehouse and industrial applications. The low-profile height allows for efficient packaging, as well as accomodates applications where a low hanging fixture is undesireable. Available in 120W, 150W, and 240W variants, designed to replace traditional 250W-1000W HID equivalent highbay fixtures. Fully sealed construction allows for wet location installation where direct contact with water is necessary. Light output is dimmable through standard 0-10v system control leads. Constructed out of heavy duty cast aluminum with an integrated thermally efficient heatsink profile, each fixture is rated for a min L70 of 50,000 hours.



Features


1 60-240W with 140lm/W;
2 3030 SMD;
3  Sosen or Meanwell driver optional;
4  Beam angle 120°, 60°, 90° is optional;
5  Intallation: Hook mounted with safety string to make sure 100% safety ,Wall mounted with adjustable angle, pipe
6  Multi function: 0-10V, Motion sensor, Emergency are optional;
7  Multi reflectors: Balck & Silver aluminum reflector or transparent PC reflector



Specifications

led ufo high bay light



ufo led high bay light
Specification MS-UHL-100W-C MS-UHL-150W-C MS-UHL-200W-C MS-UHL-240W-C
Input Power: 100W 150W 200W 240W
Lamp Size: Φ310*205mm Φ350*210mm Φ425*220mm Φ425*220mm
LED Source: SMD3030
Lighting Efficiency 130LM/W 130LM/W 130LM/W 130LM/W
Drive Brand: TAI WAN MEAN WELL Or SOSEN
Input Voltage: AC100-277V
Housing Material: 1070 Aluminum,Cold forging technology
CCT 3000-6500k
CRI >80
Working Temperature -30~50
PCB Surface: Conformal coating
IP Rating: IP65
Viewing Angle: 60°/90°/120° Degree PC Lens
Installation Hanging Hook with safety string,Wall mounted and 3/4 junction pipe is optional
Multi Function 0-10V, Motion sensor and Emergency is optional
Lifespan: 50,000hrs
Reflector Aluminum(silver/Black),Transparent PC optional
Certificates CE,ROHS,ETL,DLC for wet locations,DLC
Warranty: 5 years




Details

ufo high bay led lights

1.Beam angle : 60 / 90 / 120 degrees.
2.Aluminum die casting heat sinks is good for heat dissipation.
3.It's major to replace the conventiona high bay light.
4.Green ,energy saving,long and relialble life of 50,000 hours.
5.No RF interference ,no IR / UV radiation,no mercury pollution.
6.Wide colour availability in degrees Kelvin(K),2700-6700K.
7.Streamline exterior design,beautiful appearance.
8.Environment friendly ,energy saving (70%~80%).
9.Special circuit design,each LED work separately,avoiding the single broken LED influence problem.










1.Replace conventional high bay light;
2.Precision die cast aluminum housing;
3.Fade resistant powder coat finish;
4.Easy installation;
5.With a microwave sensor in the middle of the lamp;
6.CE ROHS listed.





Applications

UFO LED High bay Lights widely used

1.Parking area lighting;
2.Ceiling lighting;
3.Warehouse lighting;
4.High / low bay lighting.







Packaging

Packing Material:Neutral packing with strong corrugated paper cartons,in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS
