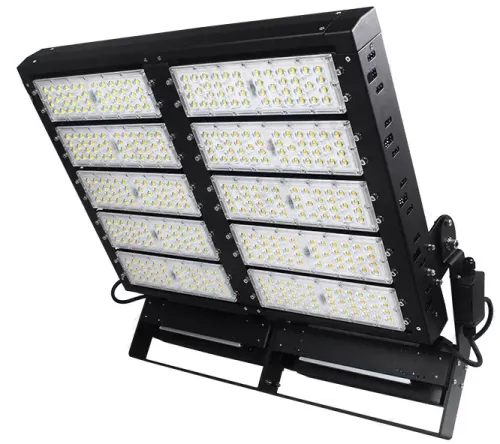

IP65 Narrow Angle 300W 400W 500W 600W 800W1000W LED Stadium Light For Stadium Lighting

Narrow Angle IP65 150lm/W LED Stadium Light
  • Specification:
    Lamp Power: 1000W
    Item: LED Stadium Light For Stadium Lighting
    Input Voltage(V): 90-305VAC
    Luminous Efficiency: 36000-155000Lm
    Narrow Angle: 25°/ 45° / 60°/ 60*145°
    Lamp Body Material: Aluminum + PMMA
Description
Description

IP65 Narrow Angle 300W 400W 500W 600W 800W1000W LED Stadium Light For Stadium Lighting



Description


1000W LED Stadium Light For Stadium Lighting

Original Asymmetrical & Symmetrical beam Angle design for sports lighting
150lm/w high efficiency solution
5 beam angles (Asymmetrical 55°*140°&10°&45°&60°&90°)
TUV & UL driver & CREE LEDs ,surge protection 10kv



Features



1. Aluminum fin-shape heat sink and active air exchanging cooling system.
2. Modular structure of LED industrial Light could be applied for power variation by module increase and decrease.
3. Beam angle of modular could be adjustable to fulfill various lighting requirements.
4. Unique design removable power supply and light source.
5. IP65 ideal for outdoor use.
6. LEDs from lumileds SMD5050
7. Constant current driver from Meanwell/ Sosen, 90-305VAC(277-480V optional )
8. 50% less power consumption than traditional light source
9. High power LED tunnel light 300W/400W/500W/600W/800W/1000W for choosing
10. Light distribution: 25°/45°/ 60°/60*145°



Specification

industrial outdoor led flood lights



1000w sport light
Power(w) 300W 400W 600W 800W 1000W
Volt(v) 90-305 90-305 90-305 90-305 90-305
LED Chip
Light Effect 130LM/W 130LM/W 130LM/W 130LM/W 130LM/W
CCT 2700-6500K 2700-6500K 2700-6500K 2700-6500K 2700-6500K
CRI Ra70/Ra80 Ra70/Ra80 Ra70/Ra80 Ra70/Ra80 Ra70/Ra80
PF > 0.95 > 0.95 > 0.95 > 0.95 > 0.95
LED Driver Meanwell Meanwell Meanwell Meanwell Meanwell
IP Code IP65 IP65 IP65 IP65 IP65
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
Working Temp -40 -70°C -40 -70°C -40 -70°C -40 -70°C -40 -70°C
Beam Angle 25°/ 45°/ 60°/ 90°/ 145°
Body Material: fin shape aluminum +copper tube
Certification: CE, FCC,ROHS,CB, ETL

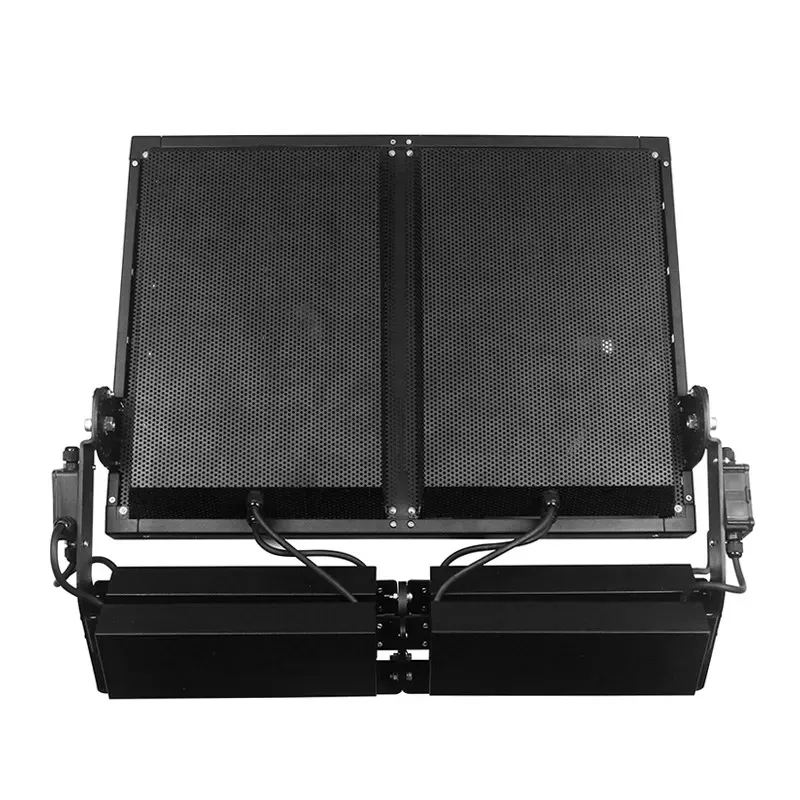

Details


 1000w flood light
-Die-cast Aluminum is combined with the 1060 aluminum fins.
-Optical tempered glass lens, very wide beam angle.
-Surface powder treatment, with anti corrosions & anti-rust functions.
-IP65, dustproof and waterproof, to meet all kinds of outdoors harsh environment requirements.
-Surge protection: 6KV.
-100W x 10pc Standard LED module, modules and drivers are easy to replace.







Installation





Factory






Applications

1000w stadium light widely used in Architectural lighting, area lighting, tunnel lighting, warehouses, high mast lighting, football stadium lighting, swimming pool, car parks, production lines, exhibition halls and etc.








Packaging

300W Product size:516*388*209mm
Box Size(1pcs):59*51*25CMN.W:11.2KG G.W:12.8KG
400W Product size:608*418*209mm
Box Size(1pcs):68*51*25CMN.W:13.5KG G.W:15.4KG
500W Product size:700*418*209mm
Box Size(1pcs):79*51*25CMN.W: 15KG G.W:17.4KG
600W Product size:516*754*209mm
Box Size(1pcs):83*59*25CMN.W: 22KG G.W:25.5KG
800W Product size:608*754*209mm
Box Size(1pcs):83*69*25CMN.W:24KG G.W:26.5KG
1000W Product size:700*754*209mm
Box Size(1pcs):83*79*25CMN.W:28.5KG G.W:32KG
