IP65 Outdoor Waterproof Aluminum 500W 600W 1000W 1200W LED High Mast Light Industrial LED Flood Lights
Features
500W 600W 1000W 1200W LED High Mast Light
1. LED module design, 500W-1200W multi-Power optional
2. Unique and attractive design with high brightness, low light decline
3. Use Cold forging high thermal conductivity 6030 Aluminum for optimal dissipation effect.
4. Use Lumileds chip 140lm/W and Meanwell driver to ensure stable performance and long lifetime.
5. Multi-optional optical lens, 10°/25°/45°/60° Beam angle are available.
6. Instant ON/OFF , Waterproof rating IP66, IK Rating IK08 and 10KV Lightning protection device.
7. Not heavy weight for transportation, professional optical design, Easy to install and use , secure and reliable.
8. Extremely long life reduces re-lamp frequency, high heat conductivity, Low heat generation and no heat damage to achieve ideal display lighting, Low power consumption, can best save energy and maintenance cost.
9. Compared with traditional lighting fixtures can Save 80% more energy.
10. Outstanding resistance to corrosion for 5000-hours salt spray test
11. 5 years warranty, TUV CE SAA approved.
Specification
500W 600W 1000W 1200W LED High Mast Light
|
Power
|
500W
|
600W | 1000W | 1200W |
|
Lumen
|
70000LM
|
84000LM | 140000LM | 168000LM |
|
G.W
|
18KG
|
18.5KG | 33KG | 35KG |
|
Input Voltage
|
100-277V/347-480V
|
|||
|
Power Factor
|
>0.95
|
|||
|
CRI
|
≥75Ra, or ≥90Ra
|
|||
|
Driver
|
Meanwell
|
|||
|
Beam Angels
|
10°/25°/45°/60°
|
|||
|
CCT
|
3000K/4000K/5000K/5700K/6500K (others available)
|
|||
|
Dimming Options
|
0-10V dimming / Zigbee wireless dimming available
|
|||
|
Zigbee Control
|
On/off, dimming, color turning, grouping, status monitoring, remote control etc (via APP)remote control etc (via APP)
|
|||
|
Photocell
|
Twist-lock photocell available
|
|||
|
SPD
|
20kV SPD standard (40kV optional)
|
|||
|
IP Rating
|
IP67
|
|||
|
Operating Temp
|
-40°C- 40°C / -40°F - 104°F
|
|||
|
Lifespan
|
>100,000 Hrs (L70 @ 25°C)
|
|||
|
Warranty
|
7-year warranty for 100-277V version, 5-year warranty for 347-480V version
|
|||
|
Certificates
|
ETL TUV SAA DLC
|
|||
Details

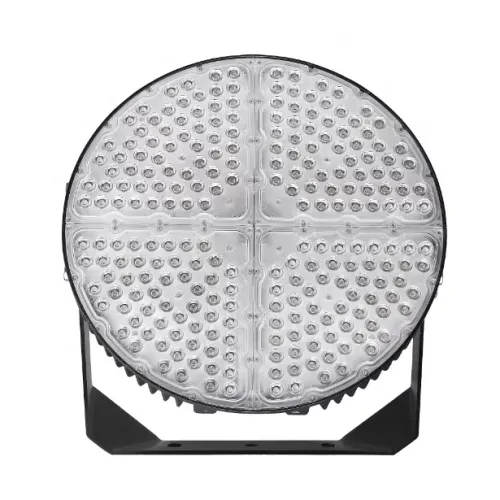

500W 600W 1000W 1200W LED High Mast Light
Qualified Meanwell driver and LUXEON 5050 SMD 140LM/W

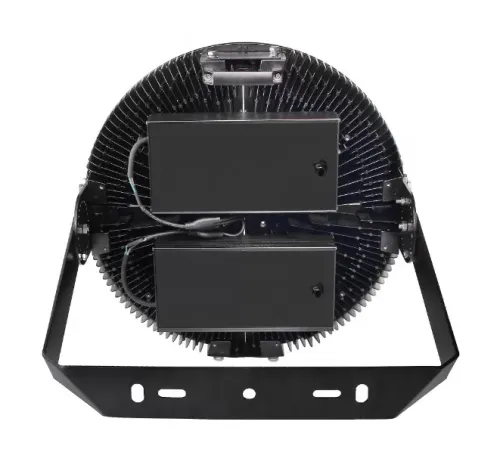

Excellent thermal performance, copper heatpipe and aluminum fins
Save 80% energy compared with traditional bulb or halogen lamp
High-intensitive glass and die casting aluminum, low maintenance costs
5 years warranty with OEM/ODM service
Application: Suqare, Wharf, Sport Stadium, Golf Course etc.
Superior high output, a variety of lighting distributions, UV stabilized materials, meeting demands of various applications.
Applications

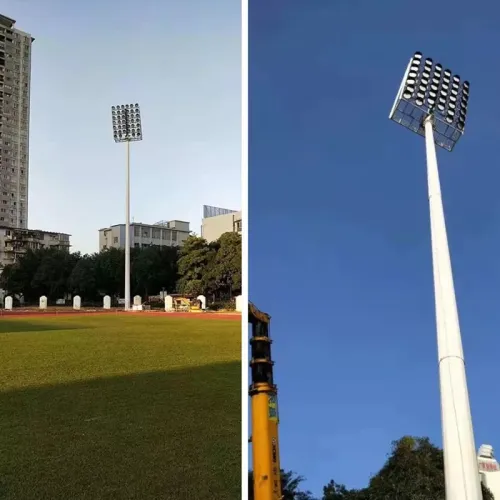

500W 600W 1000W 1200W LED High Mast Light Industrial LED Flood Lights widely used for high mast lighting, stadium lighting, sports court lighting, port lighting, etc.
Packaging
1 unit per Neutral packing box
Standard export packaging
