IP66 Airports Parking Lots Seaports Industrial LED Flood Lights High Mast Light

IP66 Industrial LED Flood Lights High Mast Light
  • Specification:
    Lamp Power: 100W 150W 200W 300W 400W
    Input Voltage(V): 90-265VAC
    Luminous Efficiency: 120LM/W
    LED Source: 5050 OSRAM
    Driver: MEANWELL Driver Or SOSEN
Description
Description

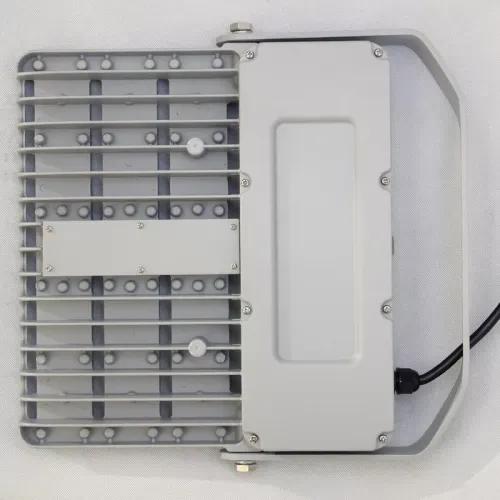

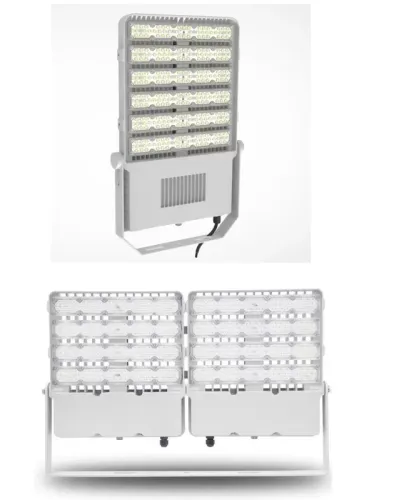

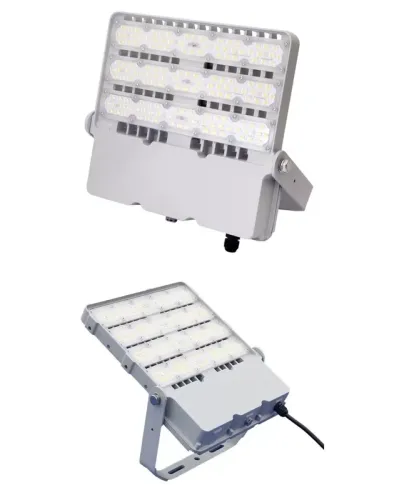

IP66 Airports Parking Lots Seaports Industrial LED Flood Lights High Mast Light




Description

MINSENS High power LED outdoor flood light specially designed for the lighting system of port terminals ( port cranes and high mast tower), mines,sport stadium and large buildings



Features



Integrated module and professional lens optics design
Professional fin-plate thermal design, pass through the thermal simulation
Entire light weight structure design
2 degree dip angled backside structure design to avoid dust accumulation
Scientific layout and photoelectricity separation design
With protective vent to avoid led chips overtemperatured
Specialized vibration resistance components and ingress protection design
World renowned brand led chips and power driver
Self-design (optics, electricity, thermal, structure, mould)
Bi-direction 350 degree adjustable mounting bracket
With safety chain to improve the safety protection capacity





Specification

Industrial flood light



power consumption 100W 150W 200W 300W 400W voltage ac100v~ac240v
cct 5500k-6000k cri 5500k-6000k
3000k-3500k ra≥75
≤2700k <2700k/3000k-3500k
  ra≥80
light efficacy 90 lm/w frequency 50hz~60hz
lifetime ≥50,000hrs pf >0.9
beam angle 15 /25 /60 /90 /120 humidity 10% ~ 95% (no coagulation)
weight 19kg material body:aluminum
len:pc

working temperature -30 ~ +60 ip class ip65





Details




1)All imported light source, High quality lanthanide three primary colors lamp, with high light efficiency and low decline. No stroboflash. It can protect your vision and prevent you from myopia

(2)The light with high luminous efficiency/energy-saving/good heat sinking panel/excellent color rendering and the power factor>0.95. Constant current, constant voltage.

(3)Use high quality Cold-Roll Steel Sheet, The surface dealed with phosphating, then Electrostatic Spray. It looks more beautiful and durable. Super penetrator, Soft and even light, no ultraviolet and infra-red radiation.

(4)Unique adjustable beam angle that ensure wide lighting area, high brightness.

(5)Perfect seal the bottom and the surface, waterproof and dustproof.

(6)This light produces no UV and IR radiation. Hence it is harmless to human health and eyes. Meanwhile It is completely Green product. Eco-friendly.

(7)Good Chip, Power supply. High lumens. High intensity and brightness. Long lifespan. We can support you 3-5 Years warranty.





Installation



Secure the light on a smooth surface which has enough strength with m12 screws, it a must to equip with anti-off nuts.
Fix the safety chain at the appropriate place where has enough mechanical strength
Correctly connect the lead wire to l, n, pe of the power supply
Power it on to work




Applications

High Mast 100w 150w 200w 300w 400w Industrial LED Flood Light Widely used in workshop, factory, station, hypermarket, exhibition, center, gym, park lighting, garden lighting,Building lighting, Advertising board, outdoor advertisement ,wall ,gymnasium,tower cranes, shipyards, buildings, wharfs, stadiums and so on.











Packaging


1 unit per Neutral packing box

Standard export packaging
