IP66 IK08 50W 100W 200W Waterproof Outdoor LED Flood LightsProduct Description♦ HIGH EFFICIENCY & LOW LIGHT DECAY SOURCE.
- Outdoor Led electric flood light uses super bright and high lumen SMD 2835 LEDs to make high light efficiency 140-150lm/W, saving more than 90% of power. It adopts constant current driver inside, able to adopt various famous brand driver as required, available to make 30w, 50w, 100w, 150w, 200w, 300w and 400w, 500w, 600w.
♦ SELECTABLE BEAM ANGLES:
- Updated flood light offers 30, 60, 90 120, and even T2,T3, T4, T5 adjustable beam angles for different directions and applications.
♦ DUABLE DIECASTING ALUMINUM SHELL FOR BETTER HEAT SINKING:
- High density and thick ADC die-casting aluminum, faster heat sinking, Sunrise outdoor LED flood light is treated with graphene coating, which has better thermal conductivity and stronger weather resistance, heavy weight, efficient heat dissipation, and extended service life. This outdoor light also comes with a thickened metal bracket and a 19.68 inch cable, easier installation better working.
♦ SMART FUNCTIONS AVAILABLE:
- Based perfect performance, the LED flood light can be considered to produce smart functions: 0-10 dimming, Triac dimming, Dali dimming, Movement sensor, microwave radar sensor, or daylight / photocell sensor, DMX512, 3 cct and power switchable etc.
♦ HIGH PERFORMANCE DRIVER:
- LED flood light adopts constant current brand driver with stable performance and short circuit protection, able to meet power factor 0.95, perfectly meeting full load power consumption. Moreover, brand drivers are available. Non-isolated and isolated drivers are available.
FeaturesHigh quality tempered glass
Has a self-clearing function. UV protoction
Various lenses
Suitable for all kinds of places
High quality
Die-casting aluminum housing. integrated cooling structure
Thickened and a bracket more stablty
Product Parameters
|
|
Outdoor Project Led Flood Light
|
|
Rated Power
|
30W
|
50W
|
100W
|
300W
|
|
Dimension
|
198*194*42
|
290*230*48
|
310*300*53
|
430*400*58
|
|
Luminous Flux
|
4200-4500LM
|
7000-7500LM
|
14000-15000LM
|
42000-45000LM
|
|
Optional Power
|
50w, 100w, 150w, 200w, 300w, 400w, 500W, 600W
|
|
Work Voltage
|
AC120-277V, 12-24V AC / DC
|
|
Efficiency
|
100-110lm/W or 140-150LM/W
|
|
Driver Mode
|
Constant current driver, isolated or non-isolated (Brand driver available)
|
|
LED Source
|
smd2835 super bright chip (Brand chip)
|
|
CCT
|
2500K, 2700K, 3000K, 4000K, 5000K 5500K, 6500K
|
|
SDCM
|
≤5
|
|
THD
|
≤20%
|
|
Material
|
Die-casting aluminum + tempered glass
|
|
Beam Angle
|
30°, 60°, 90° , 120°, T2, T3, T4, T5
|
|
CRI
|
>70Ra
|
|
PF
|
>0.9
|
|
Finished Color
|
Black
|
|
Surge Protection
|
6KV / 10KV
|
|
Protection Level
|
IK08 / IP66
|
|
Work Temperature
|
-35 ~ +50°C
|
|
Storage Temperature
|
-40 ~+50°C
|
|
Lifespan
|
L80B50 @ 70000Hrs
|
|
Warranty
|
3 years or 5 years
|

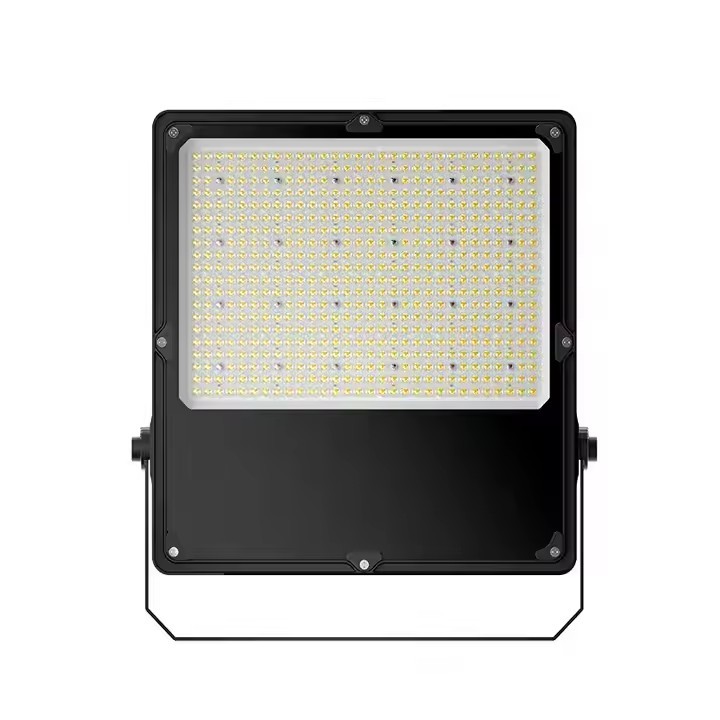

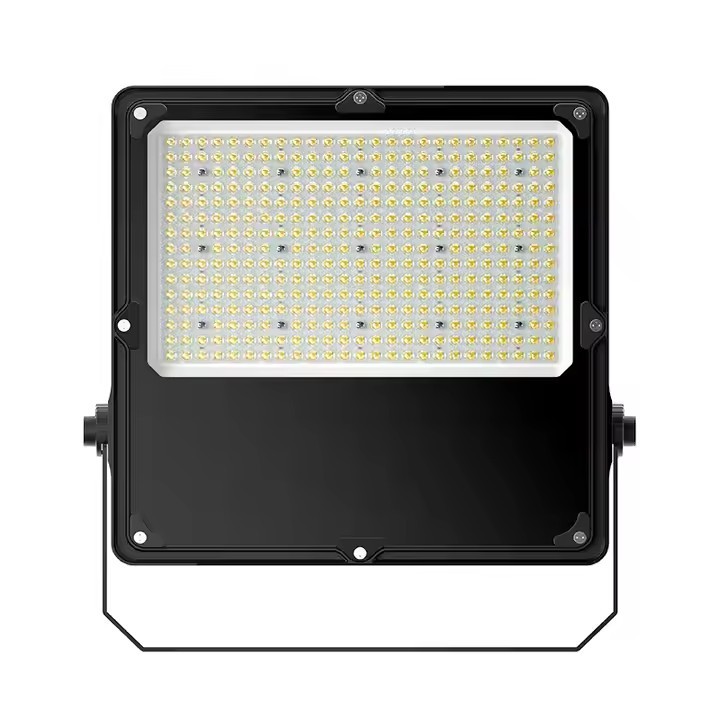

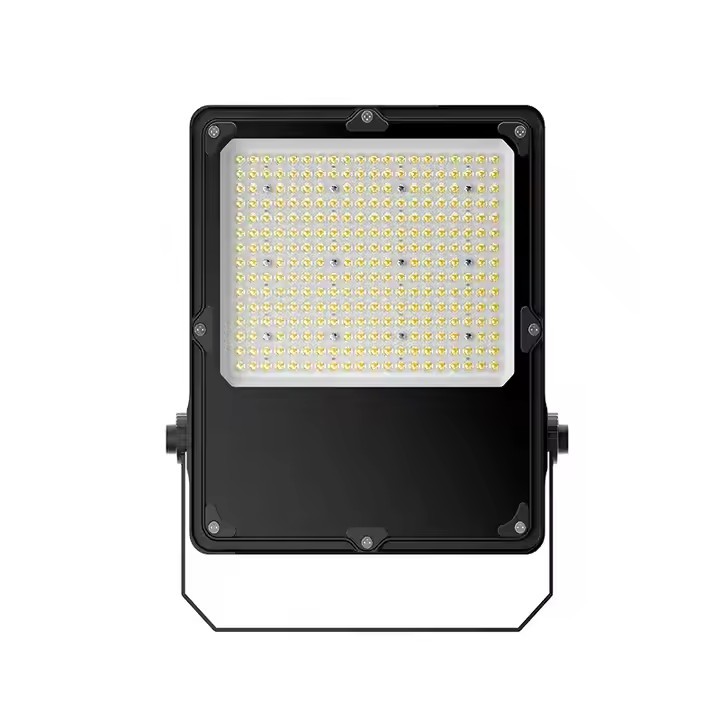

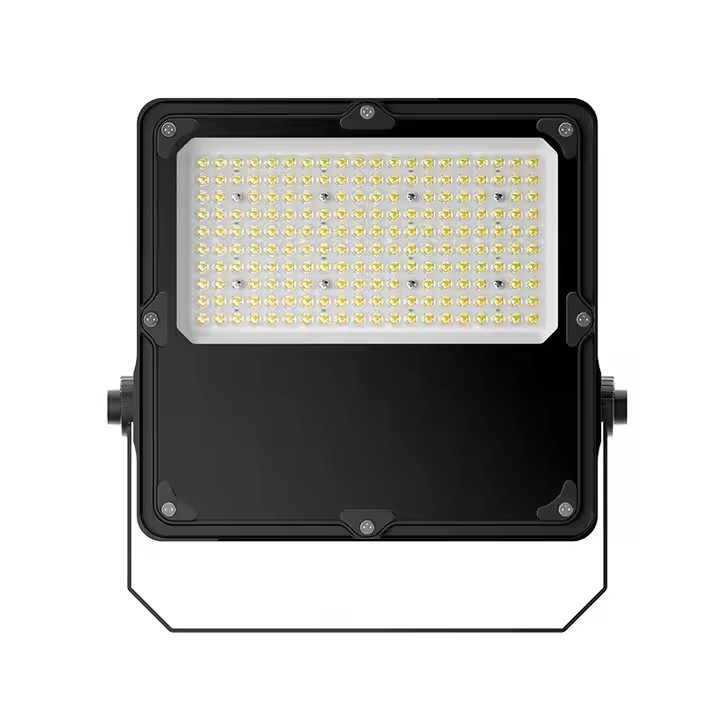

Detailed Photos
ApplicationsBecause of the high lumen brightness output, the floodlights can be applicable for many applications such as
street, road, stadium sport fields, tennis court, football, baseball, volleyball, airports, harbors, squares, sign, advertisement,
warehouse, logistics center, metro station etc.
Certifications
