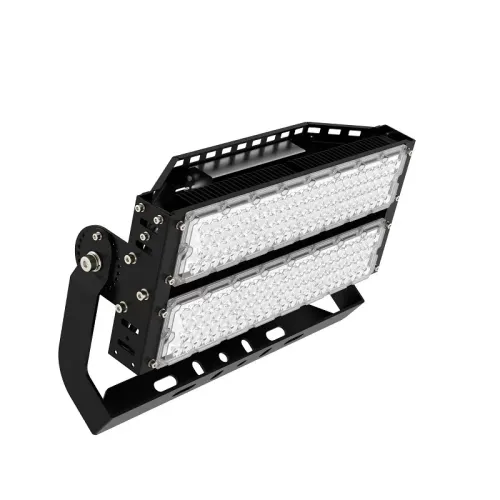

LED Soccer Field Stadium Flood Light 500W Outdoor LED High Mast Fixture

500W 150000Lm Outdoor LED Flood Lights For Soccer Field
  • Specification:
    Input Voltage(V): AC 100-277V 50/60Hz
    Luminous Efficiency: 150000Lm
    LED Source: 5050 OSRAM Or Philips
    Driver: MEANWELL Driver Or SOSEN
    Warranty: 5 Years
Description
Description

LED Soccer Field Stadium Flood Light 500W Outdoor LED High Mast Fixture





LED Soccer Field Stadium Flood Light . It is an modular design with maxium 3 modules 1000w power. Each module can be made as 150W or 300W, for 150W use 72pcs CREE XT-E chips, for 200W use 96pcs CREE XT-E chips. With power range 150-1000w, this excellent Flood Light version could replace HPS Flood Light 400W-2500W.

Equipped with different beam angles 25°, 40°, 60°,120°, this version can be widly used as outdoor flood lighting, tunel lighting, high poles lighting and focus lighting.



We supply 5 years warranty.



LED LUMINOUS SOURCE



EL-FL18 series are generally equipped with CREE XT-E LED Chips. The finished system efficiency can reach 107lm/w, CCT 4000K-5700K, Ra>70.



LED DRIVER



Full range EVERLITE LED food lights are utilizing MEAN WELL/ INVENTRONICS high end driver, great luminous stability, long lifespan, 7 years warranty and optional performance status. Input Voltage: 90-305V/160-265V, PF>0.95.







Features



Sports Lighting 1000w LED Flood Light



1. 10 beam angles for option, mini angle 8°, angle adjustable;

2. PMMA Lens+glass infront, UV+Yellowing+High temperature resistance;

3. Modular design, wattage can be customized;

4.Philips 5050 led, Meanwell Driver.

5.ENEC approved;Dialux available









Specification




Product Name LED Soccer Field Stadium Flood Light 500W Outdoor LED High Mast Fixture
Model ST-FL-Y09
Power Comsuption 1000W
LED Code 150/200/300/400/500/600/800/1000W
Lamp Rated Lumen output 110000m (Lumen tolerance +/- 5%)
Lamp Rated Luminous Efficiency 120lm/w
Color Rendering Index Ra>70
Color Temperature 2700-7000K
Driver Brand Mean Well/Inventronics
Input Voltage 90v-305v AC/12-24v DC
Power Efficiency >90%
Power Factor >0.95
Surge Production Class 3KV/6KV/10KV/20KV
IP / IK IP66/ IK08
Working Environment Between -40℃~50℃,10%~90%RH
Total Harmonic Distortion <15%
Life Span and Warranty 50000 hours/ 5 years
Wind Index Force 12
Body and Shell Materials Aluminum Alloy
Optional Function 0-10V DC or PWM Signal or Resistance Dimming
Timer/ Photocell Contral
Certificates CE, ROHS, CB, ENEC, IEC, GS, TM21, LM-79, LM-80
Fixture Dimension 830x760x210mm
Fixture Weight 39kg
Packing Dimension 850×780×230mm/ 1pc
Packing Weight 40kg







Details


1. LED module design, 500W-1500W multi-Power optional

2. Unique and attractive design with high brightness, low light decline

3. Use Cold forging high thermal conductivity 1070 Aluminum for optimal dissipation effect.

4. Use Lumileds chip 140lm/W and Meanwell driver to ensure stable performance and long lifetime.

5. Multi-optional optical lens, 10°/25°/45°/60°/90° Beam angle are available.

6. Instant ON/OFF , Waterproof rating IP66, IK Rating IK08 and 10KV Lightning protection device.

7. Not heavy weight for transportation, professional optical design, Easy to install and use , secure and reliable.

8. Extremely long life reduces re-lamp frequency, high heat conductivity, Low heat generation and no heat damage to achieve ideal display lighting, Low power consumption, can best save energy and maintenance cost.

9. Compared with traditional lighting fixtures can Save 80% more energy.

10. Outstanding resistance to corrosion for 5000-hours salt spray test








Applications



LED Soccer Field Stadium Flood Light



1. Football field, basketball court, tennis court, playground and stadium lighting.

2. Parking lot and airport lighting.

3. Highway and Railway lighting.

4. Bridge and culvert lighting.

5. Square, garden, and building lighting.
Widely used in factory, gymnasium, billboards, buildings, lawns, landscaping, offices, the site of light project and decorative lighting project etc.











Factory





Packaging

Paper package

1pc/CTN
