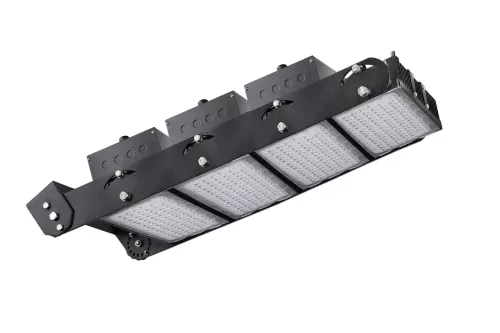

LED Stadium Flood Light IP67 800W 1000W high mast led flood light

Black Housing 150lm/w SMD 5050 LED Stadium Flood Lights
  • Specification:
    Item: LED Stadium Flood Light
    Lamp Power: 250W 500W 750W 1000W
    Input Voltage(V): 90-277VAC
    Luminous Efficiency: 150lm/w
    Driver: Meanwell ELG Or XLG
    Warranty: 5 Years
Description
Description

LED Stadium Flood Light IP67 800W 1000W high mast led flood light




Features



Perfect Light Distribution Solution


LED Stadium Flood Light lens is our own independent research and development of open mold products, has made major technological breakthroughs in the process.
Lens achieved high-quality goals such as low light attenuation, high illumination, and good heat dissipation. > 160 LM / W, 10,000 hours light decay <8%.
Adoption of integrated shell optic lens, enhance the brightness and illumination uniformity. Anti-glare and uniform light level to avoid any visual discomfort.



Die Cast Aluminum Alloy


aluminum alloy die-casting with high thermal conductivity. The wavy shape of the heat dissipation increases the heat dissipation area and forms good convection with the surrounding air. The operating temperature does not exceed 65 degrees, thereby ensuring the stability and long life of the lamp ;
Excellent self-cleaning function, the design of the curved heat sink and drainage groove is conducive to the sliding of dust, rain and snow, and the dust on the surface is more easily carried away by rain.
Absolutely unique mold,make your lighting special and fantastic.


Photocell Sensor Available


The twist-lock type photocontrols are manufactured as per UL773 and ANSI C136.10 standards. They are mainly used in controlling
the outdoor lighting fixtures with mating receptalces automatically. If the photo control is temporarily not to be used, the
shorting cap can be used instead.

Earlier turning-off in dawn for saving more energy, easy-to-maintain Twist-lock (ANSI C136.10) & Fail-On mode

IP65 protection while installed (5-20 seconds time-delay switching-off for luminaires protection)






Specification

led outdoor stadium lighting for gymnasium



Product model We can do color 5050Lamp bead Lens Angle Net weight (KG) Carton size (MM)
250W Black/silver 98pcs Lens 10, 25, 45, 60 degrees 10.9 kg 440*495*230
500W Black/silver 196pcs Lens 10, 25, 45, 60 degrees 15.9 kg 620*495*230
750W Black/silver 294pcs Lens 10, 25, 45, 60 degrees 20.9 800*495*230
1000W Black/silver 392pcs Lens 10, 25, 45, 60 degrees 25 .9kg 980*495*230
1500W Black/silver 588pcs Lens 10, 25, 45, 60 degrees 40 kg 940*900*230
2000W Black/silver 784pcs Lens 10, 25, 45, 60 degrees 55 KG 940*900*230





Details


LED Stadium Sports lights



1. 5050 LEDs, flip chip technology, single unit’s damage won't affect others' normal work
2. Honeycomb briquette effect heat dissipation principle, best thermal management system, the whole structure cooling technology
3. Designed to last at least 50,000 hours at L70
4. Different power versions: 300W, 360W, 1000W
5. Higher waterproof level, hot-pluggable, easy for installation and replacement
6. Easy tool onsite maintenance and repair
7. Free modular serialization and full power range solution
8. Intelligent constant current driving technology to guarantee the safety of LED use








Factory






Applications


Module Design 400W 480W High Mast Flood Light Led Outdoor Stadium Lighting
Leyond High Mast Lights Project in Spain, Philipine, Argentina, etc...







Packaging


1 unit per Neutral packing box

Standard export packaging
