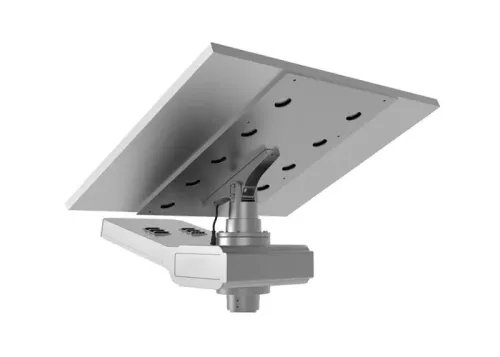

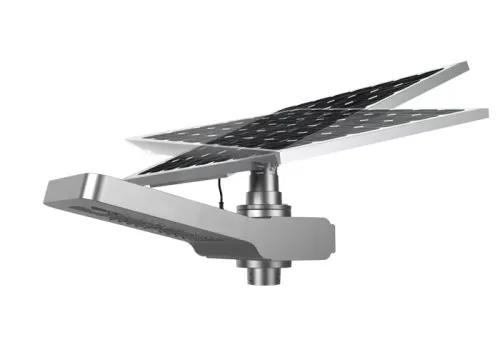

LED Street Light With Solar Panel Motion Sensor Automatic Control IP65 Waterproof
Features
1. Beautiful and modern appearance, simple and fashionable.
2. Use of solar green energy, environment friendly, saving more.
3. Low voltage driving, meet the Europe standard of CE RoHS FCC.
4. No Hg, Pb or other hazardous materials, no radiation, human safety.
5. IP65 grade, TVS lightning protection.
6. Long lifetime of whole lamp, low maintenance costs.
7. Wireless application-Integrated solar panel, LED, lithium battery, micro-controller and other
accessories into one system, simple and stylish.
8. Micro-computer controlled-Combine light control system and time control system perfectly, ensure whole system more energy-efficient.
9. Easy installation-No power required, no cables required, easy installation in 5 minutes.
10. Solar panel angle adjustable-Adjustable in vertical and horizontal direction, ensure maximum efficiency of solar energy conversion.
11. Lithium battery-Adopt lithium battery to replace traditional gel battery, longer lifetime.
12. Modular design-All components are modular design and in standardized production. Battery can be easily replaced if needed.
13. Low cost-Compared with traditional solar led lights, much lower cost, easy to transport.
14. Good heat dissipation-Solar panel, battery and light body do not connect directly, they will not conduct heat to each other, to support good heat dissipation and long lifetime.
15. Extreme light-Light efficiency reach 160lm/w, at same illumination, lower watt available.
Specifications
| led street light with solar panel | ||||||
| Type | MS-NH50 | MS-NH65 | MS-NH80 | MS-NH100 | MS-NH150 | MS-NH200 |
| Lamp power | 15W | 20W | 30W | 40W | 50W | 60W |
| Solar panel | 50W 18V | 65W 18V | 80W 18V | 100W 18V | 150W 18V | 200W 18V |
| Lithium battery | 170WH 12.8V | 212WH 12.8V | 340WH 12.8V | 424WH 12.8V | 610WH 11.1V | 808WH 11.1V |
| LiFePO4 battery | LiFePO4 battery | LiFePO4 battery | LiFePO4 battery | Termary battery | Termary battery | |
| LED qty | 40pcs | 40pcs | 60pcs | 60pcs | 60pcs | 60pcs |
| Luminous flux | 1800-2100lm | 2500-2800lm | 3600-4200lm | 5000lm-5600lm | 7500-8000lm | 8400-9000lm |
| Charge time(full sunlight) | 5.5hrs | 5.5hrs | 7hrs | 7hrs | 6.5hrs | 6.5hrs |
| LED chip | Bridgelux | |||||
| Color temperature | 3000-6500K | |||||
| CRI | >70Ra | |||||
| Light control voltage | 5V | |||||
| Light distribution | Bat wing with polarized light | |||||
| Lighting time | 2-3days | |||||
| Sensor distance | 5-12m | |||||
| Sensor time | 20-30s | |||||
| Working temperature | -20 - 60℃ | |||||
| Lifetime | >50000 hours | |||||
| Material | High quality aluminum alloy, die-cast aluminum | |||||
| Pole top diameter | 76mm | |||||
| Mounting height | 5-10 meters | |||||
| Installation spacing | 10-30 meters | |||||
Details
Installation
The first step: the rotating member is fixed to the solar panel bracket
The second step: the roof and solar panels partially fixed
The third step: the solar panels fixed on the lamp body, while receiving a good waterproof connector
The fourth step: the overall fixed on the pole
Applications
Parks and Reserves
Remote Areas & Bush land
Pedestrian & Rail crossings
Commercial & Industrial estates
Jetties, Pontoons & Boat Ramps
Security & Perimeter Lighting
Bike Pathways
Mine sites, Street, Road, Pathway, Highway
Packaging
Standard export packaging or customized according to customer requirements
