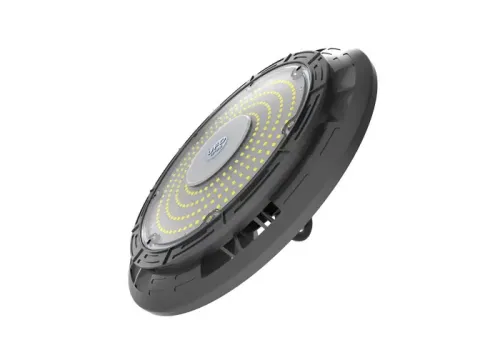

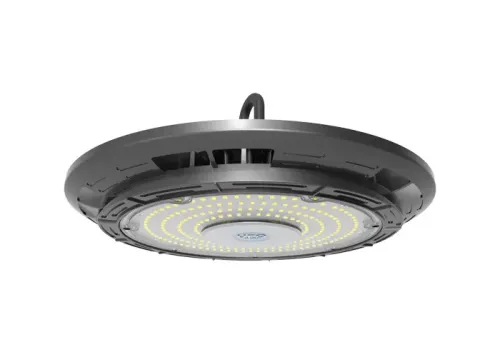

LED UFO High Bay Light 150w 200w 240w For Industry Factory Replacement Indoor And Outdoor
Features
1. CE, RoHS, SAA, UL, TUV, cUL, CB certified.
2. Low power consumption, high luminous efficiency and energy saving.
3. Easy to install and use, hook mount.
4. No risk of mercury emission, No UV or RF interfcernce, No mercury or lead , environmental protection
5. High heat conductivity, low luminous decay, pure light color and no ghosting.
6. Integrative design for heat sink and housing; The LED is closely connected to the surface; The heat 7. 7. From the LED is removed through the heat dissipation wing and also by air ventilation.
Specifications
| Power(w) |
150W |
200W |
240W |
| Voltage |
AC 90-305 |
AC 90-305 |
AC 90-305 |
| Power factor |
≥0.95 |
≥0.95 |
≥0.95 |
| Dimmable |
No |
No |
No |
| Lumen(lm) |
>19000 |
>24000 |
>28000 |
| Color temperature |
Warm white:2700K-3200K & Nature white:4000K-4500K & Cool white: 6000-6500K |
| CRI (Ra>) |
>80 |
>80 |
>80 |
| Beam angle |
40°/ 60° / 90° / 120° |
40°/ 60° / 90° / 120° |
40°/ 60° / 90° / 120° |
| LED chip |
245pcs LED 3030 |
3030 SMD |
360pcs LED 3030 |
| Waterproof Rating |
IP65 |
IP65 |
IP65 |
| Working Temperature(℃) |
-40~+60 |
-40~+60 |
-40~+60 |
| Lamp efficiency(lm/w) |
130LM/W |
130LM/W |
130LM/W |
| Light degradation rate |
25000h ≤ 30% |
25000h ≤ 30% |
25000h ≤ 30% |
| Working lifetime(h) |
50,000 |
50,000 |
50,000 |
| Driver Brand |
SOSEN |
SOSEN |
SOSEN |
| Lamp body material |
Aluminum |
Aluminum |
Aluminum |
| Dimensions (mm) |
Φ325X188 |
Φ350*55 |
Φ400X205 |
| Certification |
CE, UL, DLC, TUV, ROHS |
| Warranty |
5 years |
5 years |
5 years |
| Installation Type |
Hook hanging or Chain Hanging or Mount suface Hang or Pole Hanging |
| Application |
Station, Marketplace, Factory, Workshop,Warehouse, Airport, Gymnasium Waiting room |
Applications
Warehouse Lighting, Factory Lighting, Industrial Lighting
Garage Lighting, Workshop Lighting
Outdoor Area Lighting, High Mast Lighting
Supermarket Lighting, Store Lighting
Tunnel Lighting, Bridge Lighting
Gas Station Lighting
Details
240W 6 m illumination simulation map
Packaging
Packing Material:Neutral packing with strong corrugated paper cartons,in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS
