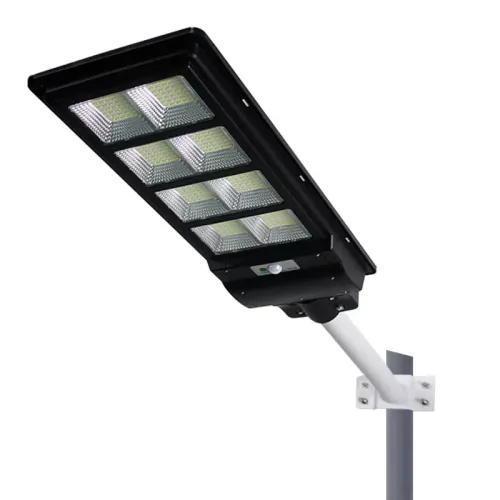

LifePO4 Battery IP65 70w 100w 140w Integrated Solar Led Street Light

Integrated Solar Led Street Light
  • Product:
    Integrated Solar Led Street Light
Description
Description

Waterproof Ip65 70w 100w 140w Integrated Solar Led Street Light









Features



integrated solar street light



Elegant Integrated Design,ABS case
Night sensor + PIR motion sensor
Easy to install and Auto on/off/PIR





Integrated design without stay wire, easy installation, low cost in transportation, several installation methods are provided, and the lamp post can be local materials, such as the iron post, wood, bamboo, plastics and so on;
Using solar energy to save electric energy to protect resources on earth;
The Li-battery with high capacity and long using time is applied, and the using time can be 8 years;
Stay wire is not needed, and the installation is quite easy;
Using the alloy material to build the main structure, which has good performance in rust protection and anti-corrosion.
The modular design conception is adopted, which makes the installation, maintenance and repair much easier;
Segmentation power control. In the midnight, there will be little people on roads, the solar light can reduce the brightness to save energy and increase the practicability.
Best components are used in the production of the integrated solar street light, and it will work for long period after installation;



1. ABS anti-UV engineering plastic housing, high strength, good toughness, effective anti-rust;

2. High Efficiency polysilicon Solar Panel; Light time 12H a night, 2~3 rainy days;

3. Adopt high-capacity Lithium iron phosphate battery, the cycle usage of batteries up to 500 times;

4. Solar panel angle can be adjusted to increase solar conversion efficiency; wider receive sunlight all year;

5. Using light control system, turn on when dark, turn off when days

6. Easy installation: It only have a light head and solar panel, you just need to install it one the pole, it will work. No cable;

7. Optional: Remote Control.





Specifications



integrated solar street light



Item Code Wattage Solar Panel Lithium battery capacity Lumens Recommended installation height Product size(mm) Boxed weight Kg Warranty
MS-ABLB-70W 70W 6V 10w 3.2V12AH 5600LM 3-4m 520*240*53mm 48.5*31.5*53.5cm/CTN 2
MS-ABLB-105W 105W 6V 15W 3.2V18AH 8400LM 3-5m 630*240*53mm 51.5*31.5*64.5CM/CTN 2
MS-ABLB-140W 140W 6V 20W 3.2V24AH 11000LM 3-6m 740*240*53mm 53.5*33.5*75/CTN 2







Details



all in one led solar street light




Led:280Pcs SMD 5730 140W

Li-ion battery:3.2V 20AH

Solar Panel (high efficiency mono):6V15W

Material:ABS+PC

Size:740*240*53MM




Led:210Pcs SMD 5730 105W

Li-ion battery:3.2V 18AH

Solar Panel (high efficiency mono):6V12W

Material:ABS+PC

Size:630*240*53MM



Led:140Pcs 5730 SMD 70W

Li-ion battery:3.2V 12AH

Solar Panel (high efficiency mono):6V8W

Material:ABS+PC

Size:520*240*53MM







Applications



all in one integrated solar street light can be application at :
Sid of the road ,street
Foggy area (seaside,airport area)
Highway
The Ramp,corner
Curve road







Packaging



Packed the solar street light in carton box separately. one piece led street light in one carton box
