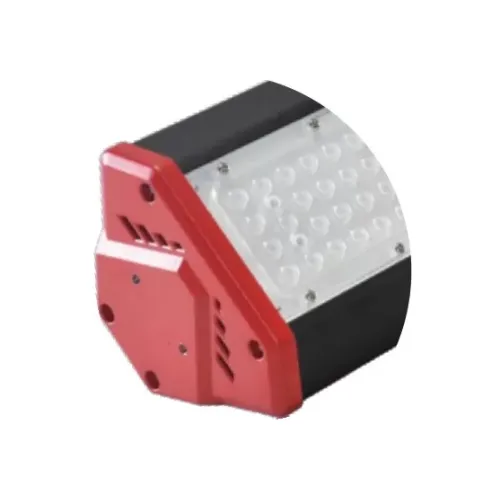

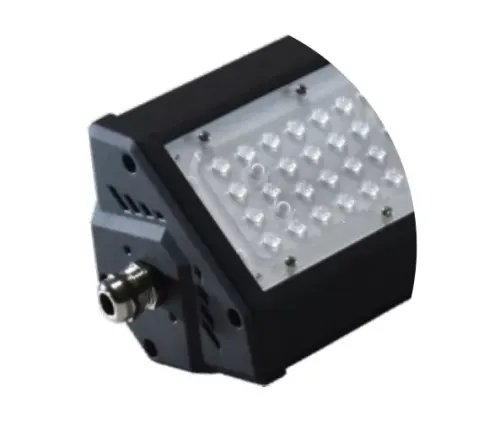

Linear Highbay IP65 Warehouse Linear High Bay Lamp 50w Supermarket Led Linear Light Fixture

Linear Highbay IP65 Warehouse Linear High Bay Lamp
  • Specification:
    Input Voltage: AC90-305V/249-548V
    Luminous Efficiency: 140Lm/W
    LED Source: SMD3030
    Lamp Body Material: Aluminum
    Total Harmonic Distortion: <15%
    Beam Angle: 30X70 60X90 40X130 120
    Application:: Warehouse Stadium Factory
Description
Description

Linear Highbay IP65 Warehouse Linear High Bay Lamp 50w Supermarket Led Linear Light Fixture





Features



1 Excellent Heat Dissipation: Unique Designed Heatsink Structure is made of High Quality Extruded Aluminum, which ensures good heat dissipation;
2. Lumen Efficiency :> 130lm/W
3. Meanwell Driver, IP65, Waterproof, for Both Indoor and Outdoor.
4. Different Beam Angles: 45°, 90°, 120°
5. Installation: Suspending, Ceiling
6. Max. of 4 pcs can be fixed together as one lamp.





Specification



Model No. MS-LHA- 50W MS-LHA- 100W MS-LHA- 150W MS-LHA- 200W
Watt 50 100 150 200
CRI 80 80 80 80
IP IP65 IP65 IP65 IP65
PF >0.95 >0.95 >0.95 >0.95
Input Voltage AC100-277V AC100-277V AC100-277V AC100-277V
Lumen 7400lm 12800lm 18200lm 24800lm
LED Chip 84SMD3030 168 SMD3030 252 SMD3030 336 SMD3030
Size (mm) L275*W102*H66 L518*W102*H66 L764*W102*H66 L1017*W102*H66
Material Aluminium Aluminium Aluminium Aluminium
Beam Angle 15°/40°/ 60° 15°/40°/ 60° 15°/40°/ 60° 15°/40°/ 60°
/90°/70°/30° /90°/70°/30° /90°/70°/30° /90°/70°/30°



Details



1 High lumen ,can reach 140lm/W
2 Different beam angle, meet different using enviornment, Especially Asymmetric light distribution.
3 MEANWELL brand power supply, 5 to 7 Years warranty,
4 IP65 protection, compliance with any wet and dust application environment.
5 Suspend & mounted installation.
6 Function is available, Motion Sensor, Daylight sensor and ZigBee.
7 Each module is rotatable, could be adjusted on site.









Applications



The high bay fixtures are ideal for Convention Centers, Cold Storage,Warehouses, Aviation Hangars, Big Box Retail Stores, Manufacturing Facilities Gymnasi-ums, Parking Lot.





Installation



Packaging



Standard export packaging or customized according to customer requirements
