Modular Design 140lm/W Football Field Tennis Court Sports Stadium 500W LED Sports Field Lighting

Sports Stadium 500W LED Sports Field Lighting
  • Specification:
    Item: LED Sports Field Lighting
    Lamp Power: 250W 500W 750W 1000W
    Input Voltage(V): 90-277VAC
    LED Source: SMD 5050
    Driver: Meanwell ELG Or XLG
    Application: Football Field Tennis Court Sports Stadium
Description
Description

Modular Design 140lm/W Football Field Tennis Court Sports Stadium 500W LED Sports Field Lighting




Features



1.Exclusive lens with light transmittance up to 98%.
2.intergrated shell opyic lens
3.10/25/60 degree beam angle options for the Lens
4.Scientifically- Designed heat disippater
5.Whole lamp output light efficiency>160LM/W
6.Input voltage AC95-265V,The power efficiency is more than 90%,power factor greater than 0.98
7.Impact Resistance,Shockproof,Without Ultraviolet(UV) and Infrared(IR) Radiation




Specification

LED Sports Field Lighting



Technical data:
Item name 500W LED Sports Field Lighting
Power 500W
Light Source SMD5050
Input Voltage AC 85~277V
Color Temperature 2700-6500K
Light effect 130-140LM/W
Lumen 70000LM±5%
PF ≥0.95
CRI Ra.≥80
IP 65
Viewing angle 10° / 25° / 60°
Materials Die-casting Aluminum
Operating Temp. -25ºC to +60ºC
Applications Sports Stadiums, Football Field, soccer field, golf field, stadium, etc
Qty / CTN 1PC
N.W. 14.5KG
G.W. 16KG
Lamp dimensions 495*420*155mm
Carton size 62*49.5*23CM
Lifetime 50,000 hours
Quality warranty 5 years
Certificates CE,ROHS, EMC, LVD, ISO9001





Details


LED Sports Field Lighting

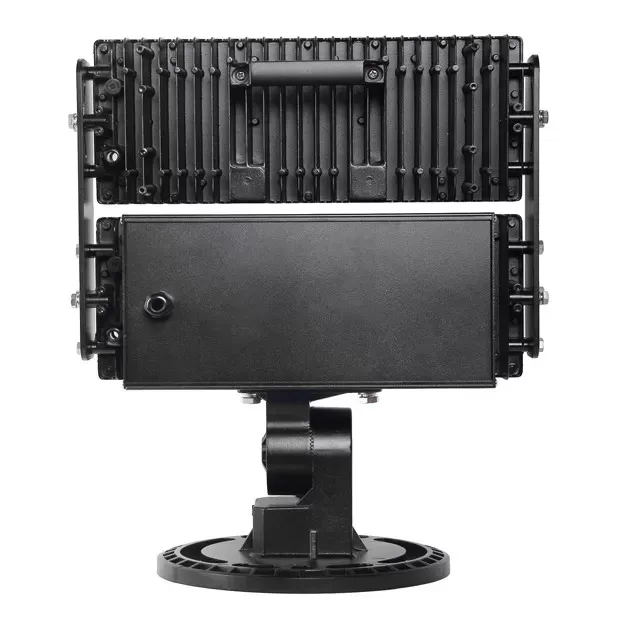

With two ways of installation, suitable for varies application, black color housing and beauty designed.
There are 10°, 25°, 60° beam angle options for the Lens












Product Details-heat disssipater
Scientifically-designed heat dissipater with much better cooling effect.

High luminous efficiency, Whole lamp output light efficiency >140LM/W











High quality power supply, input voltage 95-295V. The power efficiency is more than 90%, power factor greater than 0.98, CE,ROHS, EMC, LVD, ISO9001 compulsory certification.





1.CE ROHS SAA ETL DLC approved
2.Patent design die-casting aluminum casing
3.High efficiency and power factor LED driver
4.Multi-optional optical lens,multi-optional beam angles
5.Start without delay and flicker free
6.Good color rendering
7.Easy installation and maintenance
8.Ideal heat dissipation design
9.Energy saving system,saving 50% energy than the conventional metal halide lamp,stadium light






Factory






Applications

LED Sports Field Lighting widely apply to Sports Stadiums, Football Field, soccer field, golf field, stadium, etc









Packaging


1 unit per Neutral packing box

Standard export packaging
