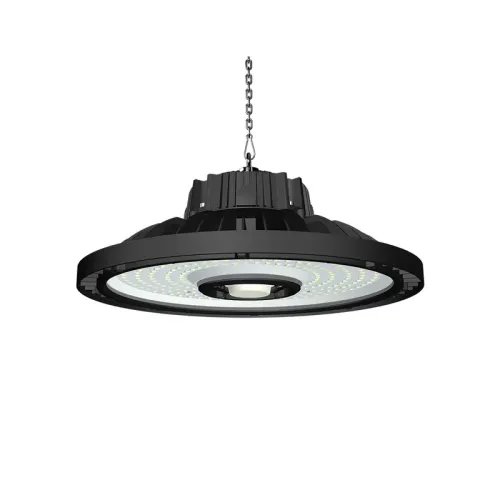

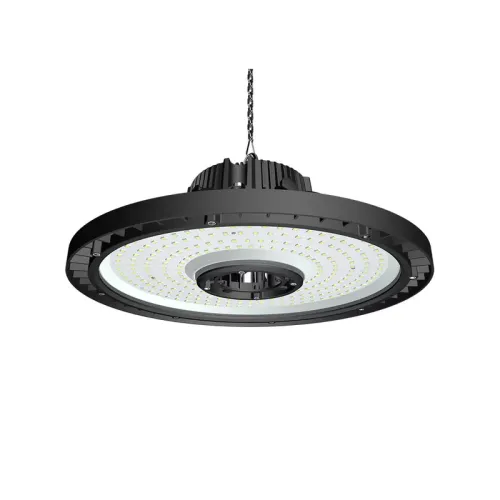

Motion Sensor Industrial Ip65 150w 160lm / w UFO 200w Led High Bay Light

UFO 200w Led High Bay Light
  • Product:
    led high bay lights 200w
    ufo led high bay light 200w
    200 watt high bay led light
    200 watt led high bay light
Description
Description

Motion Sensor Industrial Ip65 150w 160lm / w UFO 200w Led High Bay Light





Description



1. Beam angle:60 90 130 degrees.
2. Aluminum die-casting heat sinks is good for heat dissipation.
3. It's major to replace the conventiona highbay light.
4. Green, energy saving, long and reliable life of 50,000 hours.
5. No RF interference, No IR/UV radiation ,no mercury pollution.

6. Wide colour availability in degrees Kelvin(K),2700-6700K.
7. Streamline exterior design, beautiful appearance.
8. Environment friendly ,energy saving (70~80%). 9. Special circuit design, each LED work separately,avoiding the single broken LED influence problem.





Features



1  IP65, IK08/IK10;
2  5/7 year warranty;
3  Unique appearance design;
4  AC100~277V/180~528V is available;
5  Lumen Efficiency of Lamp Fixture up to 180Lm/w;
6  Multiple installations:hook/bracket/wall mounting;
7  Product Good hardwarw Better temperature;
8  Original Luxen 3030 2D Taiwan MeanWell driver.
9  Equivalent to 250W, 400W, 700W and 1000W HID/HPS/MHL







Specifications



200 watt led high bay light




Input Voltage
AC 100-277V
Frequency 50Hz~60Hz
Power factor >0.90
THD <15%
System power Consumption 200W
Lamp luminous efficiency 130 Lm /W
Led Initial luminous Flux 26 000lm
Color Temperature NW 4000-4500K
CW 6000-6500K
Color Rendering Index Ra>70
LED Junction Temperature ≤120℃
Working Temperature -30℃ ~ 55℃
Storage Temperature -35℃ ~ +65℃
IP Grade IP65
Wire Connecting Brown L (live line)
(The color of the Blue N (neutral line)
lamp shell) Yellow/Green G (ground line)
The color of the lamp shell Black
Beam angle 60/90/120deg
Size Dia 380mm*H 140mm
Life span 50 000hrs
Hold time 5s / 30s / 90s / 3min / 20min / 30min
Daylight sensor 50lux / 100lux / 200lux / Disable
Stand-by period 5s / 5min / 10min / 30min / 1h
Stand-by dimming level 10% / 15% / 30%
Mounting height 12m Max.
Detection zone 10*10M Max
Detection angle 360°(ceiling installation)





Details



1.Highly efficient LM80 approved Lumileds chip for maxium efficiency and long life.
2. Optics lens in 60 DEG, 90 DEG, 120 DEG options with over 90% effciency reduces light loss significantly.
3.Excellent thermal management system and heat radiation, enable the LEDs consistently work cooler,providing significant boosts to lifetime and efficacy.
4. IP65 waterproof for indoor and outdoor use.



Quotation is with the microwave motion sensor


1,on/off control
2,detection area
3,hold time
4,stand-by period
5,stand-by dimming level
6,remote control setting












Applications



Industrial led high bay lighting



1. Parking areas Lighting.
2. Ceiling Lighting.
3. Warehouse Lighting.
4. High / Low Bay Lighting.







Client feedback







Packaging



Packing Material:Neutral packing with strong corrugated paper cartons,in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS
