Motion Sensor Intelligence Waterproof 30w-120w Outdoor Solar Led Street Light

30w-120w Outdoor Solar Led Street Light
  • Product:
    30w-120w Outdoor Solar Led Street Light
Description
Description

Motion Sensor Intelligence Waterproof 30w-120w Outdoor Solar Led Street Light





Features



all in one solar street light



This work present a design, build a wet and dry self cleaning system to the street light solar panel. It is simple, lightweight, slight to maintain, portable, withstand the environment; low-cost, long life, takes its power from the battery of the solar panel, and controlled automatically, by a remote control or a timer. The experimental model is based on a DC motor intelligently controls by a dedicated drive unit that move a cleaning head on the panel upwards and downwards with without using, spraying system. The performance and characteristics of the self cleaning system is experimentally analyzed.



1.Built-in Automatic Robotic cleaning arm wipes the dust off the solar panel every day keeping the Solar panel at optimum efficiency.
2.Uses free electricity from the sun so environmentally-friendly and pollution-free
3.Easily Replaceable Battery bank housed in a strong aluminum removable cartridge
4.Easy to install and safe to use
5.No costly or complicated pipe- laying or inderground wiring required





Specifications



Type Model PD-30W,PD-40W,PD-50W,PD-60W,PD-80W,PD-100W,PD-120W
Lumen 170LM/W
Color temperature 3000K 4000K 5000K 6000K 7000K
Material+appearance treatment High end aluminum alloy+Anodizing
Lithium battery LifePO4 battery 12.8V(300WH-800WH)
Solar panel High efficiency mono solar panel 18V(50W-140W)
LED chip Original bridgelux 3030 led chip
IP grade IP65
Discharge time 12hours lighting per day with motion sensor,support 10-12 rainy and cloudy days
Charging time 6-7hours(bright sunshine)
Install diameter Φ60-65mm(Advice)
Working temperature -25℃-+65℃
Certificates CE ROHS IP65 ISO9001
Warranty 5 years
Remote control Yes
Color rendering index Ra≥80






Solar lights controller status indicator

LED indicator status Indicator light description
Red(Flicker) Solar panel is charging the battery
Red(On) Battery charged to full power
Blue(Off) Battery without output
Green(On) Light on

























































Details

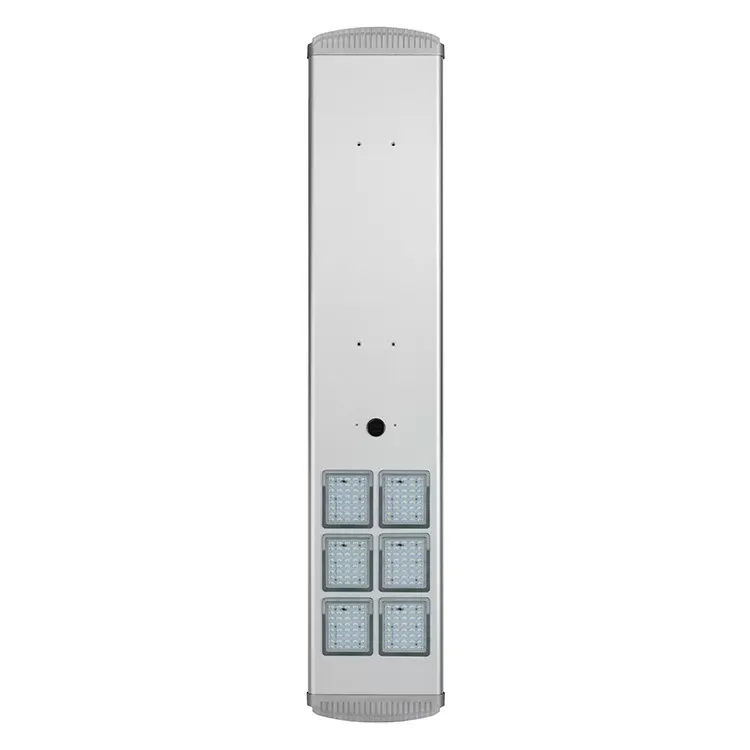

all in one solar led street light



1.Long life,high brightness,maintenance-free
2.Integrated,easy to install and transport
3.Light sensor automatically control the work of LED lights
4.High efficiency and energy saving
5.Human intelligent sensor system can save energy and reduce energy consumption
6.Be installed in gardens,roads,mining areas,parking areas etc.













Applications



All in one integrated solar street light can be application at :
High way / Park / Street / Roadway / Parking Lot / Public square / School etc.




Our factory









Packaging



Solar led street light :
Solar panel:carton package and pallet
Battery:carton package and pallet
Controller:carton package and pallet
Pole:bubble wrap
Fixture:carton package and pallet





Why Choose Us



Q1. Can I have a sample order for led solar light?
A: Yes, we welcome sample order to test and check quality. Low MOQ, 1pc for sample checking is available.Mixed samples are acceptable.

Q2. What is your terms of payment?
A:Usually,we accept T/T,irrevocable L/C at sight.For regular orders, Terms of payment 30% deposit,full payment before delivery the goods.

Q3. You are manufacturer or trading company?
A:We are factory. Welcome to visit our factory at anytime.
