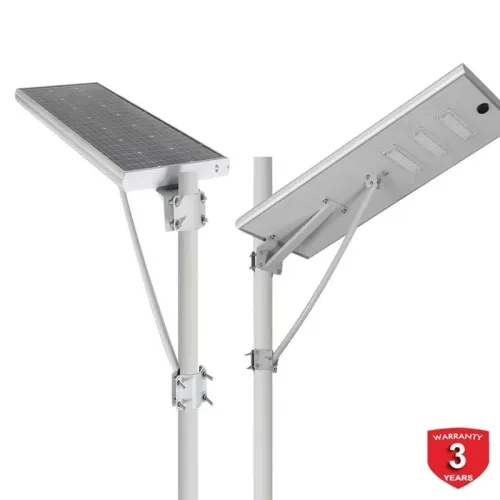

PIR Sensor Solar Street Light 100w Outdoor IP65 Integrated Solar Powered Plaza Lamp

100w Outdoor Ip65 Integrated Solar Powered Plaza Lamp
  • Product type:
    Lamp Power: 5W - 120W
    Battery: Lithium Battery
    Solar Panel: Polycrystalline Silicon
    LEDs: Bridgelux
Description
Description

PIR Sensor Solar Street Light 100w Outdoor Ip65 Integrated Solar Powered Plaza Lamp





Features



Outdoor led solar street light with motion sensor, Integrated design, for large projects.



1, Drawer design ,easy replacement for battery

2, Fault detection indicator,user-friendly
3, Microwave sensor ,wide induction range 180 degree , with high senstive .
4, LED logo, high end and classy.
5, Working modes:
Three lighting mode for choice
















Specifications



all in one led solar street light



Model Number MS18(18W) MS15(15W) MS12(12W) MS08(8W)
solar Panel 40W 30W 20W 20W
Battery Type 12.8v(Lithium battery) 12.8v(Lithium battery) 12.8v(Lithium battery) 12.8v(Lithium battery)
LED Chip 18W USA Bridgelux 15W Epistar 12W Epistar 8W Epistar
Lumen(LM) 1800-1980lm 1500-1650lm 1200-1320lm 800-880lm
Colour Temperture 6000-6500k 6000-6500k 6000-6500k 6000-6500k
Discharge Time 10-12hours 3-7rainy days
Working Temperture -20℃~+60℃ -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Waterproof Rate IP65 IP65 IP65 IP65
Mounting Height 4-5m 4-5m 3-4m 3-4m
Packing Size 960*380*220mm 820*380*220mm 560*380*140mm 560*380*140mm
Net Weight 11.5kg 8.5kg 5.5kg 5kg
Gross Weight 12kg 9.5kg 6.5kg 6kg



Model Number MS40(40W) MS30(30W) MS25(25W) MS20(20W)
solar Panel 60W 60W 50W 50W
Battery Type 12.8v(Lithium battery) 12.8v(Lithium battery) 12.8v(Lithium battery) 12.8v(Lithium battery)
LED Chip 40W USA Bridgelux 30W USA Bridgelux 25W USA Bridgelux 20W USA Bridgelux
Lumen(LM) 4000-4400lm 3000-3300lm 2500-2750lm 2000-2200lm
Colour Temperture 6000-6500k 6000-6500k 6000-6500k 6000-6500k
Discharge Time 10-12hours 3-7rainy days
Working Temperture -20℃~+60℃ -20℃~+60℃ -20℃~+60℃ -20℃~+60℃
Waterproof Rate IP65 IP65 IP65 IP65
Mounting Height 6-7m 6-7m 5-6m 5-6m
Packing Size 1190*390*220mm 1190*390*220mm 1190*390*220mm 1190*390*220mm
Net Weight 18kg 17.5kg 17kg 16.5kg
Gross Weight 19kg 18.5kg 18kg 17.5kg





Details



1.“All in One solar steer light ” could not work without sunshine, please select the suitable model according to the local sunshine radiation and the annual total radiation. We suggest use the both AC and DC charging model in those places where lack of sunshine or have long-time rainy days.



2.“All in One solar street light” adopts the long life Lithium battery for storing energy, charging temperature at day time is between: 0℃~+60℃, when temperature goes lower than 0℃, the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0℃. Discharging temperature at night is between: -20℃~+60℃, any ambient beyond will take damage to the battery. So please check these factors while selecting the street light.





3.Battery of the “All in One solar street light” can be stored for 6 months long after fully charged.Therefore please examine and charge it periodically after long time transportation or storage to prevent damaging.



4.When install the lights in Northern Hemisphere, please adjust the solar panel to the South as much as possible to collect maximum sunshine radiation, while install them in Southern Hemisphere, By the same token, keep solar panel to north. At the same time please keep it away form any shadow of houses, trees etc.



5.Keep clear of the surface of the All in One solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.



6.All in One solar street light have got the standard of IP65. The vents on the surface is designed for radiating. The materials are made of aluminum alloy which can survive in the environment of seaside and desert.



7.The knob of the fuse is at the left rear end of the light, please insert the fuse while using. By the way, there is one piece of fuse more as backup(If not fuse, then it is switch, just turn the switch)










Applications



Solar street light with motion sensor very suitable using in Government project, Courtyard, Roadway, Pathway, Public square, Campus, Remote Area, Hacienda, Pasture, Mongolian Yurt, Parking lot,Tennis Court street etc.








Why Choose Us



1. 100% Original quality
2. Top supplier in Alibaba.
3. Low Prices Direct From Factory Suppliers.
4. Fast Delivery Around The Globe.
5. High Quality With Global Standards.
6. Goods must be passed QC and test before shipping out.
7. After-sales: 3 year warranty.In this period,we will provide free repair for problem caused by non-human factors.
8. Safe shipping way and payment.
9. Convenient & Friendly Customer Service.





Packaging



Standard export packaging or customized according to customer requirements
