Pole Mounted High Lumens Motion Sersor Integrated Solar LED Street Light For Outdoor

Motion Sersor Integrated Solar LED Street Light For Outdoor
  • Product:
    integrated led street light
Description
Description

Pole Mounted High Lumens Motion Sersor Integrated Solar LED Street Light For Outdoor





Description

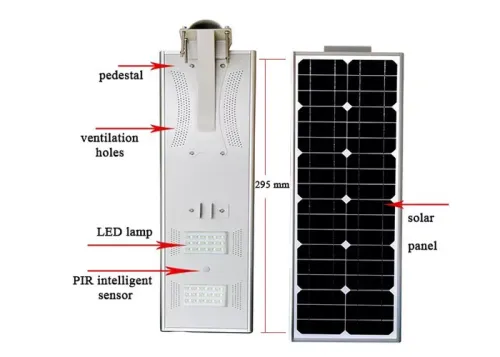

The integrated led street light, which can also be called the all in one solar garden light, combines the high efficient solar panel, Li-battery can be used for 8 years, high brightness leds, intelligent controller, and anti-burglary installation support together. It uses several practical and good control technology, such as mini-controller and human infrared induction, and unites the integrated design to satisfy the needs of low consumption brightness, long using time and maintenance free, and the performance of water-proofing and heat dissipation are also perfect.





Features



1. Integrated design without stay wire, easy installation, low cost in transportation, several installation methods are provided, and the lamp post can be local materials, such as the iron post, wood, bamboo, plastics and so on;
2. Using solar energy to save electric energy to protect resources on earth;
3. The Li-battery with high capacity and long using time is applied, and the using time can be 8 years;
4. Stay wire is not needed, and the installation is quite easy;
5. Using the alloy material to build the main structure, which has good performance in rust protection and anti-corrosion.
6. The modular design conception is adopted, which makes the installation, maintenance and repair much easier;
7. Segmentation power control. In the midnight, there will be little people on roads, the solar light can reduce the brightness to save energy and increase the practicability.
8. Best components are used in the production of the integrated solar street light, and it will work for long period after installation;





Specifications



Product Name Integrated solar led street light
Model: MS-SLL-30(With Sensor)
Solar panel Max power: 18V 60W (high efficiency imported Monocrystalline silicon )
Solar panel Life time: 25 years
Battery Type: lithium battery 12V 24AH
LED Max power: 12V 30W
Led chip brand: Bridgelux from USA with high brightness
Lumen (LM): 110-120lm/w
LED Life time: 50000hours
Lighting Viewing Angle: 65°x 120°(bar wing street light distribution )
Visual distance >800m
Charge time(by sun): 6-7hours (with enough strong shine)
Working TEMP( ℃ ) -25~+65℃
Warranty period: 3years
Sensor distance 8-12m
Mounting height(m): 6m
Space between light(m): 20-25m
CCT (k): 6500k-7000k
N.W / GW.for carton: 12.7KG / 14.9KG
20GP container / 40GP container: 290pcs / 690pcs
Unit size 1136*295*44mm
carton size 1190*360*220mm
Working time : The lamp attomatically turns on after sunset ,and off when sunrise.
Working mode: During working time ,when there are movements detected ,the lamp switches to 100% capactity ,when movements gone ,the lamp turns to 50capacity to save power .





Details



Working mode: During working time ,when there are movements detected ,the lamp switches to 100% capactity ,when movements gone ,the lamp turns to 50capacity to save power










Installation





Applications



The All-in-one integrated solar street light can be installed in all streets, auxiliary roads, paths in residential subdistricts, mine areas, non-electricity zones, parks, parking lots and villages to provide light, and the solar panel can charge the battery to satisfy the need of lighting.







Packaging



Standard export packaging or customized according to customer requirements.
