Powerful Project Engineering Tower Crane IP65 COB 500w Industrial LED High Bay Lights
Featurs
1). High Efficiency: 120-140lm/w
2). Unique thermal management design ensures low temperature.
3). Fast turn on, no warm up or cold start problems
4). Shock and vibration resistant
5). OEM power supply-efficiency of 98%
6). National listing lab LM79 tested with IES standards
7). IES files available for all models
8). No lead, mercury, UV or IR radiation with low heat
9). No SHADOWS
10). Easy installation and maintenance with waterproof prevention
11). Operating temperature: -35 to +60
12). 50,000 hours life-span
13). Certifications: CE, RoHS, EMC, LM80
Specification
500 watt high bay lights
| Item | Details | Optional |
| Name | 500w Industrial LED High Bay Lights | |
| Power | 500W | From 100w to 500w can be provided |
| Power factor | >0.95 | >0.9, >0.97 |
| Driver brand | Meanwell | Also according to your request |
| Input voltage | AC85-265V | AC165-265V, AC/DC 12V/24V |
| Frequency | 50hz/60hz | 50hz/60hz |
| Chip brand | or OSRAM | Sanan, Bridgelux, or Cree |
| Lumen | 120-130lm/w | 120lm/w,130lm/w…. |
| CRI | >75 | >80 |
| Color temperature | 2700-6500K | Also according to your request |
| Beam angle | 90-120 degree | |
| IP rating | IP65 | |
| Warranty | 3 years | 3 years/5 years |
| Size | 410*310*260mm | |
| Package size | 450*375*330mm | |
| N.W. | 11.2kg | |
| G.W. | 13kg | |
| Application | Advertising, Stadium, Building, Hotel, Garden etc | |
| Lead time | Samples time 3-5 days, large quantity order 15-20 days | |
Details

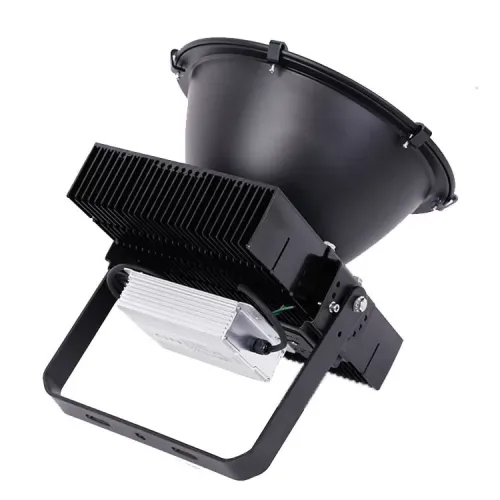

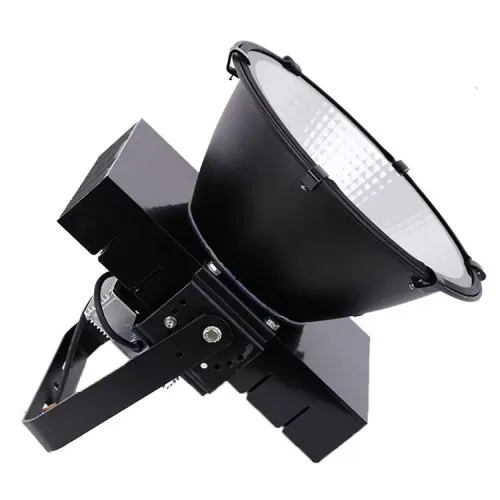

industrial high bay led lighting fixtures
300W/400W//500W/600W/800W/1000W Industrial tower high bay light,
Uses big chip 4014 LEDs with TOB artwork.
High intensity toughened glass cover, better explosion proof, anti-shock & anti-rays, transmittance up to 95%, high temperature resistant. industrial high bay light
Waterproof rubber ring & strengthen waterproof stainless screws, support better waterproof for the lamp.
Beam Angle 35 degree, can widely used as long-distance & high pole/tower lighting.
Thicken aluminum plate, larger area aluminum fin heat sink, with tight connection, support more better thermal conductivity. tower led high bay light
IP66 Waterproof constant isolated driver, offer more stable performance for outdoor lighting.
Fish scale shade with tempered glass window high reflectivity and light transmittance.
Application
For this high power 100W-500W led high bay light ,
Extensively applied in industrial workshops,stadiums,docks,golf cources, construction lighting,square,stage,landscape,tower crane,venue.
it can replace the traditional metal halide and high pressure sodium light.
Production line
Package
Standard packing, Neutral export packaging.
