Professional design dock, highway, airport auto lifting system price of high mast light with flood lights
IP66 High Mast Lightings 1000W
Patented fin aluminum heat-sink structure; High quality aluminum processing technique; Special surface treatment process; High brightness LED light source, high efficiency and long life power supply.
5050SMD with high thermal conductivity, good heat-radiation,
small light decay, pure light, no ghosting, stable performance and quality advantages.
Unique thermal management design low LED junction temperature effectively, ensure the lifespan of
the light source and power.
Extremely light weight for safety use and installation.
Eco-friendly and energy saving, dust-proof, no radiation and emitting heat, no mercury, lead and other
High color rendering index to show the physical color rendering more real. Various colors is optional to
meet the needs of different environments. Eliminating the repressed emotions caused by the traditional
lamp in highor low color temperature , the light is visual comfort, and improve the work efficiency.
Power by constant current and voltage, can work in wide voltage range AC90V-305V. Overcome the
unstable on the light caused by ballast disturbance, noise pollution, avoid the stimulus work to eye fatigue.
Using a special surface treatment process, new design on appearance. Simple installation, easy
Disassembly, Wide range of application.

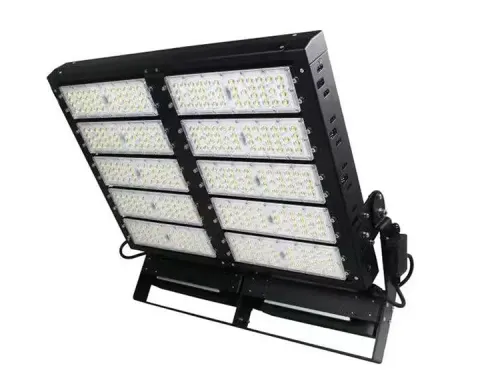

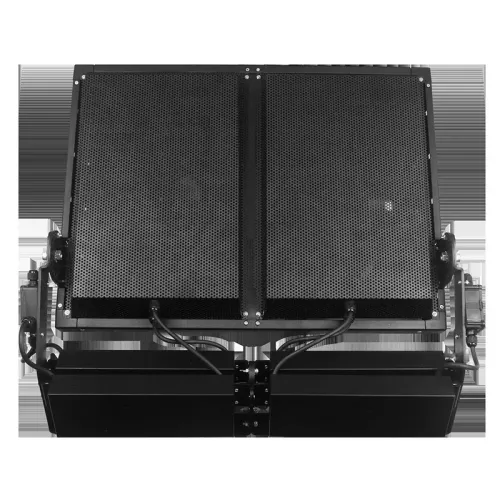

high mast light with flood lights
|Input Voltage||90-305 VAC, 50/60 Hz|
|LED Chips||5050SMD Optional|
|LED Chip QTY||440 pcs|
|LED Power /Total System Power||1000 W|
|Led Luminous Efficiency||150-160lm /W|
|Light Lighting efficiency||≥150 lm/W|
|Led Initial Luminous Flux||150000±5%Lm|
|Color Rendering Index||Ra≥70|
|LED Junction Temperature||≤70℃ (@ Ta=30℃)|
|Working /Storage Temperature||-25℃ ~ 40℃/-25℃ ~ 65℃|
|Net weight||19 Kg|
The light parameters may different between different color temperature, tolerances ≤ 5%.
The testing is based on Bridgelux LED 5500K.
Take out the lights from packing box.
Fix the light on mounting frame and keep stable placement. For safety, make sure the power cables are
connected by electricians. The power cord is 1.0MM2 triple shield wire, the brown is live wire, blue is neutral
wire, and yellow/green is earth wire.
Maintenance / Repairing Instructions:
Make sure the power has been turned off before maintenance or repairing.
Clean the glass cover regularly to maintain high transmission of light.
Clean up the dust from the glass cover and heat-sink regularly to keep sound heat dispersion.
Be careful not to use water or corrosive solution for cleaning, preferably with a dry cloth.
When install or replace power supply, directly open the back cover with a screwdriver, then remove the
On DC power output, the red cable corresponds to the positive power polarity, and black corresponds to
The negative. Pay attention do not reverse the positive and the negative in any circumstance.
-Non-professional technicians, please do not repair or modify this product without authorization.
-Please make sure to turn off the power before installing.
-Before installing, please check whether the voltage marked on the high pole lamp is consistent with the input voltage to be connected.
-In order to ensure the service life of the product, please do not use it in a place with strong acid mist.
-Pay attention to earthquake prevention during installation and transportation.
-Install it in a flat place without vibration, no swing, no fire hazard.
-If the lamp fails, please place the lamp in one place and send it back to the company for inspection and repair.
-If the lamp body wire is damaged, please stop using it immediately.
high mast light with flood lights Suitable for Warehouses, Production and logistics workshops, Retail stores, Theme restaurants Amusement parks,Indoor stadiums and public places, and other industrial and commercial lighting purposes.
Conventional neutral packaging and Customized packaging as client logo
