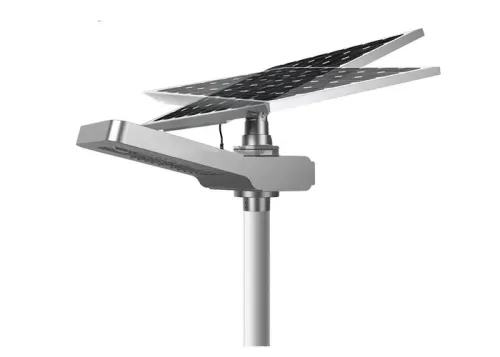

Project Outdoor Motion PIR Sensor Energy Powered Smart Solar Powered LED Street Lights 50W
Features
1. Beautiful and modern appearance, simple and fashionable
2. Use of solar green energy, environment friendly, saving more.
3. Low voltage driving, meet the Europe standard of CE ROHS FCC
4. No Hg,Pb or other hazardous material, no radiation, human safety.
5. IP65 grade,TVS lighting protection
6. Long lifetime of whole lamp, low maintenance costs.
7. “Night hawk” shape cover, super star in the solar street light market.
8. Aluminum light body, zinc plated, anti-rust corrosion.
9. Less screws on the face of light, easy installation.
10. There are three indication lights on the head of light, easy to check lighting situation.
11. IP65 waterproof, 3 years warranty.
Specifications
Solar Powered LED Street Lights | |
Type | MS-NH150 |
Lamp power | 50W |
Solar panel | 150W 18V |
Lithium battery | 610WH 11.1V |
Termary battery | |
LED qty | 60pcs |
Luminous flux | 7500-8000lm |
Charge time(full sunlight) | 6.5hrs |
LED chip | Bridgelux |
Color temperature | 3000-6500K |
CRI | >70Ra |
Light control voltage | 5V |
Light distribution | Bat wing with polarized light |
Lighting time | 2-3days |
Sensor distance | 5-12m |
Sensor time | 20-30s |
Working temperature | -20 - 60℃ |
Lifetime | >50000 hours |
Material | High quality aluminum alloy, die-cast aluminum |
Pole top diameter | 70mm |
Mounting height | 5-10 meters |
Installation spacing | 10-30 meters |
Details
Monocrystalline
19% photoelectric conversion efficiency
Tempered glass cover
20-25 years lifetime
High lumen led chip
45mil led chip, 160lm/w
≥50000hrs lifetime
≥70Ra CRI
Smart Controller
Unique design
Combine light control and time control
perfectly, ensure whole system more
enery efficient
Smart control, saving more and
system works stably
LiFePO4 Battery
High capacity
No pollution and stable
5-8 years lifetime, ≥2000
times charge & discharge
High temperature
resistance
High quality body
Patent design
Zinc plated, anti-rust corrosion
Variety of installation methods
Installation
1. Fix spindle on supporting seat by coverplate.
2. Connect the locked supporting seat to light body.
3. Fix bracket on the panel.
4. Fix the panel on spindle.
5. Fasten the two screws on spindle, install the whole light on pole.
6. Fasten connection strap, ensure two panels at same angle.
Note: The short side of panel underlying
Applications
Widely used in Rural road, Courtyard, Villa, Park, Square, Farm, School, Factory, Slow lane etc...the
places where need outdoor lighting and with enough sunshine.
Packaging
Standard export packaging or customized according to customer requirements
