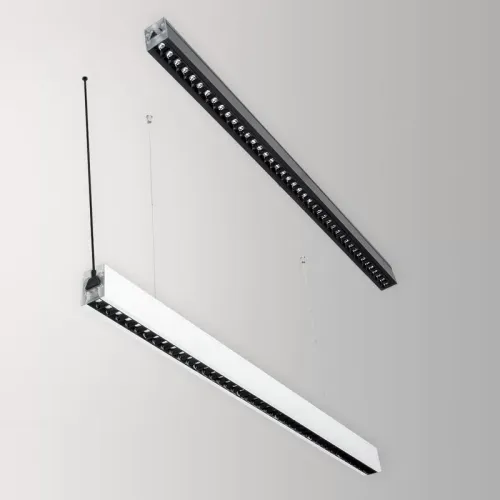

Seamless Connection Aluminium Led Linear Pendant Lighting Available In Suspended And Surface Mount

LED Linear Pendant Lighting Available In Suspended And Surface Mount
  • Spec:
    Black/White/Silver
    0-10V or DALI
    5065 3570 7575
    600mm 1200mm 1800mm 2400mm
    Led Linear Lighting
Description
Description

Seamless Connection Aluminium Led Linear Pendant Lighting Available In Suspended And Surface Mount



Features

linear led light fixture

1.Freedom Design
The design of LED Linear Light breaks through the limitations of traditional lighting design,the length of extrusion profiles can be cuttable according your request,even infinite connection for each other. Let everyone enjoy the freedom of design.
2.Easier Installation
Based on the modular design,the installation of LED linear light is diversified such as wall mounted,ceiling mounted, recessed or wire suspended according your application,the installation can be completed more quickly by this design.
3.More Various Application
Unlike the application of LED strip or LED tube light,a variety of application environments with good adaptability through the perfect combination of aluminum and LED light source.While providing a variety of joint accessories,the spatial structure has demonstrated a perfect compatibility in different areas.
4.More fashion modeling
Different from the complex,luxurious European lighting style,using LED linear lighting system to cut the space for a variety of simple geometric shapes,opened a fresh,elegant stylish lighting new field,will become the new trend in recent years.


Specification

suspended linear led lighting


led linear pendant 3570
Product name
LED Linear Light - 3570
Product Model No
LS3567-PZ
Housing material
6063-T5
Surface treatment
Powder coated or Brushed aluminum
CCT
3000K,4000K,6000K
LEDs
2835SMD (SANAN chip)
LEDs Life Span
50000H
Input Voltage
100-277V/200-240V 50/60HZ
Power supplier
Flicker-free
Luminous Efficacy(lm/w)
100lm/W
Color Render (CRI)
RA≥80 or RA≥90
Power factory(PF)
≥0.9
Optional features :
0-10V dimming, DALI dimming,CCT dimming
IP Rated
IP20
Beam Angle
120° (PC)
34°(Reflector)
Working Temp(℃)
Surrounding Ambiance Temperature -25°~40°Degree Celsius
Body Material
aluminum,PC,ABS
Color Option(shell)
Silver,White,Black
Certification
CE, RoHS
Limited Warranty
3 Years




Standard specifications
Model
Size
Watts
Voltage
CRI
3570LS20W06-PZ
L605*W35*H70
20W
AC200-240V/100-277v
Ra>80/90
3570LS40W12-PZ
L1200*W35*H70
40W
AC200-240V/100-277v
Ra>80/90
3570LS60W18-PZ
L1795*W35*H70
60W
AC200-240V/100-277v
Ra>80/90
3570LS80W24-PZ
L2390*W35*H70
80W
AC200-240V/100-277v
Ra>80/90




Details

linear led light fixtures

1.Connect with seamless, form with line shape.
2.Product can be used hanging ,surface mounted, recessed installation.
3.Cap with PC plastic moulding , connect with PC cover with seamless which let the light can't run out.
4.Aluminum PCB with no-facula design, connection by rotate installing which conveniently and easily.
5.PC cover transmitting rate reach 86%, luminous reach 110lm/w.
6.IC driver. No flicker, No glaring.CIR ≥ 80.PF ≥ 0.9 and corrosion.
6.Product passed TUV SAA CE FCC ROSH certifications.







Applications

LED linear lighting Use in shopping mall, office, school, leisure site, garage, factory, school, supermarket, hospital, store, etc.



Installation

Seamless and linkable.
1. Suspened wire
2. Ceiling mounted
3. wall mounted
4. Recessed




Packaging

LED Linear Lighting Standard export packaging or customized according to customer requirements
