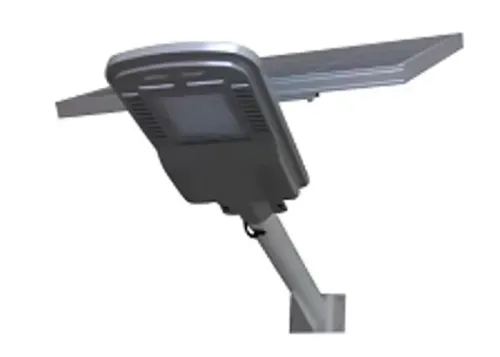

Smart Control 168lm / W LED Solar Street Lighting Independent Solar Panel

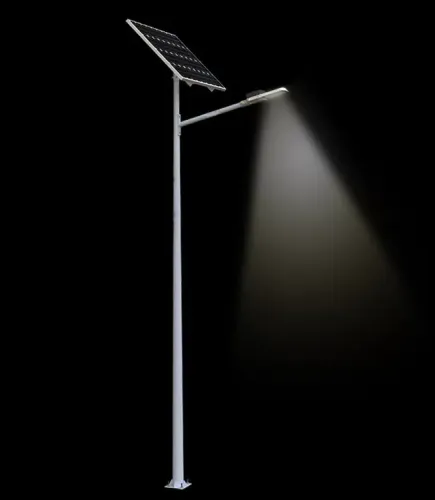

LED Solar Street Lighting
  • Product type:
    LED Solar Street Lighting
Description
Description

Smart Control 168lm / W Led Solar Street Lighting Independent Solar Panel


Features

1. Simple design, portable, practical.
2. Powered by solar, saving energy and environmental friendly, its installation is not subject to city grid.
3. Large capacity lithium battery, lifespan about 5-8 years, twice lifespan of the traditional gel battery, lowering the battery maintenance rate of solar street lights.
4. High efficiency of usage during the lithium cycle, avoiding the low efficiency of traditional gel battery after discharge which leads to lack of energy.
5. Integrated lithium battery and controller, no complex assembly work, less wiring connection mistake, making the solar street lights installation easy and simple.
6. No additional wiring is needed, avoiding the mistake of wrong calculation in wiring length and wiring configuration.
7. Lithium battery installed on pole near the lamp, closer distance and less energy lose, ensuring high efficiency of power supply. What’s more, the hanging battery increases the difficulty for vandalism and theft than buried battery underground.


Working mode with microwave motion sensor



There are two working modes for integrated light: full power working mode and energy saving working mode.
Energy saving working mode means the light will dim to 30 % working efficiency when nobody passes by. When people or vehicle passe by, the sensor will detect the motion and the light will lighten up to 100% efficiency. The brightness of the light will be reduced gradually to 25% after the people and vehicle pass away.


Components Comparison

Components Traditional Solar Street Light Integrated Lithium Battery Solar Street Light
Solar Panel Separated Separated
Battery Separated Smart sensor, controller and lithium battery integrated
Controller Separated
Battery Box Separated
LED Lamp Separated
Lighting Source Separated
Cable Longer, high line lose Shorter cable, less line lose
Frame Support Same Same
Steel Pole Same Same
Foundation Kit Same Same
Installation Cost High Lower, about 30% of tradition solar street light
Shipping Cost High Lower, about 40% of tradition solar street light



PK: Traditional Solar Street Light & Integrated Lithium Battery Solar Street Light



Specifications


Power 16W 20W 24W 30W 40W
Voltage 12V
Capacity of the battery ≥16AH ≥20AH ≥24AH ≥30AH ≥40AH
LED power 30*30 SMD
LED lamination 2400LM 3000LM 3600LM 4500LM 6000LM
Inductive components Microwave sensor
The effective distance of the sensor 6-8M
Wireless data transmission 10M
Color of the lamp White, grey, blue
Working temperature range -20℃~65℃
Working humility range Lower than 85% RH
Storage temperature range -5℃~35℃
Storage humility range Lower than 50% RH
Working hour 8H
Function of the controller Over-charging protection, over-discharging protection, short-circuit protection, inverse connection protection, automatic energy-saving mode
Cycle life ≥600 cycles
Insulation measure Foamer




Details

The above configuration is only for reference and the actual configuration is designed according to the local climate conditions and the customer special requirements.

We promise a guaranteed warranty for the entire system for two years, during which if there is any quality problem found, repair or replacement shall be provided free of charge, and a guarantee for life-long repair.




Solar panel

Monocrystalline solar panel from 30W to 310W, efficiency of more than 18.5%
Polycrystalline solar panel from 30W to 270W, efficiency of more than 17.8%
A GRADE high efficient solar panel
Hydrophobic layer with higher light absorption and minimal surface dust
5 years warranty for solar panels; 20 years power generation capacity
MINSENS design nice price led outdoor lighting solar street light
LED lamp
Intelligent Solar Controller, lithium battery
Over-charging/discharging Protection, Reverse-connection Protection
Ligh Power LED, Lifespan: >80000Hrs, White Color,140LM/W,30Lux,6500K, IP65,120 Degree Angle
MINSENS design nice price led outdoor lighting solar street light
Light pole
Hot-Dip Galvanized, powder coating
Lifespan: More than 20 years
Equipped With Arm, Bracket, Flange, Fittings, Cable
Resistant to Wind: ≥150KM/H



Applications

Our Solar street light can widely application at :
High way / Park / Street / Roadway / Parking Lot / Public square / Plaza/ Campus / Airfield / Farm & Ranch / Remote Area / Military Base / Goverment project for special use etc.for special use etc.




Packaging

Standard export packaging or customized according to customer requirements
