Solar Powered Led Street Lights With Motion Sensor Road Lighting Outdoor Garden Parking Lot Lamp With CE ROHS
General information
Based on the stable electronical circuit of traditional integrated solar street light and semi-integratedsolar street light, the Solar Light is upgrated and developed by our senior ID. Mechnical, Softwareand Hardware engineers. Bidirectional rotatable solar panel, light without mechnical switch, mobileAPP bluetooth remote control and convenient installation can meet the philosophy of PV industryperfectly --- Safety, Eco-friendly and ltelligent Application.
Product overview
Solar powered led lights
1. Product introduction As a outdoor lighting fixture, the Solar Light is powered by solar energy anddesigned to offer outstanding quality by utilizing A-class LED beads, integrated optical LED lens, highefficiency mono solar panel, powerful lithium battery, self-developed developed MPPT controller andpatent bluetooth APP system.
2.Operation principle: The Solar Light is a revolutionary product by utilizing Photovoltaic effect. It isdesigned to constantly absorb solar energy in daylight and convert to electricity, the intelligent controller could precisely control the charge, discharge and well preserve electricity into the lithiumbattery. And start to iluminate, which is powered by the lithium battery, once the iluminance of groundreduced to 15 lux in nighttime, or solar panel voltage drop to 5V below. The intelligent controller notonly protects the battery from over-charging. over-discharging but also can control the light switch-on,the time of swicth-on and optimize the brightness effectively according to the real-time environment.
Specifications
Auto intensity controlled solar led street light
| LED Power | 80W | Packing Details: 1.Product Size:1000x430x85mm 2.Carton size:1050*470*160mm 3.N.W/G.W:14kg/15kg |
| Solar Panel | 5V/80W/mono | |
| Lithium Battery | 3.2V/384WH | |
| Light Efficiency | 130LM/W | |
| Lumens | 10400LM | |
| CRI | RA＞70 | 1. Material:Aluminum + Steel glass 2. LED bead: 160LM per piece(CREE ) 3. Mounting Height:8-9m 4. Lighting Time:3-4 rainy days, 12hours per night 5. Charge Time:6 Hours with summer's sunshine 6. Certificates:CE ROHS IP65 IES ISO standards 7. Function:Time sensor, Light sensor, Infrared sensors,Road indication light 8. Lighting Mode: The lamp works full night, for the first 1 hour of the night. When people pass by, the light is 100% powered on, lasting 20-30 seconds, and 30% when no people, for the second 3 hours of the night, the light is 80% on when people pass by, lasting 20-30 seconds , and 20% when no people. for the third 3 hours of the night, the light is 40% on when people pass by, lasting 20-30 seconds , and 10% when no people. for the forth 4 hours of the night, the light is 30% on when people pass by, lasting 20-30 seconds , and 10% when no people. for the last period till dawn, the light is 80% on when people pass by, lasting 20-30 seconds , and 30% when no people. 9. Mounting Distance:40m for one-side road lighting,60m for both-side road lighting |
| Color Temperature | 3000K-6500K | |
| IP Rate | IP65 | |

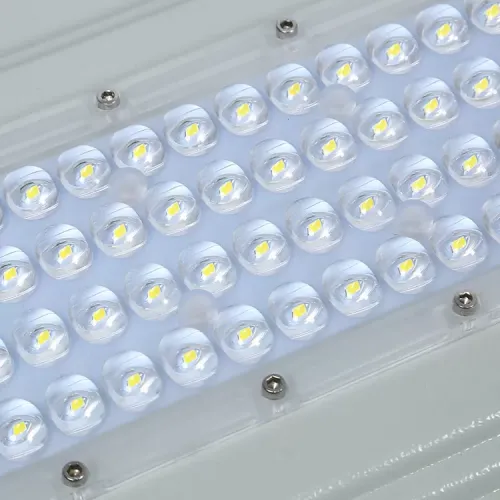

| Light Source | 3030 LED 180pcs | |
| LED Lifespan | 50000H | |
| Conversion Efficiency | ≧0.95 | |
| Working Temparature | -30℃~+60℃ |
Details
LED solar street lights
1. Wall mount & pole mount
2. 1500 cycle Li-ion battery,10 years spen life.
3. Brightness and lighting time adjustable by remote controller
4. ALS2.0 New technology support 6-8 rainy days lighting
5. Professional lighting distribution for wide lighting area
Applications
All in one led solar street light Widely used in Rural road, Courtyard, Villa, Park, Square, Farm, School, Factory, Slow lane etc.
Why Choose Us
1. 100% Original quality
2. Top supplier in China.
3. Low Prices Direct From Factory Suppliers.
4. Fast Delivery Around The Globe.
5. High Quality With Global Standards.
6. Goods must be passed QC and test before shipping out.
7. After-sales: 3 year warranty. In this period, we will provide free repair for problem caused by non-human factors.
8. Safe shipping way and payment.
9. Convenient & Friendly Customer Service.
Packaging
Standard export packaging or customized according to customer requirements
