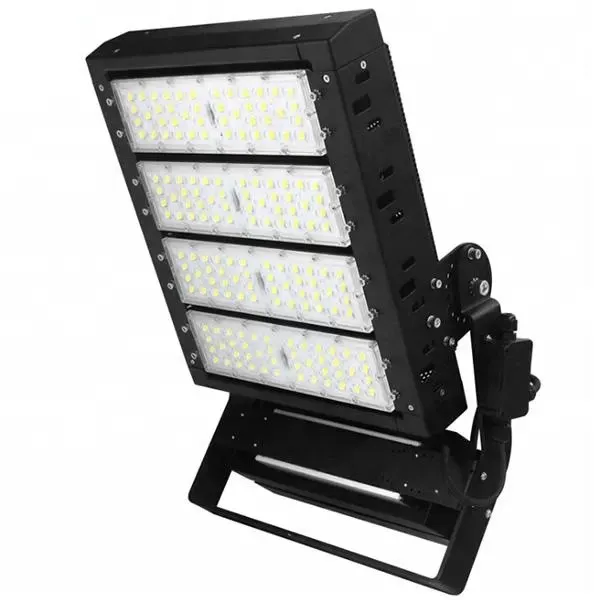

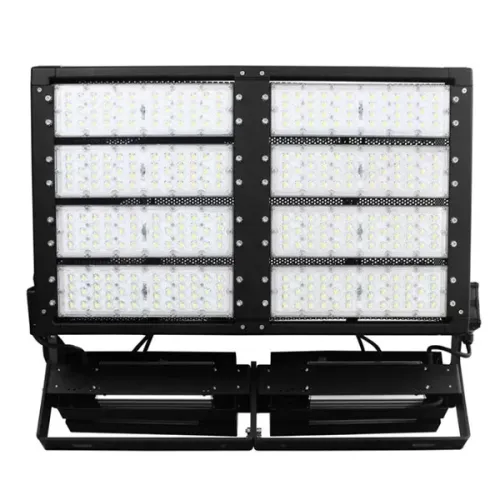

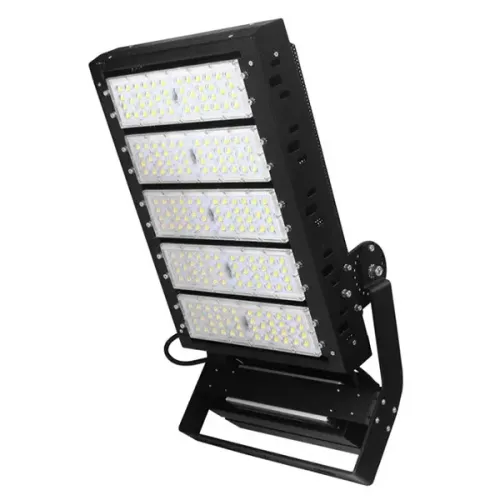

Sport Tennis Court Light 400w To 1000w Outdoor Stadium LED Flood Light

Sport Tennis Court Industrial LED Flood Lights
  • Specification:
    Lamp Power: 300W 400W 500W 600W 800W 1000W
    Input Voltage(V): AC100-277V
    Driver: MEANWELL Driver
    LED Source: 5050 OSRAM
Description
Description

Sport Tennis Court Light 400w To 1000w Outdoor Stadium LED Flood Light







Description





Led has proved to be the trand of next generation lighting for its environmrnt-friendly,energy-saving,light efficiency,reliablity. NIN innovation LED lightings lifespan ,thus remarkable reduce the expence of lighting operation and maintance.




Features



LED stadium lights for football stadium 300W 400W 500W 600W 700W 800W 1000W available.



1. By using the most powerful and efficienct flood light heat sink ,the completed LED light can work up to 30000 hours,save 80% energy ,have better lighting characteristics than that of traditional metal halide lamp 2000w.
2. Reveting the heatpipe to the hetesink rapidly transfere the heat of the led chips to the massive fins
3. Protection rate:IP65 IP67

4. Aluminum fin-shape heat sink and active air exchanging cooling system.
5. Modular structure of LED industrial Light could be applied for power variation by module increase and decrease.
6. Beam angle of modular could be adjustable to fulfill various lighting requirements.
7. Unique design removable power supply and light source.
8. IP65 ideal for outdoor use.
9. LEDs from lumileds SMD5050
10. Constant current driver from Meanwell/ Sosen, 90-305VAC(277-480V optional )
11. 50% less power consumption than traditional light source
12. High power LED tunnel light 300W/400W/500W/600W/800W/1000W for choosing
13. Light distribution: 25°/45°/ 60°/60*145°





Specification



industrial led flood lights



Power 300W 400W 500W 600W 800W 1000W
Working voltage AC100-277V, 50/60Hz;AC180-277V
PF > 0.97
IP Grade IP65
CRI >80Ra
Light Efficiency 135-140lm/w for 25°, 45°, 60°; 150-160lm/w for 60*145°
Beam Angle 25°, 45°, 60°, 60*145°
LED chip SMD 5050
Heat sinks Aluminum
Body color Black
Operating Temperature -35℃ - 50℃
Operating Humidity 10% - 90% RH
Storage Temperature -35℃ to 60℃
Net W./Gross W. 27.5KGS / 32.5KGS(1000W)
Packing size 85*81*27CM(1000W)
Warranty 5 years
Certificates CE, RoHS, SAA, ETL





Details



industrial outdoor led flood light fixtures Material and process



1. Tempered glass panel to protect the lighting source, the transparent rate up to 93%

2. High quality luminium heatsink with zipped-fins technology airflow dust inside the housing

3. The entir housing coated by electrophoretic pait,excellent corrosion resistence.

4. Stainless steel screws and parts








Installation











Factory







Applications



industrial outdoor led flood light fixtures / Tunnel lights are widely used for outdoor lighting such as road, square, park, etc. It can save more than 60% of electronicity compared with the traditional lamp,
With high bright leds, wide lighting angle, excellent heat dissipation and long life span of 50000 hours.







Packaging



300W Product size:516*388*209mm
Box Size(1pcs):59*51*25CMN.W:11.2KG G.W:12.8KG
400W Product size:608*418*209mm
Box Size(1pcs):68*51*25CMN.W:13.5KG G.W:15.4KG
500W Product size:700*418*209mm
Box Size(1pcs):79*51*25CMN.W: 15KG G.W:17.4KG
600W Product size:516*754*209mm
Box Size(1pcs):83*59*25CMN.W: 22KG G.W:25.5KG
800W Product size:608*754*209mm
Box Size(1pcs):83*69*25CMN.W:24KG G.W:26.5KG
1000W Product size:700*754*209mm
Box Size(1pcs):83*79*25CMN.W:28.5KG G.W:32KG
