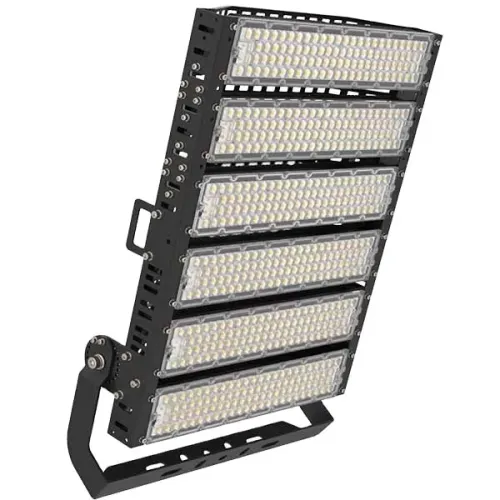

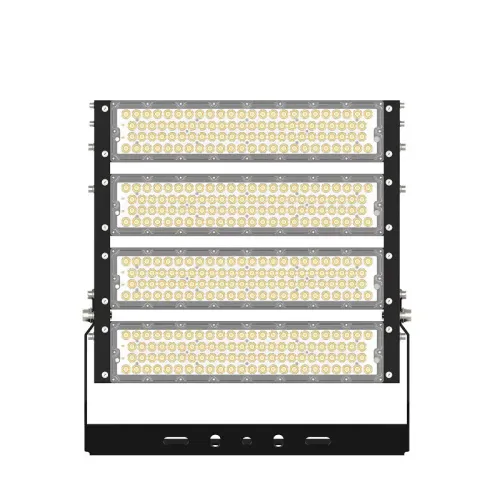

Sports Lighting 1000w LED Flood Light 150000 Lumen Led Outdoor Stadium Light

Sports Lighting 1000w LED Flood Light
  • Specification:
    Item: Sports Lighting 1000w LED Flood Light
    Lamp Power: 500W 750W 1000W 1500W
    Input Voltage(V): AC 100-277V 50/60Hz
    Luminous Efficiency: 150000Lm
    Lamp Body Material: Aluminum + PMMA
    Driver: MEANWELL Driver Or SOSEN
Description
Description

Sports Lighting 1000w LED Flood Light 150000 Lumen Led Outdoor Stadium Light



Details


Power: 500W 750W 1000W 1500W options;
Adopt with world famous high performance Meawenll driver;
Input voltage: 200-240VAC or 100-277V. (will decide input voltage accordig to the client's country)
Lumileds SMD5050, Ra70;
Super bright, high effieciey 160Lm/W;
Beam angle: 20° is default (If need 8°/ 20° / 40°/ 60° Milky cover, please leave messags)
Fin Alumium housing for the best heat sink solutions; 20% weight lighter, easy installations;
Anti-dust design,able to be with flushable cleaning;
CCT: Warm white 3000K, Natural white 4000K, Day white 5000K, Cold white: 5700K;
Working temperature: -40°C - 60°C;
Lifespan: 50,000 hours 5 years warranty;
30° single LED module adjuatable, 360° adjustable for whole LED light panel;
Salt spray resistant, corrosive resistant,processed with dedicated treatments on the heat sink, can withstand corrosive and salt intensive environments.



IP66 waterproof
Philips Lumileds 3030 led or Tonya 3030 led
150LM/W for whole lamp
Single LED module 160-170Lm/w
500W 750W 1000W 1500W LED Stadium Light Production



All of our led stadium lights are used of smd 3030 and smd 5050, it can reach 160-170lm/w, Meanwell Driver from Taiwan.

IP66 Waterproof and Dustproof



Features



Sports Lighting 1000w LED Flood Light



1.With 300W,600W,900W,1200W power, two installation methods
2.Total luminous flux up to 1560001m
3.High index TLCI>90, R9>20, common CRI>70 optional
4.High-purity aluminum integrated cold segment fin heat dissipation, fast heat conduction and excellent heat dissipation performance
5.Professional light distribution, the lens is available in a variety of angles such as narrow, medium and wide.
6.Professional anti-overflow hood to effectively control spillage and avoid light pollution
7.Protection grade 1P67, lKO8, resistance to 17 winds, no fear of outdoor harsh environment
8.Maximum surge voltage (T3) Vmax 20KV







Specification




LED Sport Field Lighting
Power Lumens Net weight Net weight Outer Carton
500W 75000lm 12.8kg 14.5kg 475*685*210mm
750W 112500lm 17.2kg 19.5kg 625*685*210mm
1000W 150000lm 22.0kg 25.0kg 765*685*210mm
1250W 187500lm 26.5kg 30.0kg 905*685*210mm
1500W 225000lm 31.2kg 35.0kg 1045*685*210mm











Applications


500W 750W 1000W 1500W LED Stadium Light is widely used in high pole lighting, such as stadium court, playground, airport, work site, construction site etc.






Packaging

Paper package

1pc/CTN
