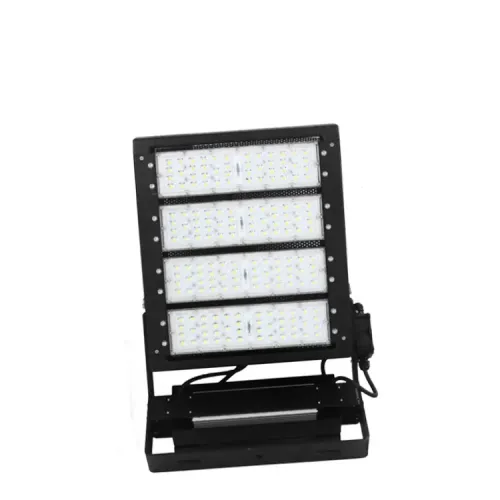

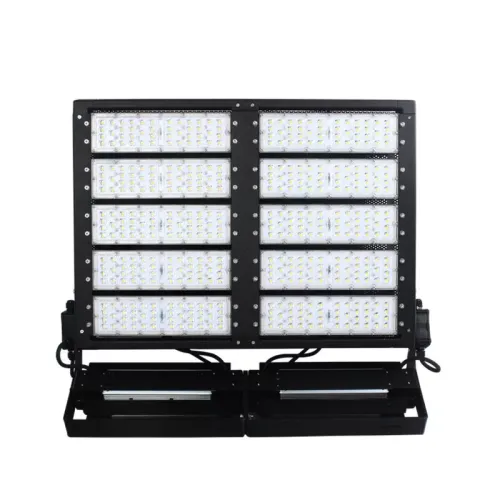

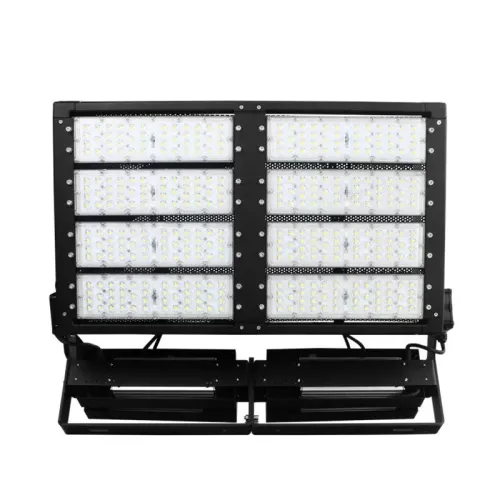

Stadium Sports Lighting 500w 1000w LED Flood Light Volleyball Court Floodlight

Stadium Sports Lighting 500w 1000w
  • Specification:
    Lamp Power: 300W 400W 500W 600W 800W 1000W
    Input Voltage(V): 90-305VAC
    Luminous Efficiency: 36000-155000Lm
    LED Source: 5050 OSRAM
    Driver: MEANWELL Driver Or SOSEN
Description
Description

Stadium Sports Lighting 500w 1000w LED Flood Light Volleyball Court Floodlight



Description

This series of LED flood lights have wide power options from 300W upto 1000W. It adopts aluminum alloy heat sink to maintain a low working temperature, and provide long life of the luminaire. It adopts >150lm/W CREE light source and high standard waterproof LED driver for a long operation life. The individual modular design creates high flexibility for the optical lenses and power range options.



Features

Brightest LED Flood Light in the world.
Premium Precise Optical Lens System, 2-10 times brighter than conventional light .

Modular Design, Easier Maintenance
Direct Heat Path Technology, 2-5 times better stability .
Anti-Glare System, suitable for any occasions
IP66, Outdoor safe use, anti-corrosion, anti-UV.
5 Years Warranty



Specification

industrial outdoor led flood lights



300W 400W 500w 600w 800w 1000w LED Stadium Flood Light
Power(w) 300W 400W 600W 800W 1000W
Volt(v) 90-305 90-305 90-305 90-305 90-305
LED Chip
Light Effect 130LM/W 130LM/W 130LM/W 130LM/W 130LM/W
CCT 2700-6500K 2700-6500K 2700-6500K 2700-6500K 2700-6500K
CRI Ra70/Ra80 Ra70/Ra80 Ra70/Ra80 Ra70/Ra80 Ra70/Ra80
PF > 0.95 > 0.95 > 0.95 > 0.95 > 0.95
LED Driver Meanwell Meanwell Meanwell Meanwell Meanwell
IP Code IP65 IP65 IP65 IP65 IP65
Warranty 5 Years 5 Years 5 Years 5 Years 5 Years
Working Temp -40 -70°C -40 -70°C -40 -70°C -40 -70°C -40 -70°C
Beam Angle 25°/ 45°/ 60°/ 90°/ 145°
Body Material: fin shape aluminum +copper tube
Certification: CE, FCC,ROHS,CB, ETL



Details



Adopt High Brightness Lumileds 5050 LEDs with Efficacy >150lm/W
Adjustable Module
High Strength Adjustable Bracket
Two-way Installation High Strength Metal Bracket, with Direction-adjustable
High Strong Stability for High Space
Meanwell or LED Driver
10KV Surge Protection and IP67 Waterproof
High Thickness Aluminum Heat Sink
Enabling a Long Life of the Lamp
High Efficiency Anti-glare Aluminum Shells
Easy-carry Handle for Convenience of Installation and Transportation






Installation





Factory






Applications

Stadium Sports Lighting 500w 1000w LED Flood Light widely used in Architectural lighting, area lighting, tunnel lighting, warehouses, high mast lighting, football stadium lighting, swimming pool, car parks, production lines, exhibition halls and etc.









Packaging

300W Product size:516*388*209mm
Box Size(1pcs):59*51*25CMN.W:11.2KG G.W:12.8KG
400W Product size:608*418*209mm
Box Size(1pcs):68*51*25CMN.W:13.5KG G.W:15.4KG
500W Product size:700*418*209mm
Box Size(1pcs):79*51*25CMN.W: 15KG G.W:17.4KG
600W Product size:516*754*209mm
Box Size(1pcs):83*59*25CMN.W: 22KG G.W:25.5KG
800W Product size:608*754*209mm
Box Size(1pcs):83*69*25CMN.W:24KG G.W:26.5KG
1000W Product size:700*754*209mm
Box Size(1pcs):83*79*25CMN.W:28.5KG G.W:32KG
