Street Solar Light Outdoor Integrated Solar Powered Street Light 170lm / W
Product Description
ZC type of Solar Powered Street Light, It is a split-type solar street light designed by MINSENS, Its luminous efficiency is as high as 170lm/W, intelligent control, and can be used on main roads. Parking lots, rural roads and other places where it is inconvenient to carry out strong power construction. It does not require any electricity, just solar for charging. In continuous rainy weather, it can still work normally for more than 7 days.
Features
Our zc type solar powered led outdoor lights features
1. All-in-one design: solar panel, lifepo4 battery, led light, intelligent controller and aluminum case all in one, easy installing, convenient shipping.
2.Science and patent design, ultra-thin shape to anti-wind level 70m/sec.
3.Adopt brand lifepo4 battery cell and combined with intelligent software BMS, which is the same working principle with Tesla battery management system, to extend battery lifespan to be more than 10 years.
4.Intelligent controller with MPPT charge technology and microwave sensor/PIR sensor (Zigbee controller and GPRS/3G/4G communication system for option ).
5.Adopt monocrystalline silicon solar panel, higher charging efficiency. Bridgelux LED chip with 160lm/w.
6. 140° wide lighting angle, bring same lighting results with shotor pole
7. Support 5-7 cloudy/rainy days after full charging
8. Easy to install and Auto on/off /Sensor
9. Waterproof can reach IP65
Specifications
Solar powered led lights
| LifePO4 Battery | 24AH 12.8V | ||
| Solar Panel | 18V40W Imported High Efficiency Monocrystalline Silicon | ||
| Install Pole diameter | 60-65mm | ||
| Mounting Height | 5~7m (Suggest install between space10-20m) | ||
| Solar Charging Time | 5-6 hurs by bright sunlight | ||
| Cloudy/Rainy days | 5 -7Cloudy/Rainy days | ||
| Material | High Class Aluminum | ||
| Product Size | 575*280*100mm | ||
| LED Lamp | 96PCS | ||
| Motion sensor | No(customize is available) | ||
| Remote Control | Yes(1pc remote control per lot) | ||
| Waterproof | IP65 | ||
| Working Tempreture | -25℃ to 65℃ | ||
| Certificates | CE,ROHS,IP65 | ||
| Warranty | 3Years | ||
Details
Solar powered led outdoor lights
1.Z series solar street light uses car battery, the life of street lamp is more than 10 years.
2.When it is rainy, the lamp can be used for more than 10 days.
3.Using microwave to sense distance greater than 12 meters is better than infrared effect
4.The product can be controlled by mobile phone app, which is more convenient to use.
5.Whole lamp adopt high-end aluminum alloy material.
6.LED module adjustable angle,suitable for different terrain roads.
7.Super-big battery box,the battery inside led lamp.
8.View angle is 140°,lighting more area.
9.Very easy install,maintaince,disassembly takes only three minutes,auto on/off.

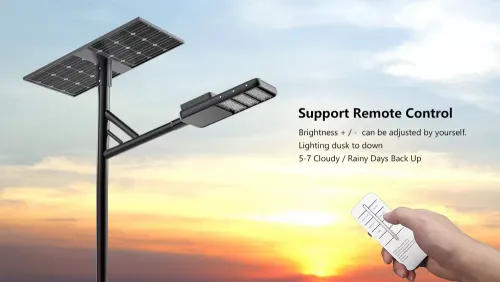

10.With remote control,use UAV technology,can penetrate walls, remote control distance up to 30 meters.
solar led street light Lighting Mode:
3hrs 100% brightness+2hrs 80% brightness+7 hrs 25% brightness
Applications
solar powered led lights can be used in Courtyard/Garden/Park/Street/Roadway/pathway/Parkinglot/Privateroad/Sidewalk/Publicsquare/plaza/Campus/Airfield/Farm & Ranch/Perimeter Security/Wildlife area/Remote Area/Military Base.
Packaging
40W solar led street light Packing:
LED Lamp Packing Size:605*300*115MM
Q'ty/ctn:1Set
G.W:5.2KG
Solar Panel Packing Size:750*580*80MM
Q'ty/ctn:1Set
G.W:6.3KG
Packs Containers:
20GP:510Sets
40GP:1035Sets
40HP:1235Sets
FAQ
Q:How do we install the solar street light system?
A:We can provide the installation manual and video, and we also can arrange our technology engineer to help, but customers should afford the charge.
Q:How does LED light compare to other types of light?
A:Good LED lights deliver truer white light for improved visibility and color rendering. Unlike sodium vapor lamps, they won't turn everything orange. Colors look more natural under LED lights. LED lights have been developed to fit the most commonly used roadway, outdoor and street.
Q:If we don't know choose which system, could you design a suitable system for us?
A:Yes, according to your situation our engineer will design a project for you, giving you the professional advice.
Q:What is MOQ of the solar street light system?
A:The MOQ of the solar street light system is 10 sets.
Q:What is the warranty for the solar street light?
A:For the solar street light, we offer 2 years warranty for free, after the warranty we require the cost of maintenance.
Q:What is the terms of payment?
A:T/T, L/C,western union, paypal, trade assurance or cash; 30% for deposit, the balance 70% before shipment.
Q:What is the delivery time?
A:25 work days after receiving the payment.
