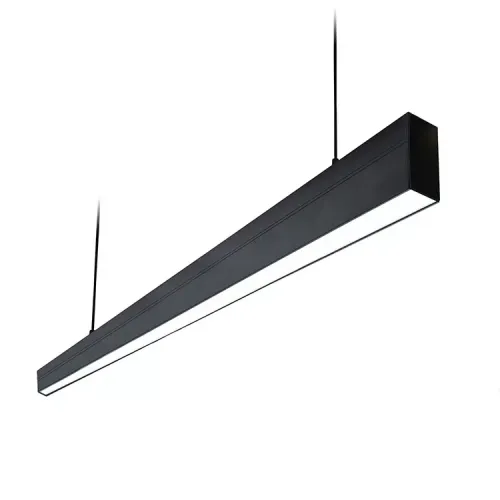

Suspended 1200MM Metal Aluminum 40W LED Linear Pendant Light For Office

Modern Office LED Linear Light Aluminum Pendant Lighting
  • Spec:
    L1200*W35*H75mm
    AC 90-277V
    Aluminum+PMMA
    20W 40W 60W 80W
    Up Or Down / Up And Down
    Black / White / Silver
Description
Description

Suspended 1200MM Metal Aluminum 40W LED Linear Pendant Light For Office

industrial linear light systems,led linear,led linear ceiling light,led linear highbay light,led linear light aluminium housing,led linear light emergency,led linear light housing,led linear light recessed,led linear light system,led linear lighting fixture,led linear pendant light,led linear trunking light,led recessed linear inground light,linear actuator light,linear led inground light,linear led project light lamp



Features

linear led light fixture



Integrated aluminum shell, the design is simple and generous.
With an elegant presentation our lights fully shows workplace characterstic--formal and lively,efficient and flexible .
High quality thick aluminium material,perfect hear dissipation and longer lifespan


Built in wiring holes,built-in power supply, no need to worry about where you put the power supply and wire.
This design is more secure, design is also very simple and generous.




We use High quality beads SMD2835, Closely arranged ,high brightness, low luminous decay.
We use the diffusion plate, the light effect is uniform, the diffusion rate is high.





Specification

led linear pendant light





Power 20W 40W 60W 80W
Length 600MM 1200MM 1800MM 2400MM
Size 5065/3570/7575
Luminous Efficiency 110LM/W 110LM/W 110LM/W 110LM/W
Luminous Flux 2200LM 4400LM 6600LM 8800LM
CCT 3000-3500K/4000-4500K/5000-5500K/6000-6500K Optional
LED Chip Brand NICHIA/CREE/EPISTAR/NATIONSTAR/SAMSUNG Optional
Other Function Dimming/Sensor/Zigbee Optional



Details

linear led light fixtures


High quality Linkable LED linear light for office/Architectural/school/display centers/ shops/stores.
It contributes to comfortable, healthy workplaces by lighting the task, face and space.
Producing soft light with invisible LEDs.
Suitable for dry/damp location.
Materials: 6030 aluminum profile+PC cover


Size: 600mm(L)*55mm(W)*70mm(H) 2ft
Power: 20W
Lumens: 110lm/w
Input voltage: 100-270VAC
LED driver: internal flicker free
LED type: SMD2835
Color temperature: 2700K 3000K 3500K 4000K 5000K


Installation: Surface-mounted/Suspended with hanging cable.
Lights can be joined together in a seamless continuously line but can not do continuously running electrically.



Construction
Die formed, 22 gauge, cold rolled steel designed for high strength.End caps snap in for easy installation and maintenance.
In addition, the end cap can be used as a joint aligner for continuous row mounting.


Light Source
Using the energy-saving highlighting 2835 SMD LED light source.

Distributed LED array in a variety of lumen output packages.

LED color is available in 2700-6500K. Module is replaceable.


Mounting
Luminaires may be surface mounted or suspended, individually or in continuous row. Fixtures easily snap
together for long continuous rows.


Driver
Using isolation constant-current drive power, is the guarantee of security, stability and no flicking.







Applications

LED linear lighting can be Use in Airport, Bathroom, Bathroom Room, Bedroom, Car Park, Church, Cinema, Gallery, Garage Hospital, Hotel, Kitchen, Meeting Room, Museum, Office, Restaurant, School, Shopping Mall, Sitting Room.








Installation

Seamless and linkable.
1. Suspened wire
2. Ceiling mounted
3. wall mounted
4. Recessed




Packaging

LED Linear Lighting Standard export packaging or customized according to customer requirements
