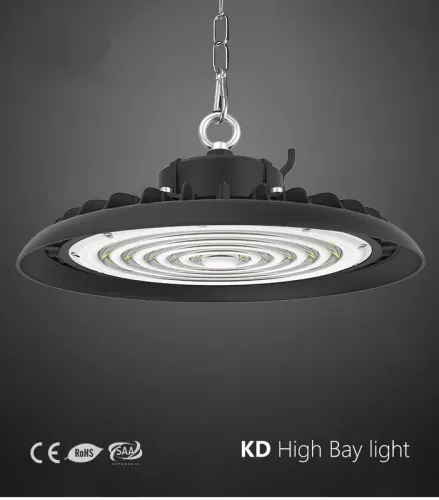

Warehouse / Factory industrial lighting 100w 150w 200w LED High Bay Light Lifud driver 5 Years Warranty for warehouse
G17 UFO led high bay light series industrial and mining lamp has very outstanding performance in the heat dissipation structure, optical design, appearance design, material selection and technology.
G17 UFO led high bay light series industrial and mining lamp widely used in factory, workshop, warehouse, exhibition hall, gymnasium, waiting room, station, mall, outdoor building etc. indoor or outdoor places. To create stable and high-quality light environment for indoor and outdoor places.
led ufo high bay light
Features
1. Made of 1070 Pure Al. for maximun thermal transfer; far more efficient than Al. Alloy material Die Casting;
2. Adopt Cold-forging craft, better than Die Casting craft;
3. Anodized surface finishing, color never fading, more
durable than painting process;
4. Self-moulding, offer you the best price;
5. Achieved higher wattage by slim size, easy installation;
6. Motion/Daylight sensor, Zigbee wireless control optional;
7. Aluminum Cover/PMMA cover for option;
8. Al. cover beam angle 45°, 90°, 120°, 10pcs /carton;
9. Choose 150lm/w 3030 LED and dimmable MW driver;
10. For indoor and outdoor IP65 protection;
Specifications
led ufo high bay light
| Power | 100W | 150W | 200W |
| Size | Ø258*149 MM | Ø299*154 MM | Ø347*159 MM |
| Package | 270*270*130 MM | 305*305*140 MM | 355*355*145 MM |
| Match the light source | 13000LM | 19500LM | 26000LM |
| Light Source | SMD | ||
| Input Voltage | AC220-240V | ||
| Material | Aluminum+PC | ||
| Beam angle | 60° ,90°,120° | ||
| IP Rating | IP65 | ||
| CCT | 3000K/4000K/6000K | ||
| CRI | Ra>70 | ||
| Protection Class | Class Ⅰ | ||
| Application | warehouse,carport,workshop,petrol station .etc | ||
| Warranty | 5 years | ||
Details
led ufo high bay light

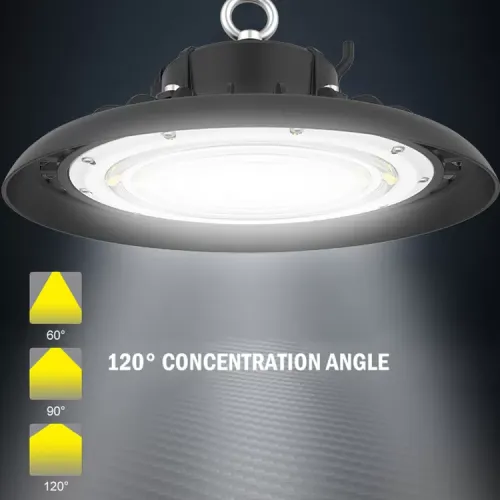

Different lens for option:
1. Flat tempered glass cover, with 120° beam angle;
2. Matt/Clear PC Lens, with 120° beam angle;
3. PC LENs with 60°, 90° beam angle;
Installation: Loop Hanging/Ceiling/Wall Mounting
Compared with traditional lamps and normal LED UFO highbay light,
the slim UFO highbay is an ideal replacement to save more energy:
100W,160W, 200W, 240W are equivalent to 250W, 400W and 700W HID or HPS.
Slim sizes make it easy to be handled during transportation and installation.
It's a new trend in LED UFO highbay light market. Your choice of the
cold-forged UFO will make you outstanding among the competitors.
Application
led ufo high bay light Widely used for Factories, workshops, gyms, warehouse, siaport, sport fied, toll stations, gas stations, stadiums, big supermarket, exhibition hall, commercial building, stadium hall, parking building etc
Packaging
Packing Material: Neutral packing with strong corrugated paper cartons, in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS
Our factory
SMT
TECHNICAL SUPPORT
Longsun has introduced the advanced SMT surface assembly technology. The volume and weight of components using SMT technology is only about one-tenth of traditional plug-in components, and the end product has strong anti-vibration ability and high-frequency characteristics, which can effectively reduce electromagnetic and radio frequency interference.
PRECISION
PRODUCTION EQUIPMENT
All electronic products of Longsun must go through strict equipment testing before export. All components have passed GB /T10592 High and low temperature experimental technical conditions The national standard high and low temperature alternating damp heat test box is tested and then put into use
We have obtained
CUL, DLC, CE, RoHS, ISO9001 certificates
Selling well in all cities and provinces around China, our products are also exported to clients in US, Canada, Europe, Australia etc. Located in Shenzhen, with the big convenience of transport access, Long Sun provides you all kinds of fast delivery plan. We also established warehouse in US and CA which can offer high efficient delivery with lower shipping cost.
