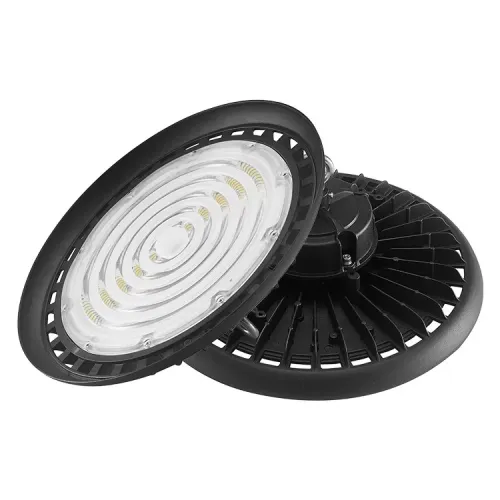

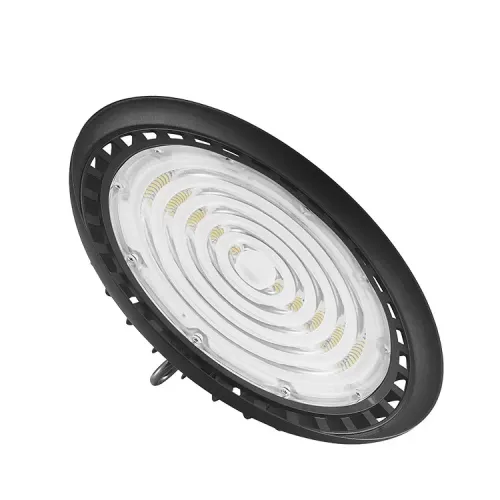

Warehouse Aluminium IP65 SMD 100W 150W 200W Lighting Lamp UFO LED Linear High Bay Light

100W 150W 200W Lighting Lamp UFO LED Linear High Bay Light
  • Product:
    UFO LED Linear High Bay Light
Description
Description

Warehouse Aluminium IP65 SMD 100W 150W 200W Lighting Lamp UFO LED Linear High Bay Light



MINSENS was focusing on LED high Bay Lights over 10 years. This UFO High Bay LED Lamp is one of their main dishes. It available in Linear, non-isolated or Isolated solution with LEDs into the 50W, 80W, 100W, 120W, 150W, 200W or 250W lamp housing to service every customers.
Enjoy the ideal brightness and good heat dissipation with the die casting aluminum and the finned shape design. This 50W, 80W, 100W, 120W, 150W, 200W, 250W watt LED high bay lamp is perfect for warehouses, supermarkets, gyms, retail spaces, manufacturing facilities, etc. In view of the combination of die casting aluminum housing with high tech heat sink ensures an excellent heat dissipation, protecting the LED Beads and LED Driver, expanding the usage time. It can be used in outdoor and indoor. No need fear the weather at all, not only raining or storm, but thundering or lightning as well.

Features



led ufo high bay light







Features



1, Heat pipe-Riveting and massive fine colling technology
2, Sosen driver
3, 2835 SMD chip,super bright up to 130lm/w
4, 5 Years warranty
5, Beam angle: 120°
6, Available voltage:120-277V AC 220-240V AC
7, Friendly environment and energy saving
8,ETL cETL CE RoHS
9,Warranty 5 Years



Specifications


led ufo high bay light



Model.
HB-100G
HB-150G
HB-200G
HB-240G
Powel
100W
150W
200W
240W
Efficacy
130lm/w
130lm/w
130lm/w
130lm/w
Lumens output
13000lm
19500lm
26000lm
31200lm
Fixture Weight
2.5Kg(5.5lb)
2.5Kg(5.5lb)
3.5Kg(7.7lb)
3.5Kg(7.7lb)
CCT
3000K, 4000K, 5000K,5700K
3000K, 4000K, 5000K,5700K
3000K, 4000K, 5000K,5700K
3000K, 4000K, 5000K,5700K
CRI
70+ or 80+
70+ or 80+
70+ or 80+
70+ or 80+
Beam Angle
60°, 90°,120°
60°, 90°,120°
60°, 90°,120°
60°, 90°,120°
Input Voltage
100-277Vac
100-277Vac
100-277Vac
100-277Vac

PF
>0.95
>0.95
>0.95
>0.95
IP Rating
IP65
IP65
IP65
IP65
Lifespan(>70)
>100,000 Hours
>100,000 Hours
>100,000 Hours
>100,000 Hours




Details



led ufo high bay light


Placed 2PCS of high Lm flux chips what made by San'an, Epistar, Bridgelux, Cree and so on, into each SMD 3030 LED Bead. LM79/ LM80 listed, very low luminous decay. High CRI performance and high Lumen efficacy, available in White CCT 3000K to 8000K. With high thermal conductivity, ideal for different locations.


Optical Lenses
High transparent PC optical lenses make the light in different viewing angle. 60°, 90° or 120° is possible. Ideal for different location.
Radiator
High quality aviation-made of Aluminum, ADC12 through stamping, oil pressure, spinning and other processes integration innovation, efficient, economical lamp body, the body of lamp is lighter, corrosion resistance, color fastness, durability and better heat dissipation performance.


End Caps
304# stainless steel type end caps. Not only waterproof and dust proof, but corrosion resistance and durability as well.
Power Supplier
There are so many solutions about the power supplier for D.I.Y. Such as Linear, Non-isolated or Isolated, low PF or high PF, and so on.
It is possible to change the wires. Such as the length or wires and plug.
The Drivers what manufactured by 'MeanWell', 'MOSO' etc. are possible if you want.


Iron Hook
Rough iron hook, very solid and safe, not easy to loose. More assured.








Application

led ufo high bay light Widely used for Factories, workshops, gyms, warehouse, siaport, sport fied, toll stations, gas stations, stadiums, big supermarket, exhibition hall, commercial building, stadium hall, parking building etc



Packaging

Packing Material:Neutral packing with strong corrugated paper cartons, in order to withstand rough hadling under normal conditions.
QTY/CTN:1 PCS




Our factory





SMT
TECHNICAL SUPPORT
Longsun has introduced the advanced SMT surface assembly technology. The volume and weight of components using SMT technology is only about one-tenth of traditional plug-in components, and the end product has strong anti-vibration ability and high-frequency characteristics, which can effectively reduce electromagnetic and radio frequency interference.

PRECISION
PRODUCTION EQUIPMENT
All electronic products of Longsun must go through strict equipment testing before export. All components have passed GB /T10592 High and low temperature experimental technical conditions The national standard high and low temperature alternating damp heat test box is tested and then put into use


We have obtained
CUL, DLC, CE, RoHS, ISO9001 certificates
Selling well in all cities and provinces around China, our products are also exported to clients in US, Canada, Europe, Australia etc. Located in Shenzhen, with the big convenience of transport access, Long Sun provides you all kinds of fast delivery plan. We also established warehouse in US and CA which can offer high efficient delivery with lower shipping cost.
