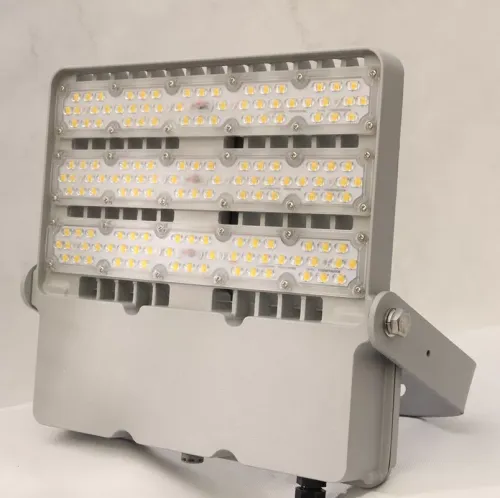

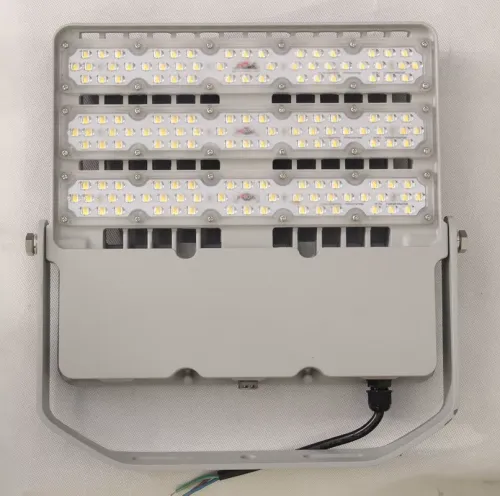

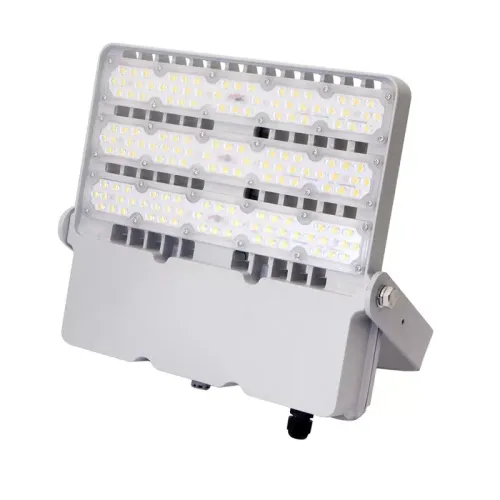

Waterproof Aluminium High Mast Court Field Square 400W LED Flood Light

High Mast Court Field Square 400W LED Flood Light
  • Specification:
    Lamp Power: 100W 150W 200W 300W 400W
    Input Voltage(V): 90-265VAC
    Luminous Efficiency: 120LM/W
    LED Source: 5050 OSRAM
    Driver: MEANWELL Driver Or SOSEN
    Certifications: ETL TUV SAA DLC
Description
Description

Waterproof Aluminium High Mast Court Field Square 400W LED Flood Light



Description

LED has proved to be the trand of next generation lighting for its environmrnt-friendly,energy-saving,light efficiency,reliablity. MINSENS innovation LED lightings lifespan ,thus remarkable reduce the expence of lighting operation and maintance.



Features



By using the most powerful and efficienct flood light heat sink ,the completed LED light can work up to 30000 hours,save 80% energy ,have better lighting characteristics than that of traditional metal halide lamp 1000w.
Reveting the heatpipe to the hetesink rapidly transfere the heat of the led chips to the massive fins
Protection rate:IP65

All imported light source, High quality lanthanide three primary colors lamp, with high light efficiency and low decline. No stroboflash. It can protect your vision and prevent you from myopia

The light with high luminous efficiency/energy-saving/good heat sinking panel/excellent color rendering and the power factor>0.95. Constant current, constant voltage.

Use high quality Cold-Roll Steel Sheet, The surface dealed with phosphating, then Electrostatic Spray. It looks more beautiful and durable. Super penetrator, Soft and even light, no ultraviolet and infra-red radiation.

Unique adjustable beam angle that ensure wide lighting area, high brightness.

Perfect seal the bottom and the surface, waterproof and dustproof.

This light produces no UV and IR radiation. Hence it is harmless to human health and eyes. Meanwhile It is completely Green product. Eco-friendly.

Good Chip, Power supply. High lumens. High intensity and brightness. Long lifespan. We can support you 3-5 Years warranty.




Specification

led industrial flood lights



Power(w) 100W 150W 200W 300W 400W
Lumens(lm) 12000LM-48000LM
Size(mm) 695*435*65mm(400W)
IP Rating IP65
Lamp Efficiency(lm/w) 120LM/W
Certification RoHS SAA UL CE SGS
Color temperature(k) 2700~6500
Working Lifetime(hour) 50000
Working Temperature(℃) -20~50
CRI(Ra>) 80
Brand Name MINSENS
Frequency 50~60HZ
Lamp body material aluminium alloy





Details




Integrated module and professional lens optics design
Professional fin-plate thermal design, pass through the thermal simulation
Entire light weight structure design
2 degree dip angled backside structure design to avoid dust accumulation
Scientific layout and photoelectricity separation design
With protective vent to avoid led chips overtemperatured
Specialized vibration resistance components and ingress protection design
World renowned brand led chips and power driver
Self-design (optics, electricity, thermal, structure, mould)
Bi-direction 350 degree adjustable mounting bracket
With safety chain to improve the safety protection capacity



Material and process



1. Tempered glass panel to protect the lighting source, the transparent rate up to 93%

2. High quality luminium heatsink with zipped-fins technology airflow dust inside the housing

3. The entir housing coated by electrophoretic pait,excellent corrosion resistence.

4. Stainless steel screws and parts





Installation



Secure the light on a smooth surface which has enough strength with m12 screws, it a must to equip with anti-off nuts.
Fix the safety chain at the appropriate place where has enough mechanical strength
Correctly connect the lead wire to l, n, pe of the power supply
Power it on to work





Applications

Pole mounted led flood lights widely apply to stadium,sport ground,seaport, golf course,football court and other field.










Packaging


1 unit per Neutral packing box

Standard export packaging
