Waterproof Ip65 30w 60w 120w Integrated Solar Led Street Light With Separated Solar Panel
Product Description
ZC type solar powered led outdoor lights, 30W 40W 50W 60W 80W 100W 120W available, Independent solar panels are different from integrated solar street lights. Its solar panel is larger and charges faster.
Features
1. Innovative split structural design, with good heat dissipation performance.
2. Adjustable LED module angle , satisfying various road lighting needs.
3. Brand new A+ class LifePO4 battery with large capacity, support 10 days working after fully charging.
4. Adopting imported high-brightness Bridgelux led chips
Specifications
Solar powered led lights
Model
|
ZC-120W
|
Brightness
|
20400 lm
|
Solar panel
|
18V 170W imported high efficiency monocrystalline silicon solar panel
|
Dicharging time
|
over 3 nights
|
Battery type
|
12.8V 60AH powerful LifePO4 battery
|
Working temperature
|
-25°C~+65°C
|
LED source
|
3030 Bridgelux High Efficincy LED Chip
|

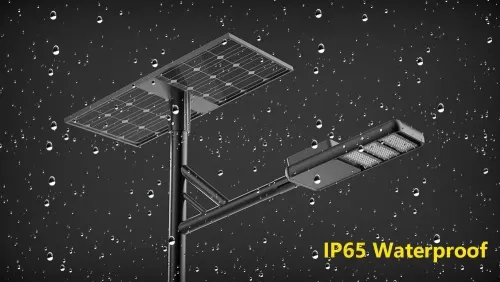

IP grade
|
IP65
|
Colour temperature
|
2700-6500 K
|
Mount height
|
10m-12m
|
Carton size for lamp
|
845*280*100mm
|
Carton size for solar panel
|
1490*730*80MM
|
G.W. of the lamp
|
9.6KG
|
G.W. of the solar panel
|
15.8KG
|
Sensor Type
|
No sensor(Customized is available)
|
with remote control or not
|
yes
|
Application
|
Courtyard/Garden/Park/Street/Roadway/pathway/Parkinglot/Privateroad/Sidewalk/Publicsquare/plaza/Campus/Airfield/Farm & Ranch/Perimeter Security/Wildlife area/Remote Area/Military Base
|
||
Lighting mode
|
Dusk to dawn + Time controll + radar sensor(Bright lighting 30secs when people move through the light)+4modes available by Remoter
|
Details
Solar powered led outdoor lights

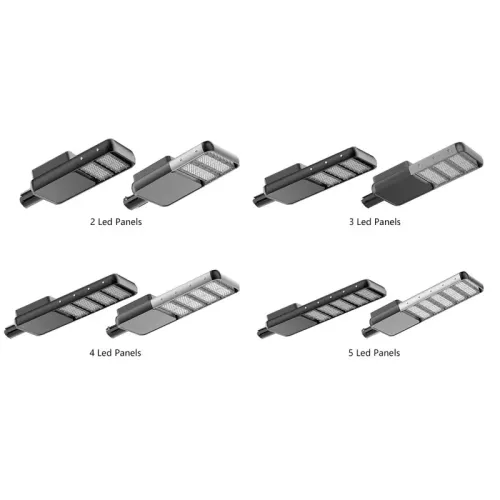

1. LED lamp
The heat sink is designed to be out in the air to dissipate heat quickly
Frosted toughened glass, no glare light.
All-in-one structure, waterproof and dust-proof.
Individual LED: 1LED with 1 heat sink, fast heat dissipation makes it over 50,000 hours long life time.
Sleeve adaptor, no need to open the light fixture when installation.
2. Solar panel
3 years’warranty, no less than 90% of standard output power is within 10 years, 80% of standard output power is within 25 years.
high efficiency polycrystalline and adding Aluminum Frame, Tempered Glass.
3. lithium battery
high efficiency polycrystalline andAdding Aluminum Frame, Tempered Glass.
4. Controller
Short-circuit Protection: Once the load is short-circuiting connected, the controller will shut itself off to protect the solar system from damage.
Reverse Discharging Protection: It prevents the battery from discharging to solar panel. effective dust-proof and water-proof
Applications
solar powered led lights widely used in Courtyard/Garden/Park/Street/Roadway/pathway/Parkinglot/Privateroad/Sidewalk/Publicsquare/plaza/Campus/Airfield/Farm & Ranch/Perimeter Security/Wildlife area/Remote Area/Military Base
Packaging
Standard export packaging or customized according to customer requirements
FAQ
Q:How do we install the solar street light system?
A:We can provide the installation manual and video, and we also can arrange our technology engineer to help, but customers should afford the charge.
Q:How does LED light compare to other types of light?
A:Good LED lights deliver truer white light for improved visibility and color rendering. Unlike sodium vapor lamps, they won't turn everything orange. Colors look more natural under LED lights. LED lights have been developed to fit the most commonly used roadway, outdoor and street.
Q:If we don't know choose which system, could you design a suitable system for us?
A:Yes, according to your situation our engineer will design a project for you, giving you the professional advice.
Q:What is MOQ of the solar street light system?
A:The MOQ of the solar street light system is 10 sets.
Q:What is the warranty for the solar street light?
A:For the solar street light, we offer 2 years warranty for free, after the warranty we require the cost of maintenance.
Q:What is the terms of payment?
A:T/T, L/C,western union, paypal, trade assurance or cash; 30% for deposit, the balance 70% before shipment.
Q:What is the delivery time?
A:25 work days after receiving the payment.
