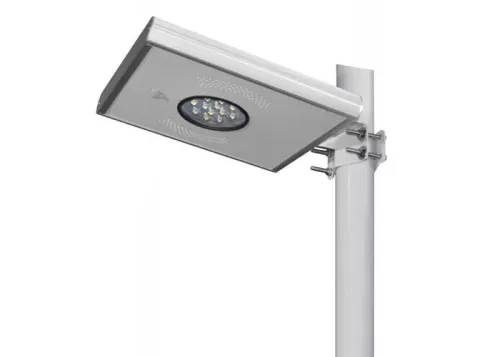

Wireless IP65 Integrated Solar Powered LED Street Lights Outdoor System With Lithium Battery
Backup
1.“All in One solar steer light ” is more energy saving and save money. please select the suitable model according to the local sunshine radiation and the annual total radiation. We suggest use the both AC and DC charging model in those places where lack of sunshine or have long-time rainy days.
2.“All in One solar street light” adopts the long life Lithium battery for storing energy, charging temperature at day time is between: 0℃~+60℃, when temperature goes lower than 0℃, the control system will stop automatically to protect the battery, and it will revive to charge the battery while temperature goes higher than 0℃. Discharging temperature at night is between: -20℃~+60℃, any ambient beyond will take damage to the battery. So please check these factors while selecting the street light.
3.Battery of the “All in One solar street light” can be stored for 6 months long after fully charged.Therefore please examine and charge it periodically after long time transportation or storage to prevent damaging.
4.When install the lights in Northern Hemisphere, please adjust the solar panel to the South as much as possible to collect maximum sunshine radiation, while install them in Southern Hemisphere, By the same token, keep solar panel to north. At the same time please keep it away form any shadow of houses, trees etc.
5.Keep clear of the surface of the All in One solar street light with normal detergent to get maximum power generation, clear the dust or tree leaves or any grease.
6.All in One solar street light have got the standard of IP65. The vents on the surface is designed for radiating. The materials are made of aluminum alloy which can survive in the environment of seaside and desert.
7.The knob of the fuse is at the left rear end of the light, please insert the fuse while using. By the way, there is one piece of fuse more as backup(If not fuse, then it is switch, just turn the switch)
Features
1. Clean energy, protect the environment, healthy life
2. No need electricity, charge under the sun at the day, lighting automatically at night, saving money
3. All in one design, easy to install, save labor
4. Three working modes for you to choose from, you can choose according to your requirement, different application places
5. Colorful, there are more than 4 colors for your choice
6. Variety of installations, applicable to various places
7. Can accept small sample order
8. Can accept OEM and ODM order
Specifications
| Type | MS-SL12W |
| Lamp power | 12W |
| Solar panel | 50W/5V |
| Ternary lithium battery | 18v 20w(high efficiency monocrystalline silicon) |
| LED sources | Everlight from Taiwan with high brightness |
| Luminous flux | 1200-1320lm |
| Charge time(full sunlight) | 5-6 hours(by sun) |
| LED chip | Everlight |
| Color temperature | 3000-6500K |
| CRI | ≥75Ra |
| Light control voltage | 1V |
| Light distribution | Bat wing with polarized light |
| Lighting time | 10 hours(full power) |
| Sensor distance | 5-10m |
| Sensor time | 20-30s |
| Working temperature | -20℃~60℃ |
| Lifetime | ≥50000hours |
| Material | Aluminum alloy |
| Pole top diameter | 60mm |
| Mounting height | 5-6m |
| Installation spacing | 10-30m |
Details
Applications
Widely used in the branch road,street,and factory road,park road,rural,mountainous,farms and remote area lighting project, courtyard,schools,square and other outdoor lighting places.
Packaging
Standard export packaging or customized according to customer requirements
